FEATURES
Frequency Range: 25 MHz – 3 GHz
Gain: 2 dBi – 3.5 dBi
Max Power Rating: 144 MHz up: 200 watts
6m: 20 watts FM, 50 watts PEP

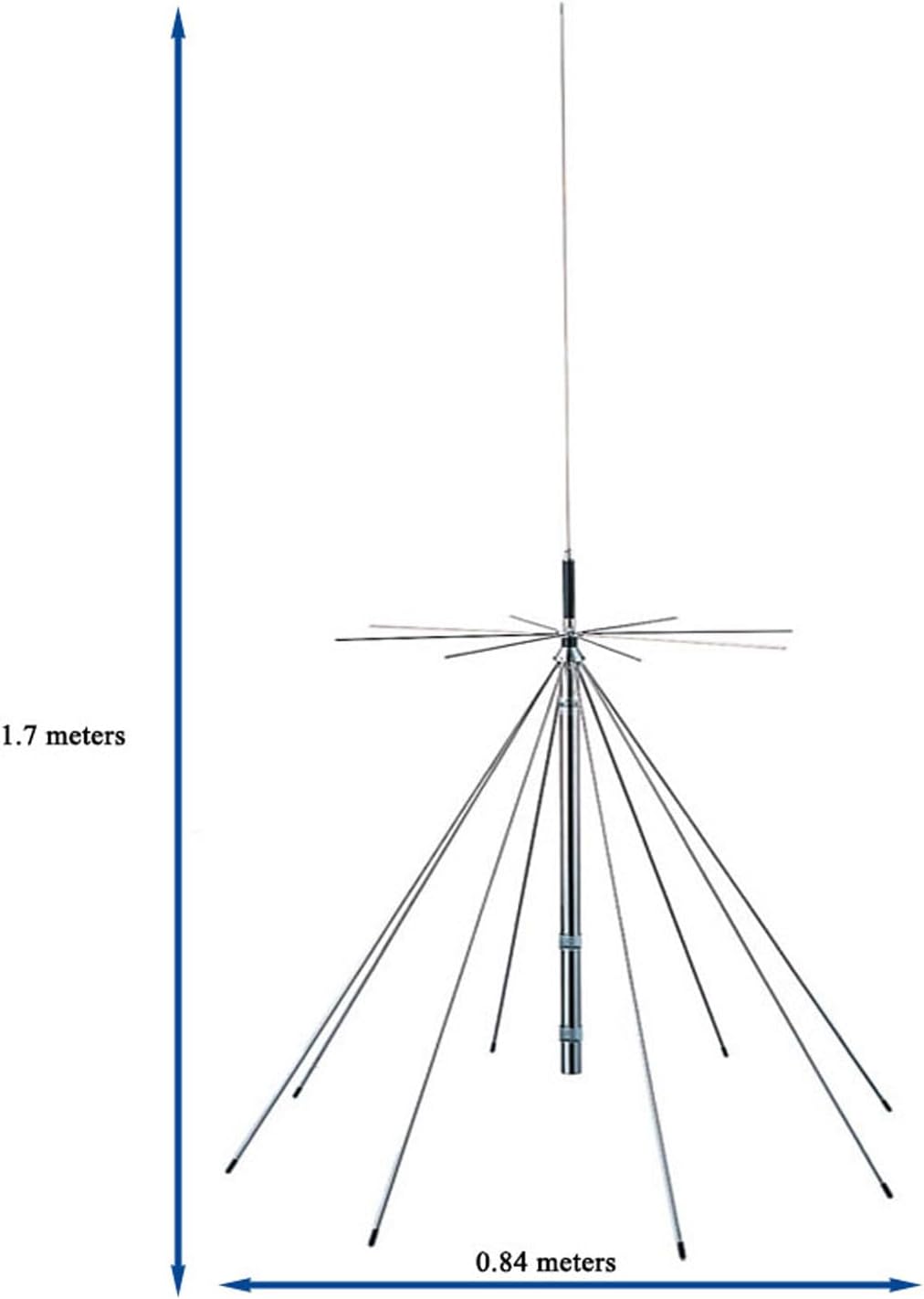

Length: 1.7 m
Weight: 1 kg
DESCRIPTION
The Discone Antenna (25 to 3000 MHz) are ultra wideband antennas support ham amateur radio, two-way radio, air traffic control SDR programs, CB radio and various frequency bands-MW/ SW/ HF/ CB/ AIR/ UHF/ VHF/ FM/ FRS/GMRS/1090MHz/978MHz/ 27MHz.
The Discone Antenna is a multi-band antenna that features a unique design with three conical discs connected by a central shaft. This design allows for a wide frequency range while maintaining a compact and lightweight construction. The antenna is made of high-quality materials and is built to last, with a durable construction that can withstand harsh outdoor environments. It’s ideal for transmitting on 2-meters, 220, 70-centimeters, 33-centimeters, and the 23 centimeter amateur bands, so you can pump up to 200 watts into this antenna! Because of the tunable 6-meter loading coil, the power rating on 6-meters is 20 watts FM or 50 watts PEP.
The Discone Antenna is easy to install and use. It comes with a mounting bracket and all necessary hardware for mounting on a variety of surfaces, including rooftops, poles, and buildings. The antenna is also adjustable, allowing
you to fine-tune your reception and transmission for optimal performance.
In summary,this antenna is a great choice for anyone who needs reliable reception and transmission in a variety of bands. Wideband Omnidirectional Discone Antenna
SPECIFICATIONS
Frequency Range: 25 MHz – 3 GHz
Gain: 2 dBi – 3.5 dBi
Max Power Rating: 144 MHz up: 200 watts
6m: 20 watts FM, 50 watts PEP
Length: 1.7 m
Weight: 1 kg
All specifications are subject to change without notice. All values are typical, unless specified.

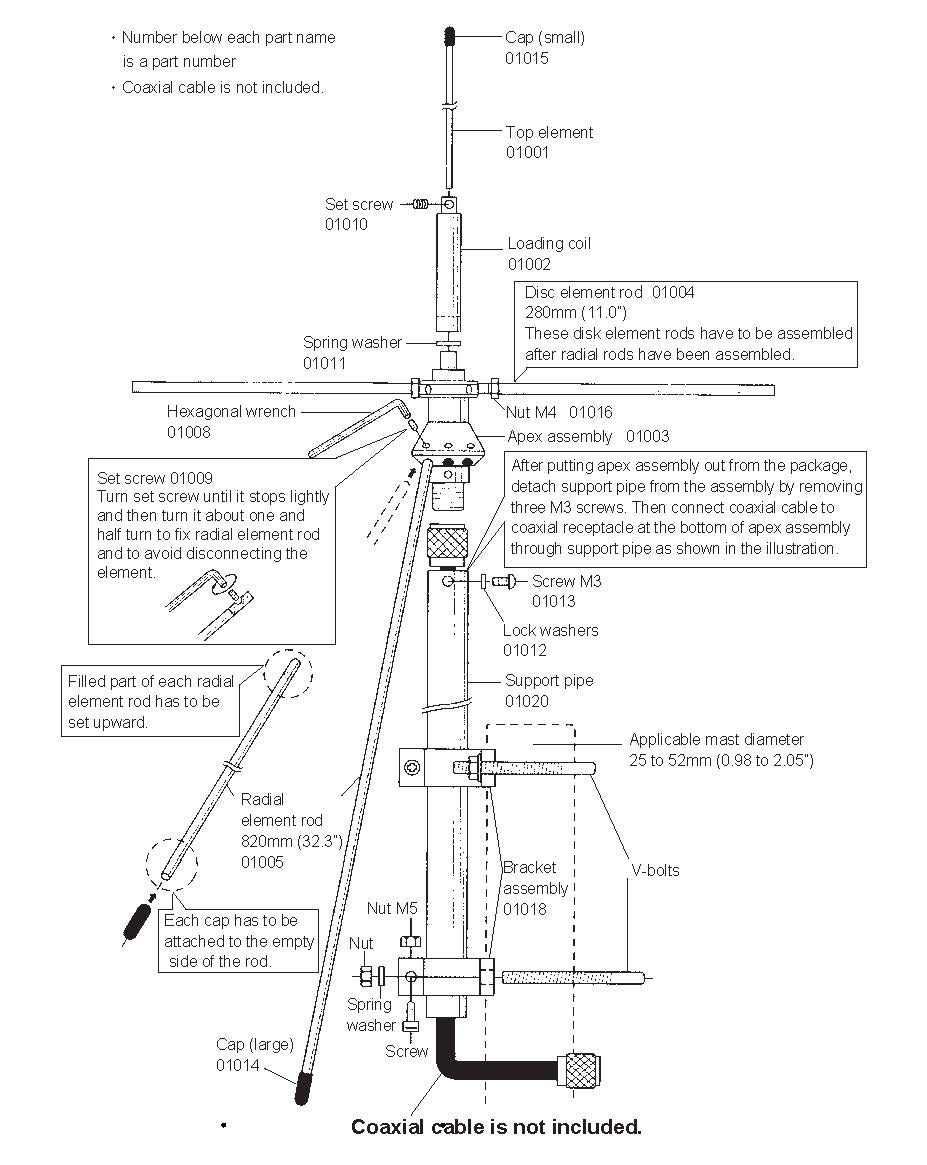

ASSEMBLING ANTENNA
