Features
Frequency range: 80 MHz to 1 GHz
Gain: 7.5 dBi (typ.)
VSWR: 1.5:1 (typ.)
Impedance: 50Ω
Connector Type: N-Type, female
SKU: OLP-00810
Categories: Log Periodic Antenna, Standard Log-Period Antenna
$5,200
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
Description

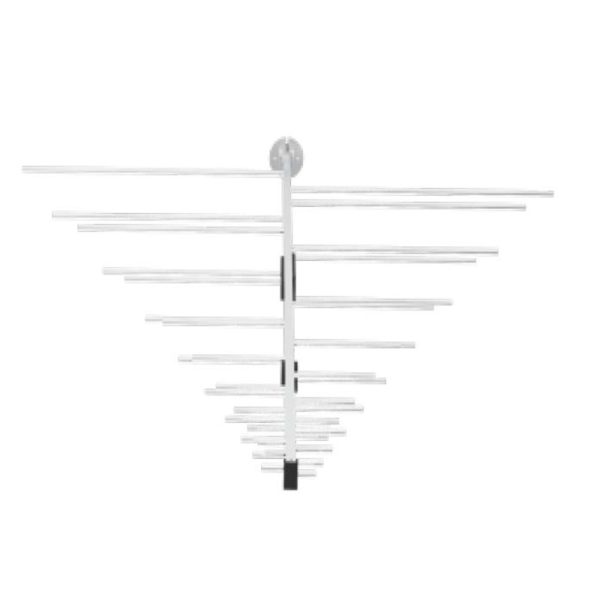

The OLP-00810 is a versatile, high-performance log-periodic antenna featuring excellent broadband characteristics, making it perfectly suited for various application, including measurements, monitoring and transmitting. With its broadband characteristics and virtually frequencyindependent radiation pattern, this antenna can effectively cover an extensive frequency range from 80 MHz to 1GHz. Additionally, its durable construction makes it suitable for both mobile and stationary operations across multiple industries. The power handling of this antenna is 3000Watt with continuous wave.
Features
0.08GHz to 1GHz
Low VSWR
Wide frequency range
Excellent broadband characteristics Sturdy construction for durability
Electrical Specifications
Parameter: Value
Min. Frequency (GHz): 0.08
Max. Frequency (GHz): 1

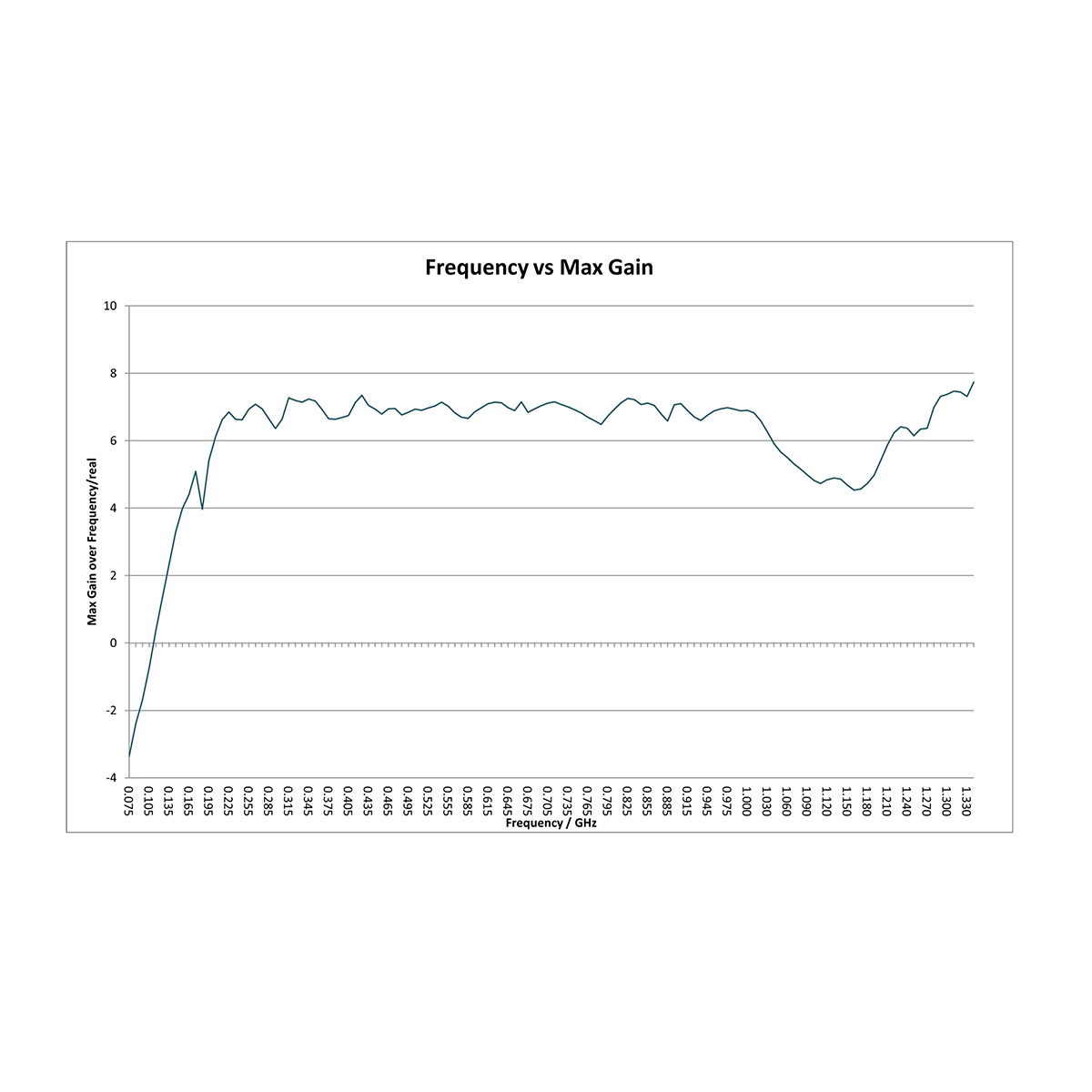

Gain (dBi): 7.5
Connector: N-Type, female

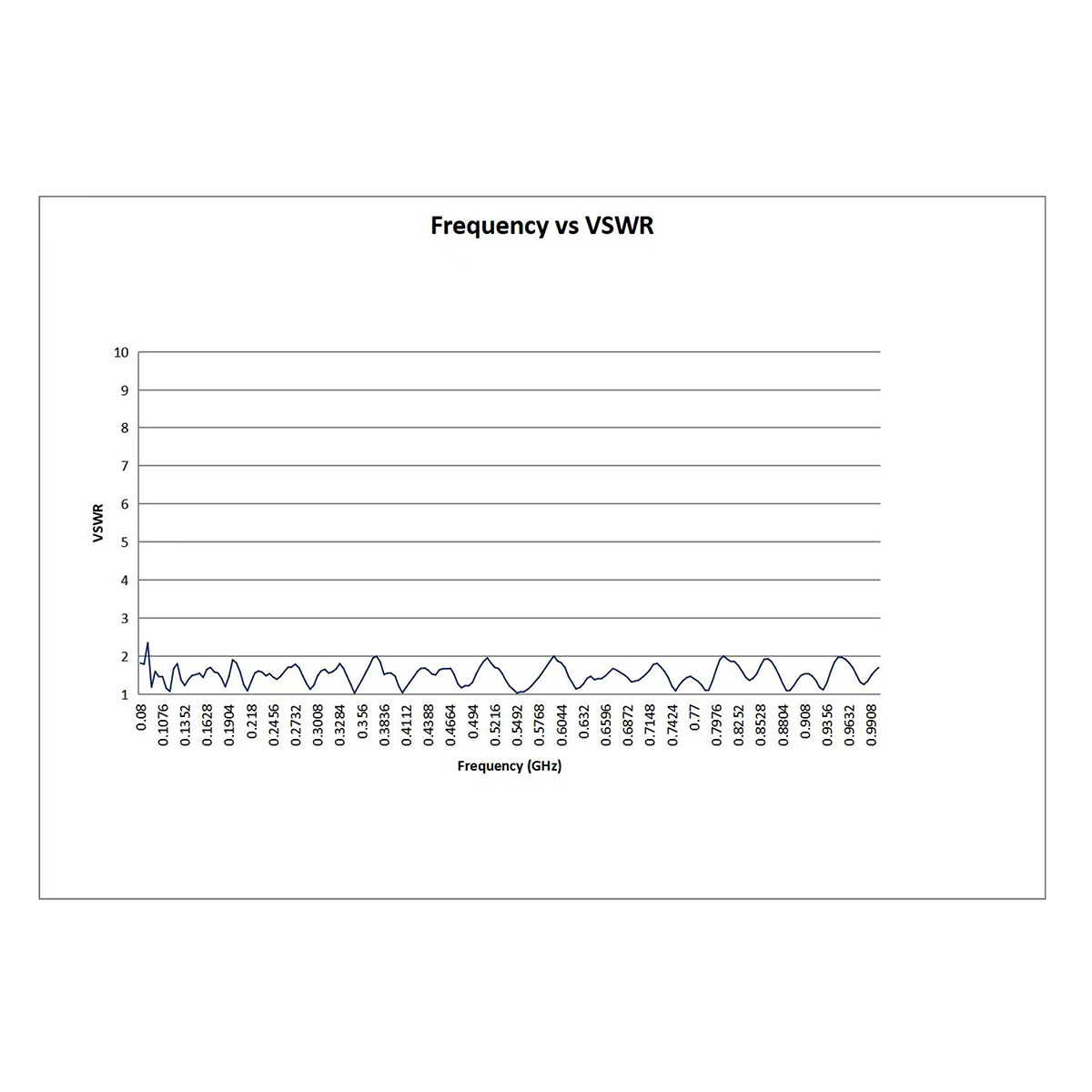

VSWR: 1.5:1Typ.
Impedance (Ohm): 50
Maximum Power handling: 3000 Watt
All specifications are subject to change without notice. All values are typical, unless specified.
Mechanical Specifications
Parameter: Value
Weight: 7.7kg

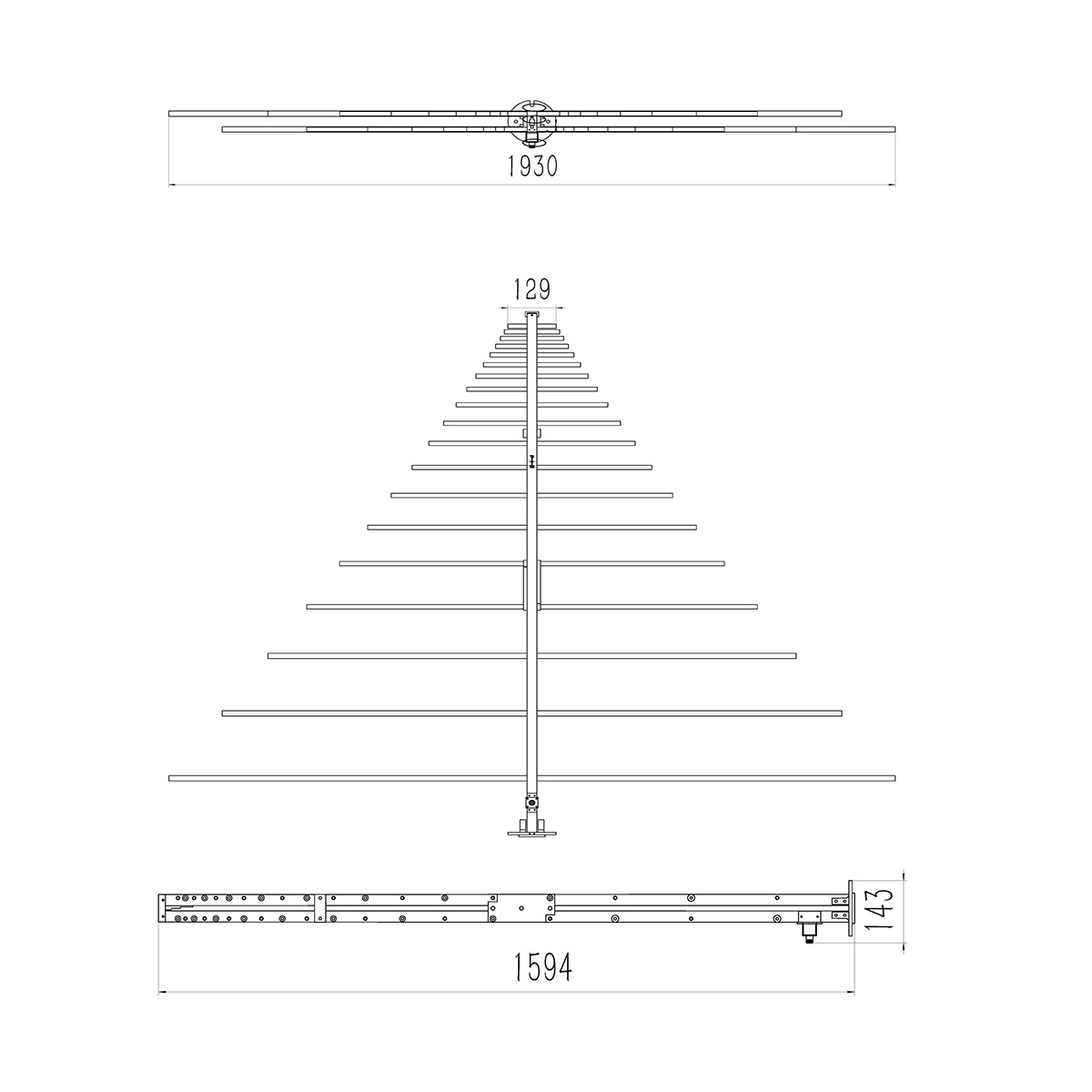

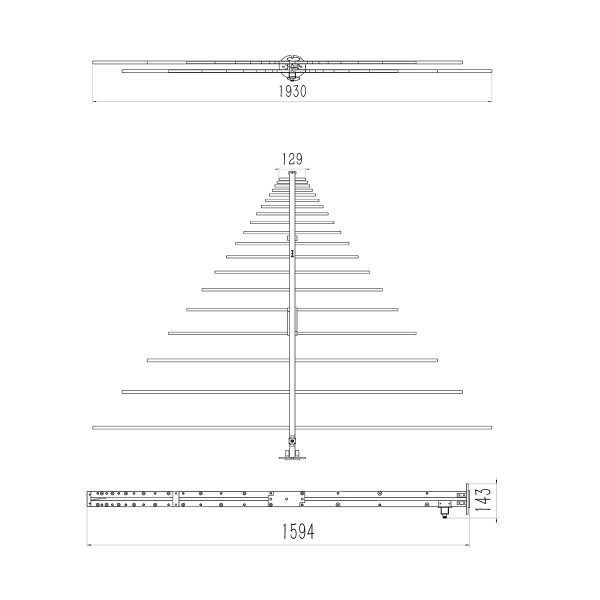

Dimensions: 193 x 14.3 x 159.4cm
Material: Aluminium
