FEATURES
Frequency range: 30 MHz – 6 GHz
Impedance: 50 ohms norminal
VSWR: <2.5:1 above 200 MHz
Connector: Type N female
Polarization: Linear
$7,200
Shipping & Delivery
Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan
(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.
Product Overview

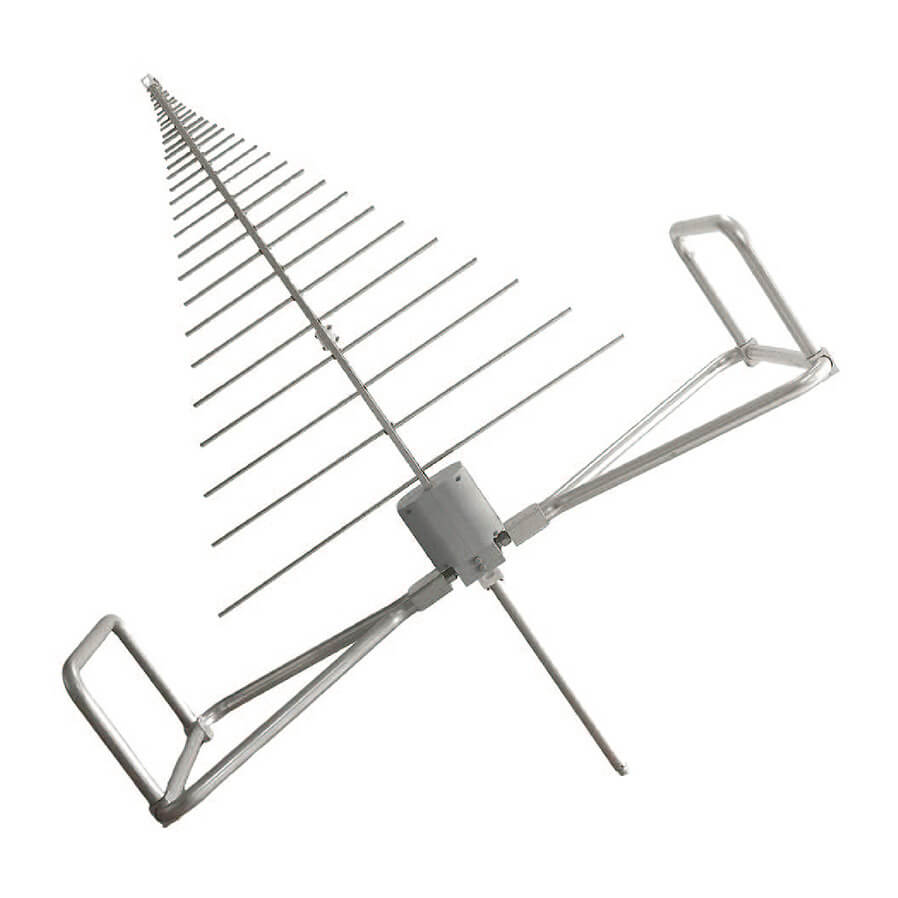

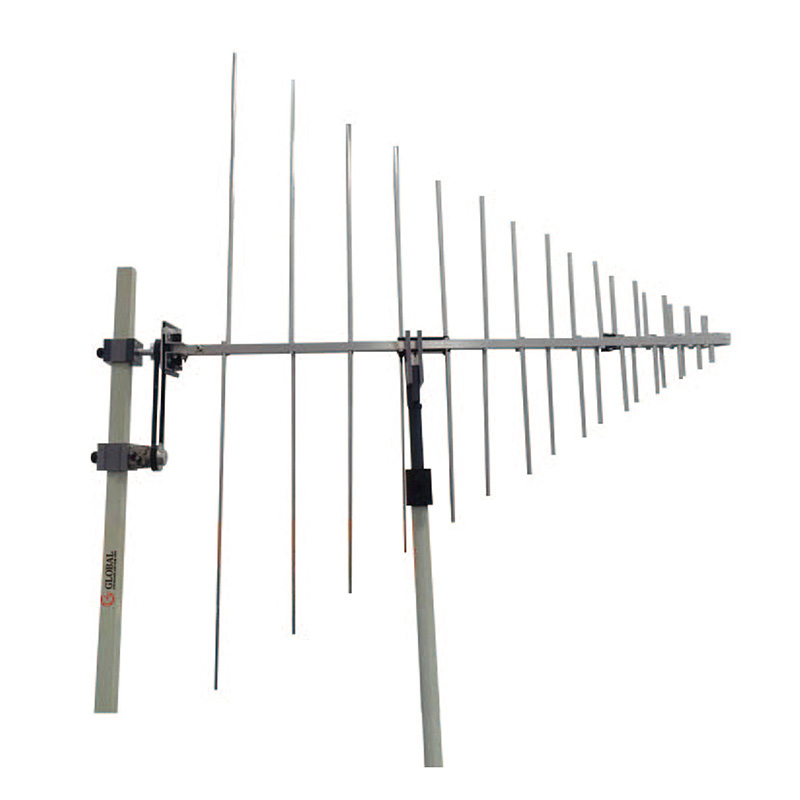

1313-3-30M6G antenna is compact, high-performance instrument designed for EMC emissions and immunity testing. The broadband characteristics of this antennas enable it to operate over a wide frequency range – a must for automated test environments.
1313-3-30M6G antenna is Linear polarized Logarithmic Periodic Broadband Antenna combined with a Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.
Its feedpoint is robust and stable, with excellent cross-polarization performance. The outstanding structural design allows it to accommodate a thicker feed cable, which enhances the antenna’s maximum power rating.
The low-frequency wings are swept forward and turned in at the ends t o reduce ground plane coupling w h i l e maintaining performance. Each wing is attached with dual compression fittings for true alignment.
SPECIFICATIONS
All specifications are subject to change without notice. All values are typical, unless specified.
Frequency range: 30 MHz – 6 GHz
Impedance: 50 ohms norminal
VSWR: <2.5:1 above 200 MHz
Connector: Type N female
Polarization: Linear
Imbalance: Less than 1dB
Length: 126 cm
Wing span: 115 cm
Width: 45 cm
Weight: 5.9 kg

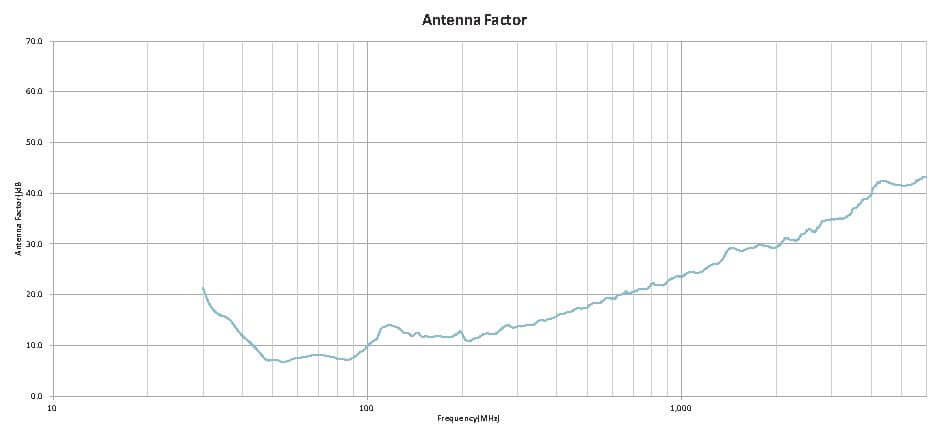

TYPICAL DATA
