Features
Frequency: 80MHz to 3 GHz
VSWR: <2 (below 2500MHz), <2.5 (≥2500MHz)
Power Handling: 250W @3000MHz, 1400W @80MHz
Connection Type: N female
Balun Type Transform Ratio:
Return Loss:
High-Performance Log – Periodic Antenna OVLP-00830 is suitable for laboratory testing environments and EMC testing.
$13,500
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
Description

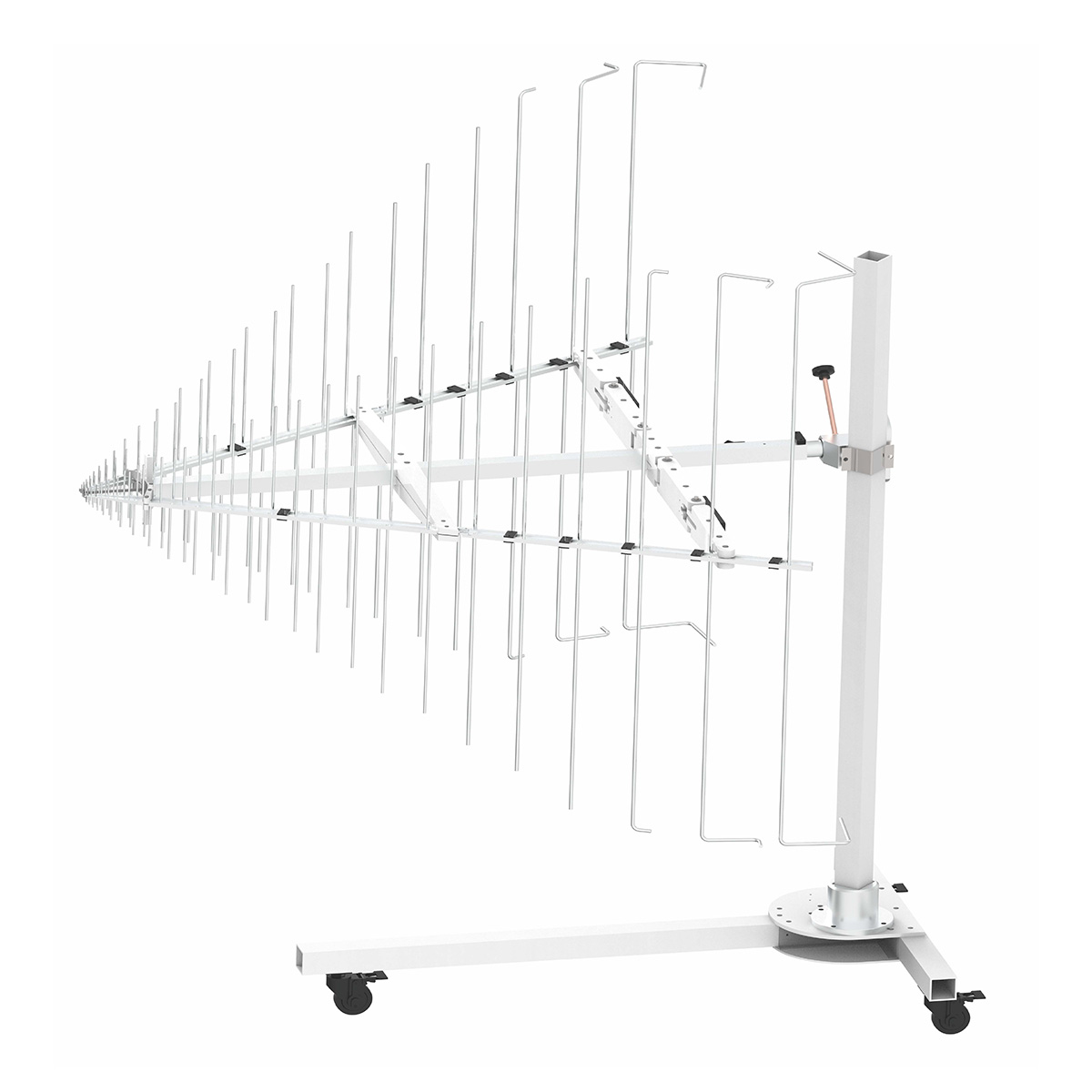

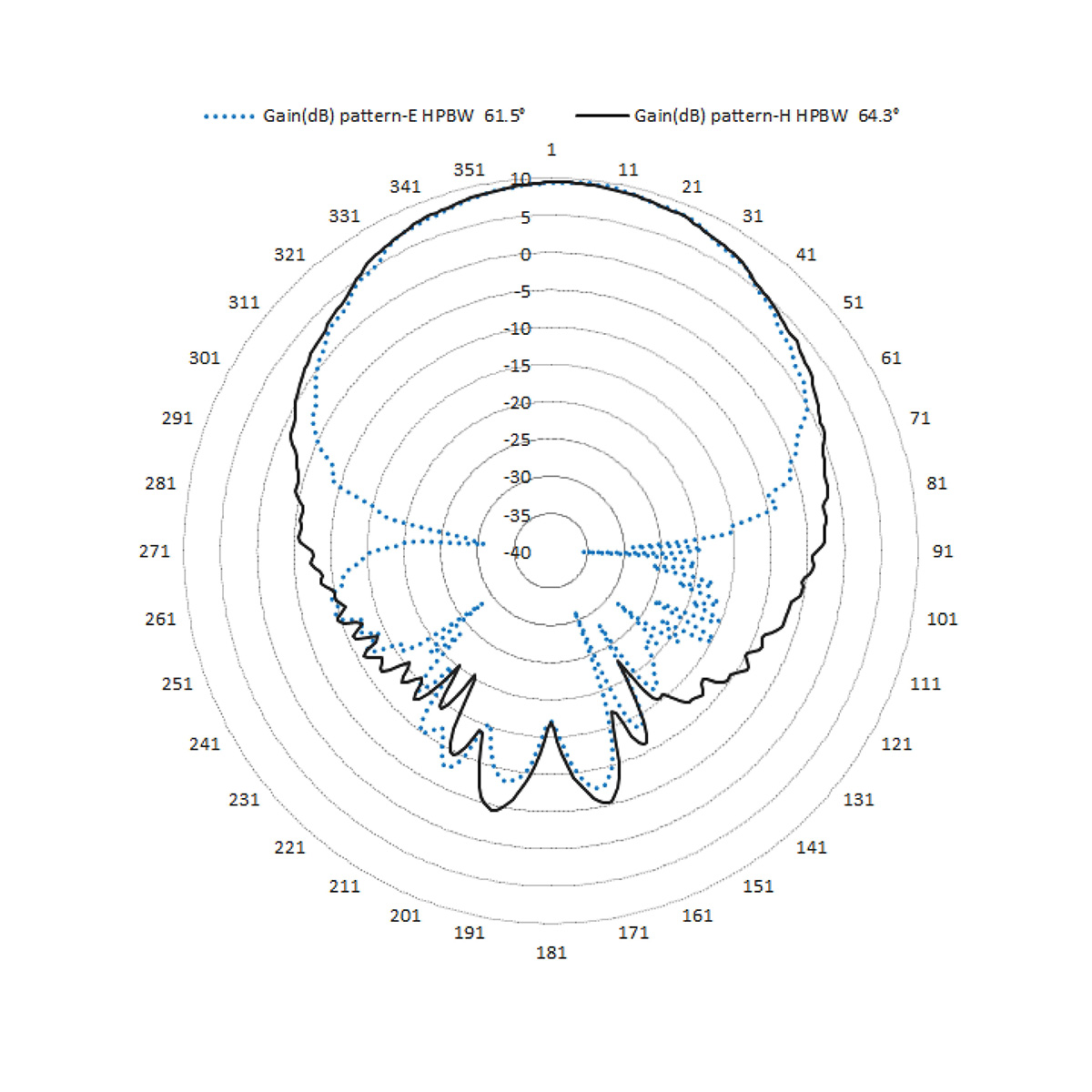

OVLP0830 is a high gain stacked log-periodic antenna, offering a wide frequency range from 80MHz to 3 GHz. This design is perfectly suitable for EMS immunity since it features excellent broadband characteristics and an almost rotation-symmetrical radiation pattern. Additionally, its high gain enables this antenna to receive necessary field strengths with significantly lower amplifier power compared to other systems.

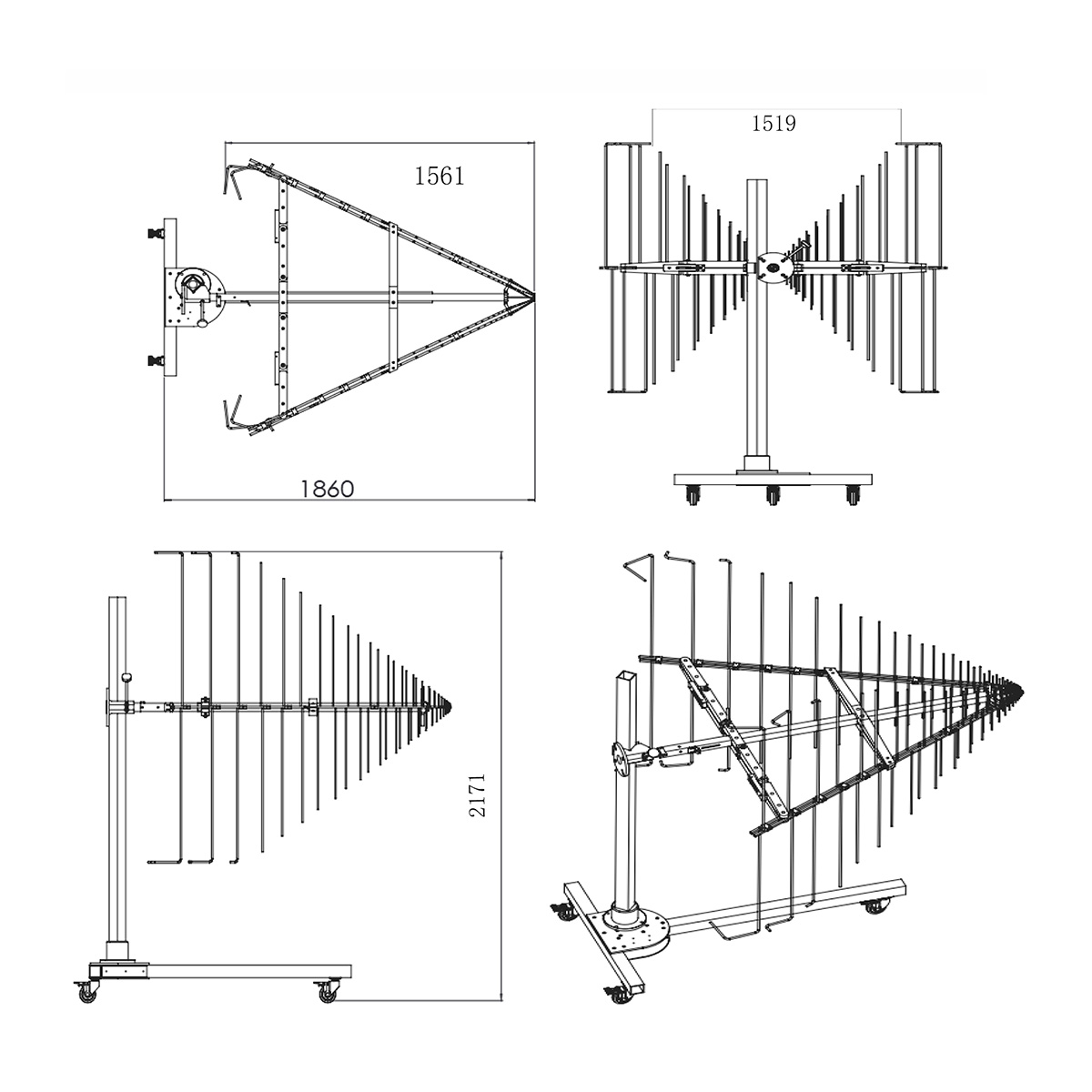

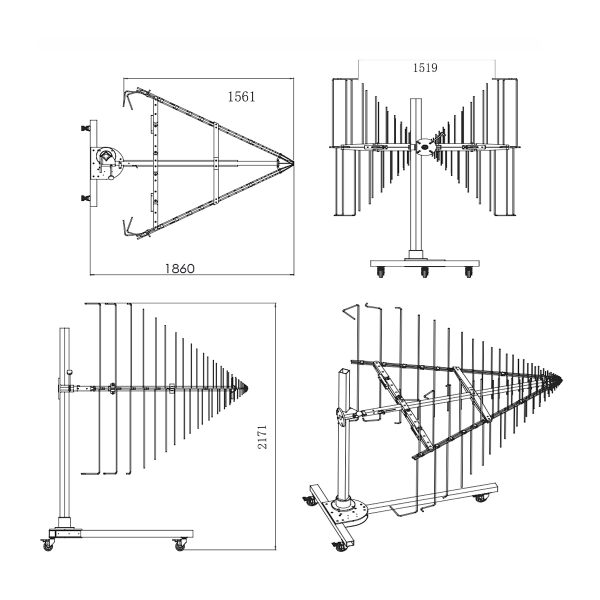

With a compact size design, the OVLP0830 is lightweight, making it ideal for use in test chambers. Another key feature of this model is its advanced polarization adjustment, allowing users to effortlessly adjust the polarization from E-plane to H plane, providing quick and efficient polarization transformation. Moreover, with adjustable width of the antenna, users are able to control the beam width and strength of the signal.
Features
Wide bandwidth from 80MHz to 3 GHz.

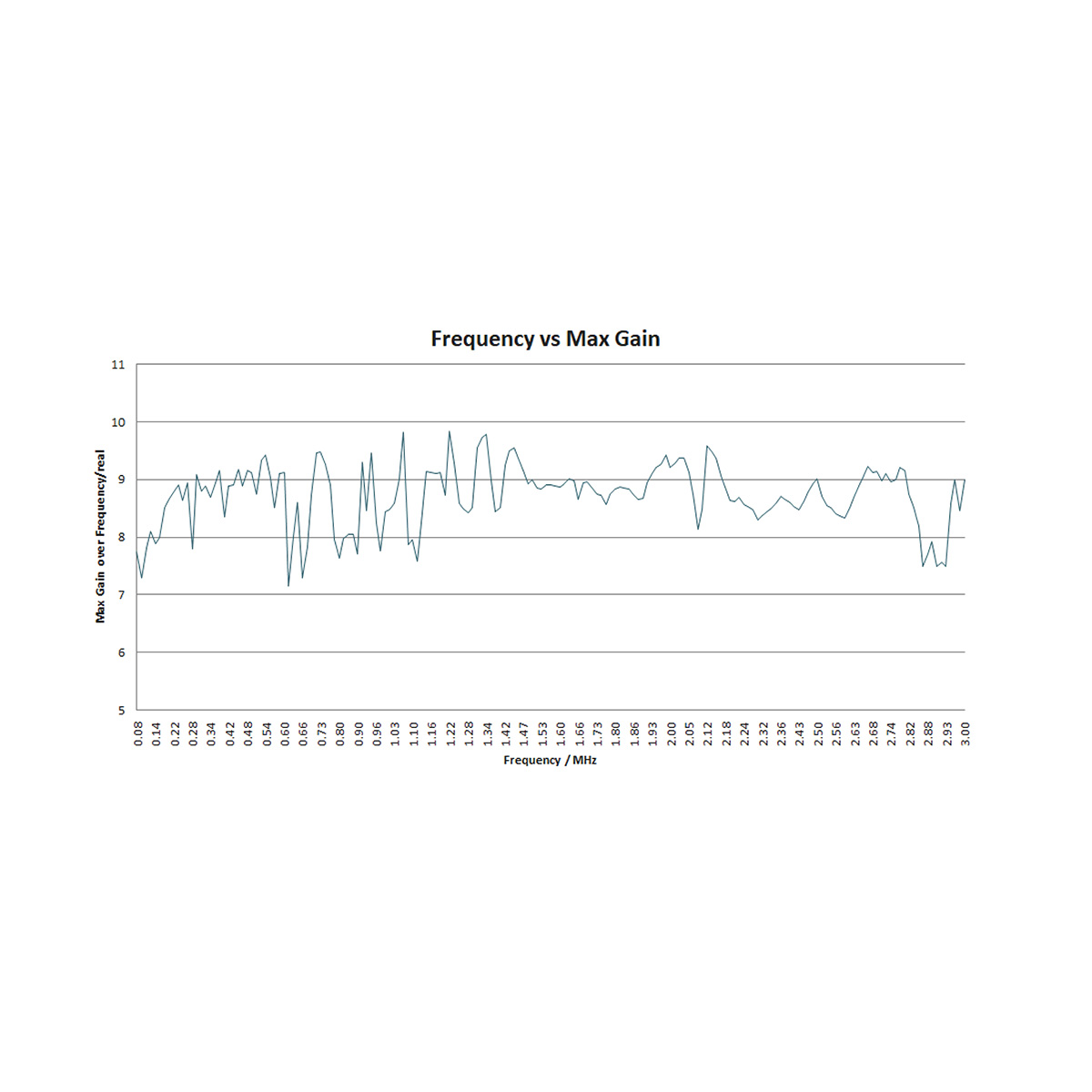

High gain of 8dBi above 200MHz.
Detailed calibration data with 533 points.
Compact and study design.
MTBF over 200,000 hours.
Applications
Satellite communication.
EMC measurements.
Directional radio communication.
Classification
Frequency: 80 MHz to 3 GHz
Polarization: linear
Practical gain: typ. > 8 dBi
Input impedance: 50 Ω
RF connector: N female
Operating temperature range: +5°C to +40°C
Class of application: laboratory
VSWR: < 2500MHz <2, ≥2500 <2.5
Max Input Power(W): 250W 3000MHz , 1400W 80MHz
