Features
Quick, Pre-Test Site Validations
Wide Frequency Range
5 MHz to 1 GHZ
Battery Operated-Extended Battery Life
Operates >18 Hours Per Charge
Automatic Low-Battery Voltage Shut-off
Stable RF Output
Three-Year Warranty
$4,510
Description

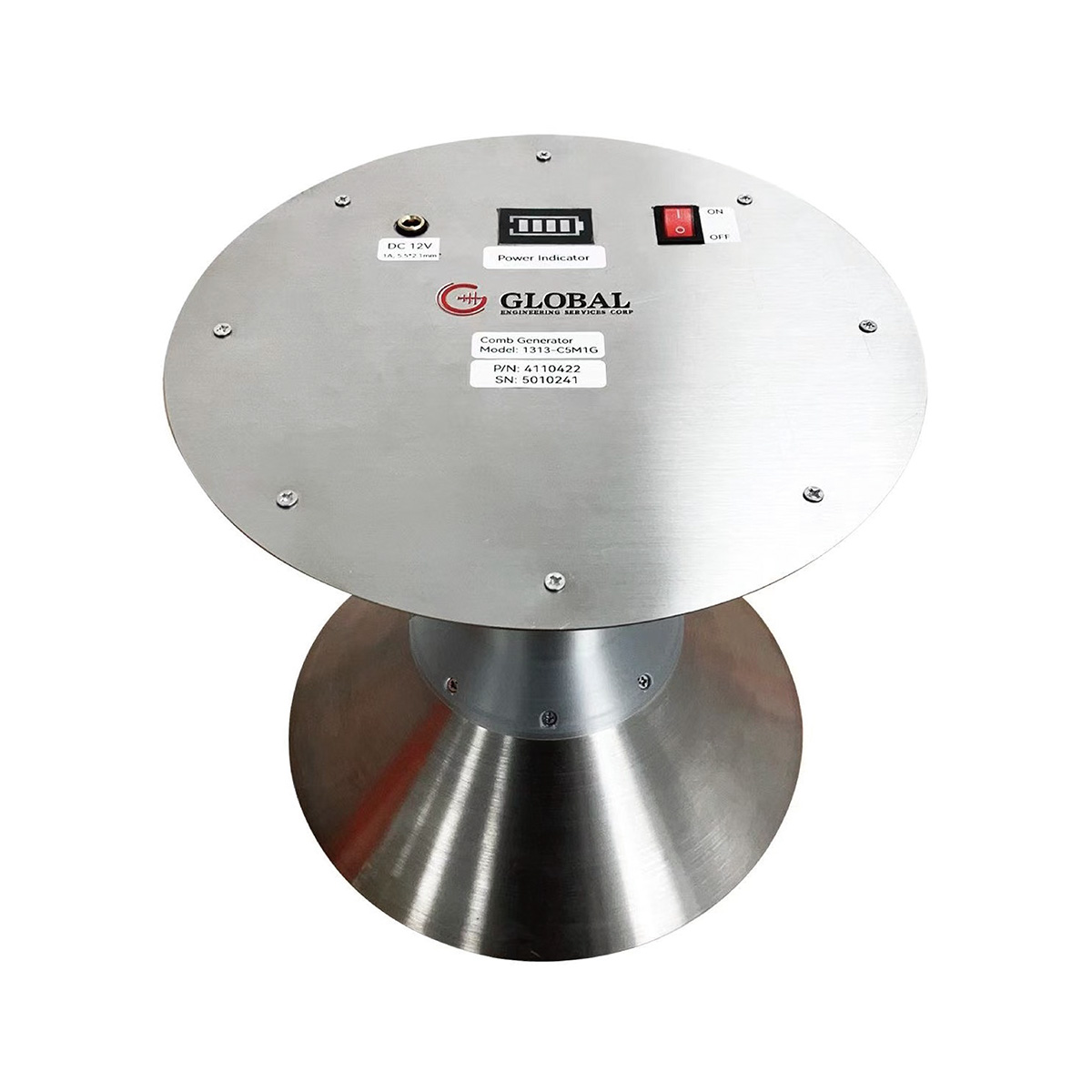

The 1313-C5M1G Comb Generator is a radiated reference signal source for the frequency range of 5 MHz to 1 GHz, at 5 MHz intervals. It is compact, lightweight, easy to operate. The comb generator is provided with integrated Biconical antenna for frequencies up to 1000 MHz.
The 1313-C5M1G is designed to operate on battery power in order to reduce the potential for unwanted reflections caused by external cabling. When fully charged, the internal battery pack allows for continuous operation of the Comb Generator for up to 18 hours.
Application
Radiated emissions measurements for EMC are usually performed on an Open Area Test Site (OATS), Semianechoic Chamber (SAC) or Fully-anechoic Chamber (FAC). These test sites are typically calibrated annually or semi-annually by performing Normalized Site.
Successful completion of the site calibrations provides a high degree of confidence that your site is in proper working order. But what if the calibration results indicate a problem? How long ago did the problem occur? Or, what if a problem occurs after the calibration? An underground cable becomes compromised. A connector no longer makes a connection. The gain of your preamplifier changes. How would you know? Without regular site checks, daily or otherwise; to a large degree, you’ re flying blind.

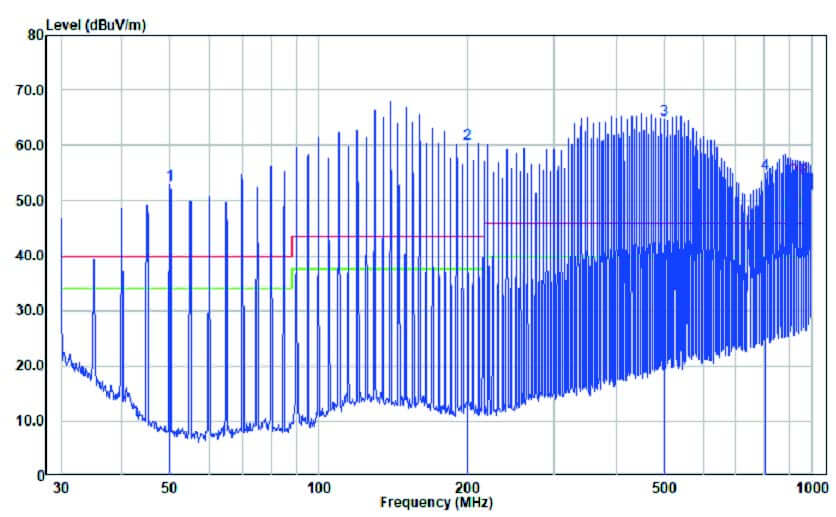

Using a Comb Generator, regular site checks can be performed in just a few minutes by taking readings on a few chosen output frequencies from the 1313-C5M1G, and comparing the values against your reference data. How many days, weeks or months of taking bad data could you easily avoid?
Employing the 1313-C5M1G Comb Generator for regular site checks is a cost-effective, efficient tool for ensuring the consistency and accuracy of your radiated measurement data.
The 1313-C5M1G can also be used as a signal source for insertion loss measurements of cables, attenuators filters, etc., as well as test site comparisons.
Specifications
All specifications are subject to change without notice. Specifications All values are typical, unless specified.
Intended Application: Radiated Reference Signal Source (for OATS, SAC, FAC, etc.)
Frequency Range: 5 MHz to 1 GHz
Frequency Step Size: 5 MHz
Frequency Stability: 20 ppm
Amplitude Stability: ± 0.1 dB
Time Stability: <1 dB over 12 Months
Charging Adapter Output: 12 VDC, 1A/ 110VAC 60 Hz or 230 VAC 50 Hz
Battery Type: 7.4V Li-On, 1500 mAh
Battery Operation: >18 Hours Typical (Fully-charged Battery)
External LED Indicators: Battery Level, Power On
Antenna Type: Biconical Antenna
Generator Dimensions: 21.5 cm x 21.5 cm x 20.0 cm
Weight: 1.5 kg
