FEATURES

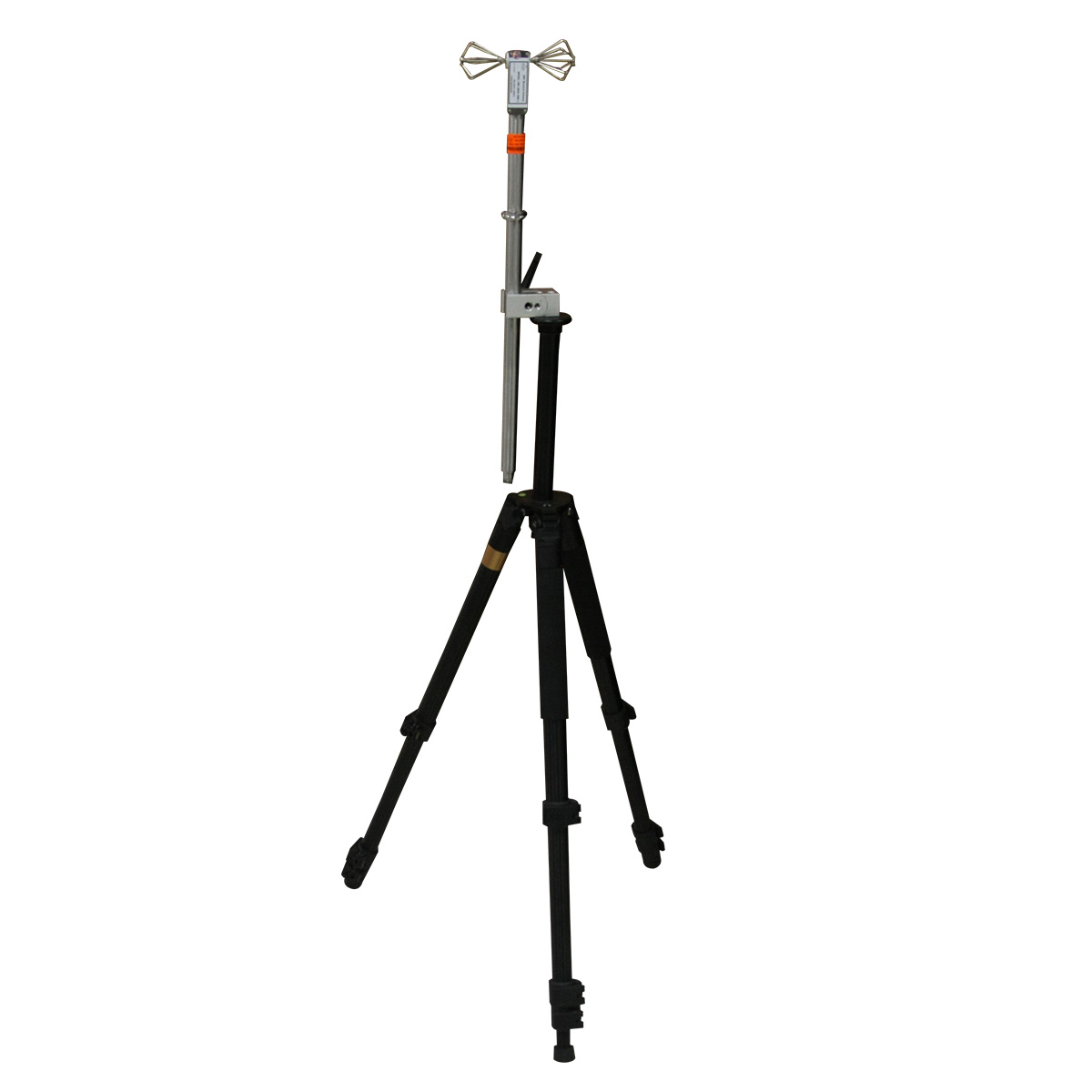

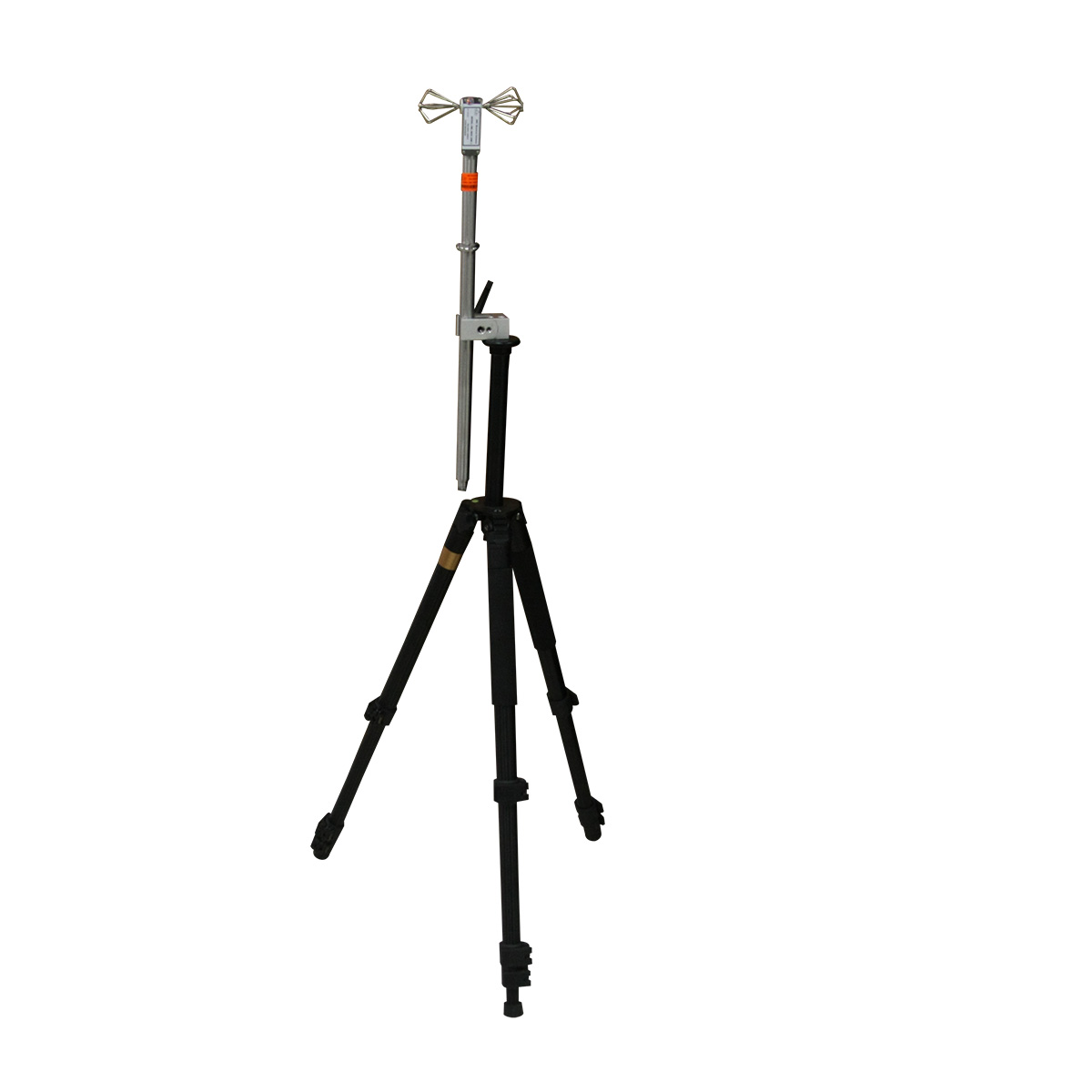

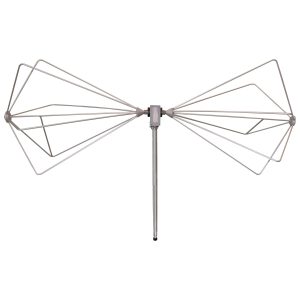

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 500 MHz to 3000 MHz. Its pattern stability is better. Biconical antenna model OBC-530-20W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.
SKU: OBC-530-20W-1
Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna
$1,740
DESCRIPTION
Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 500 MHz to 3000 MHz. its pattern stability is better.Biconical antenna model OBC-530-20W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160 andother requirements.

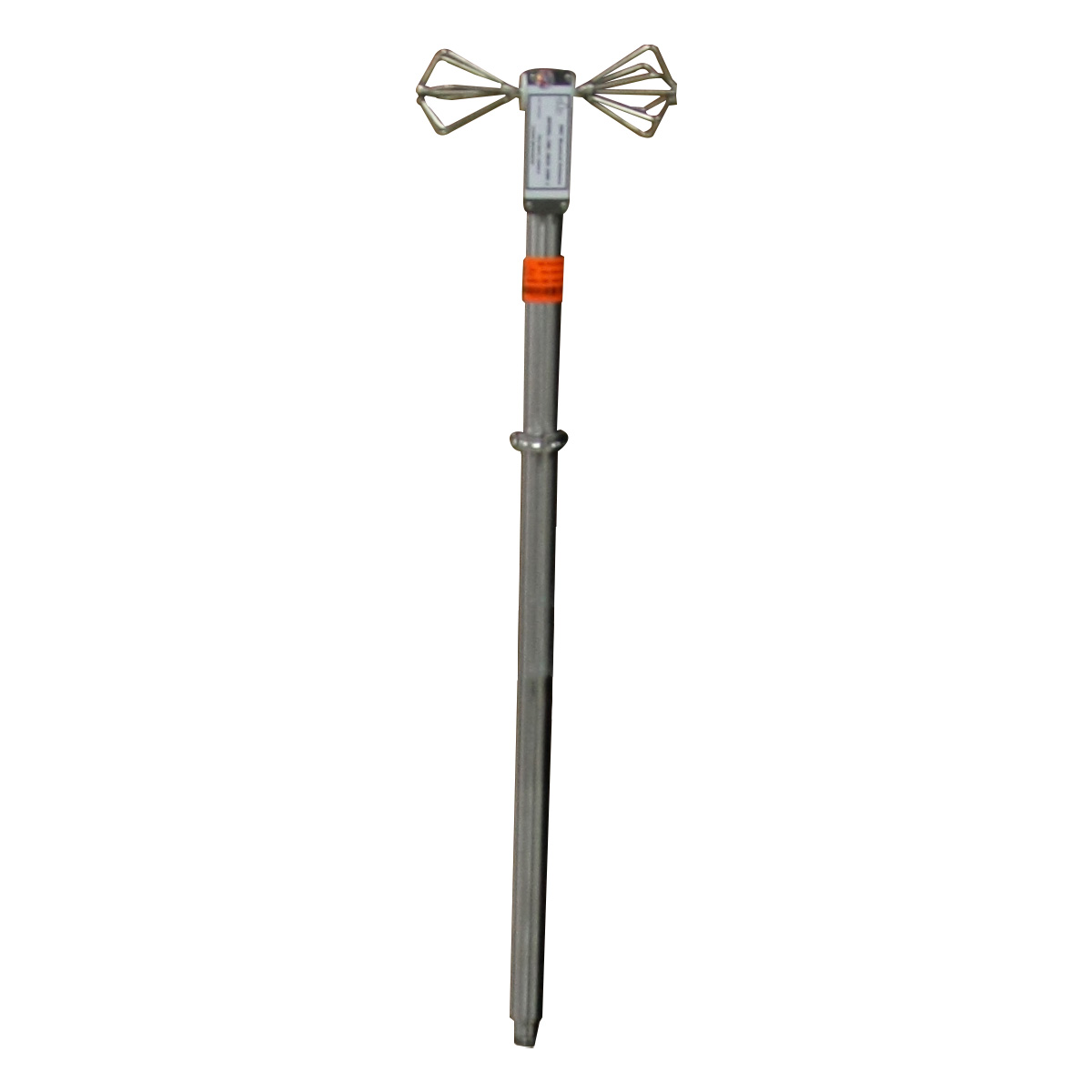

OBC-530-20W-1 biconical EMC broadband antenna has durable aluminum alloy, and we powder coated them to improve corrosion resistance.
The OBC-530-20W-1 model is used for radiation and immunity testing to meet various EMC standards. Its frequency range is 500 MHz to 3000 MHz. The broadband characteristic of biconical antenna makes it an ideal choice for scanning measurement and automatic measurement systems.Biconical antennas can be used for manyapplications, in which half-wavedipoles have been used traditionally.An enourmous reduction of measurementtime can be achieved,because the time consuming tuning of the antenna elements to the half wavelength is notneeded, an important condition for sweeped broadband measurements. In typical dipole applications severaldiscrete frequencies are measured, in contrast the bi conical antenna allows continuous sweeps, where siteanomalies are discovered much easier.
Notwithstanding the above applications, the OBC-530-20W-1 can also be used for test site comparisons, shielding effectiveness tests of large enclosures, field monitoring, site surveys and other general purposes.
FEATURES
Low return loss
Linear gain with frequency
EMC and EMI testing
Radio link testing
APPLICATIONS
Broadband RX-Antenna for Emission Testing
TX-Antenna for Immunity testing
especially at low frequencies
ELECTRICAL SPECIFICATIONS
Frequency Range: (500-3000)MHz
Nominal lmpedance: 50 Ω
Polarization: Linear
Connector: N type female
Power Handling: 20 W
VSWR: 2.0:1
Impedance: 50 Ohms
Pattern Type: Omnidirectional

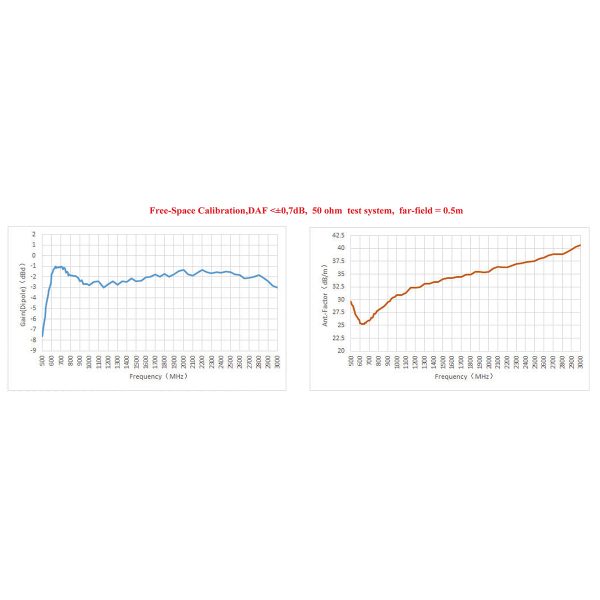

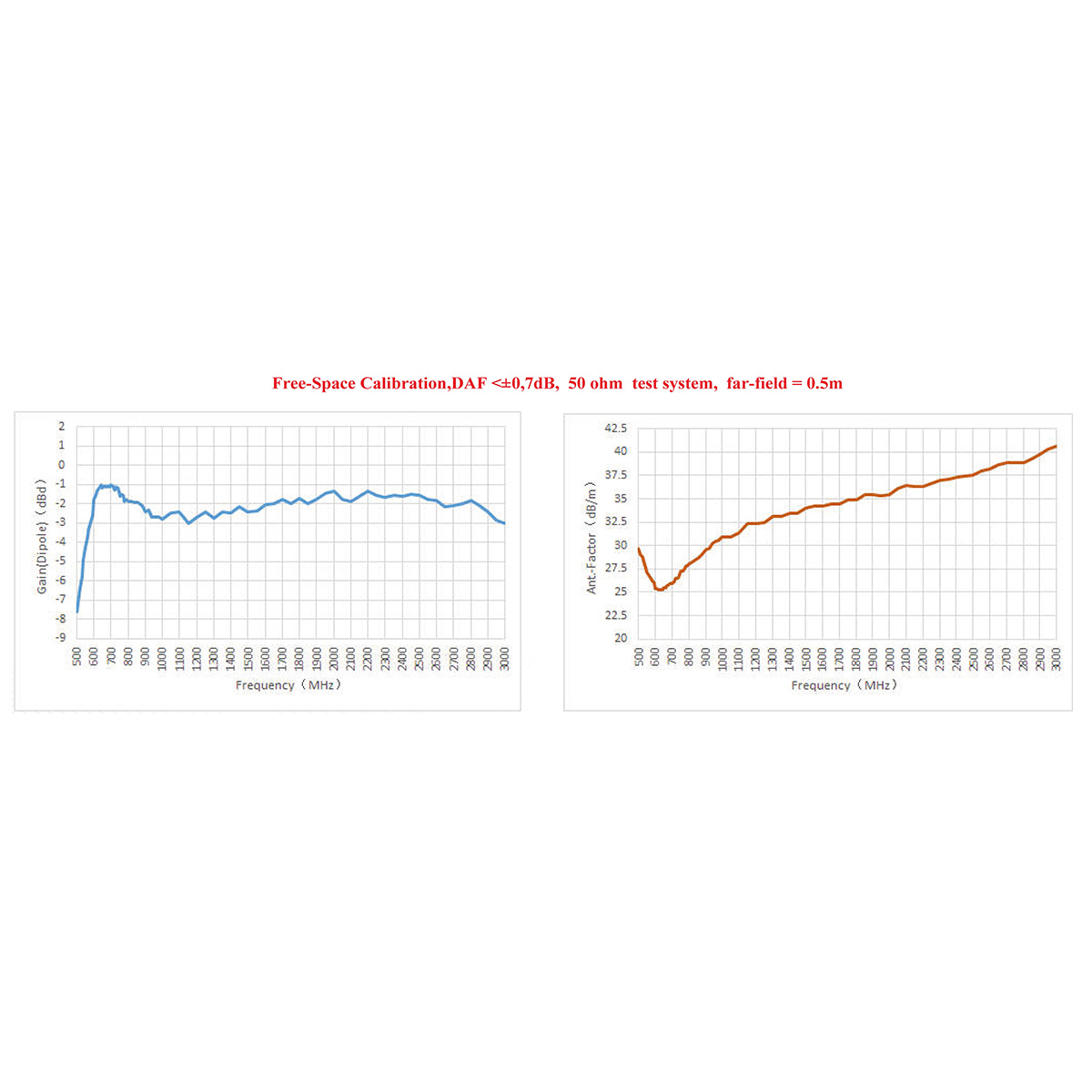

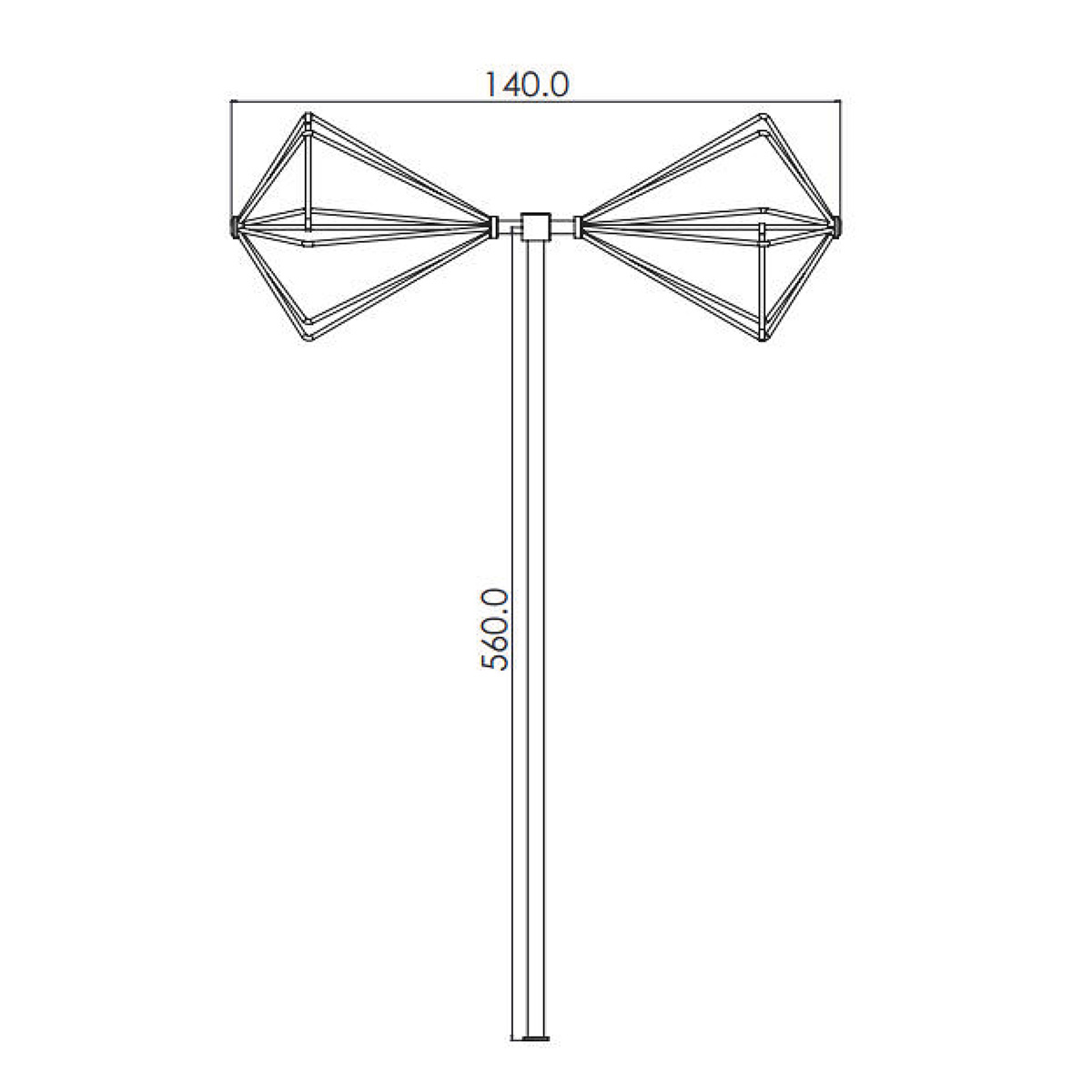

Length (mm): 140
Balun TypeTransform.Ratio: 1:1
