Anechoic Chamber Positioning System
This system is designed for EMC anechoic chamber radiation testing. In standard configuration, it includes: 1 × GETT-2000 turntable, 1 × GEAM-4600 antenna mast, 1 × GEC-3 controller. The turntable, antenna mast, and controller communicate via fiber optic systems to achieve coordinated motion control. By modifying the controller program, the turntable or antenna mast can also operate i ndependently with the controller for individu al motion control .
GETT-2000 Turntable System

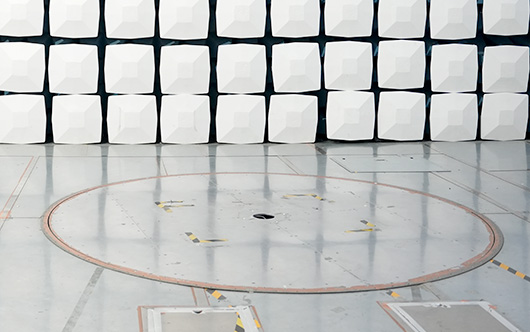

The GETT-2000 turntable features a flush-mounted design with its working surface level with the chamber floor. Its rotating platform has a diameter of 2 meters and is suitable for chambers with a q uiet zone area of 3. 14 m2.
Technical indicators
| A.GETT-2000 Turntable Technical Specifications | |
|---|---|
| Turntable diameter | 2000mm |
| Turntable frame size | 2300mm×2300mm×300mm (Length, width and height) |
| Maximum load | 1.5t |
| Turntable material | Stainless steel |
| Rotation angle range | 0°~360° (Customizable) |
| Rotation speed range | 0.5rpm~2rpm (Customizable) |
| Rotation angle positioning accuracy | ±1° |
| Control communication method | Optical fiber |
| Powered by | AC 220V 59Hz |
| Power | 150W |
| Interference level | 10dB below CISPR 22 limit |
GEAM-4600 Antenna Mast System

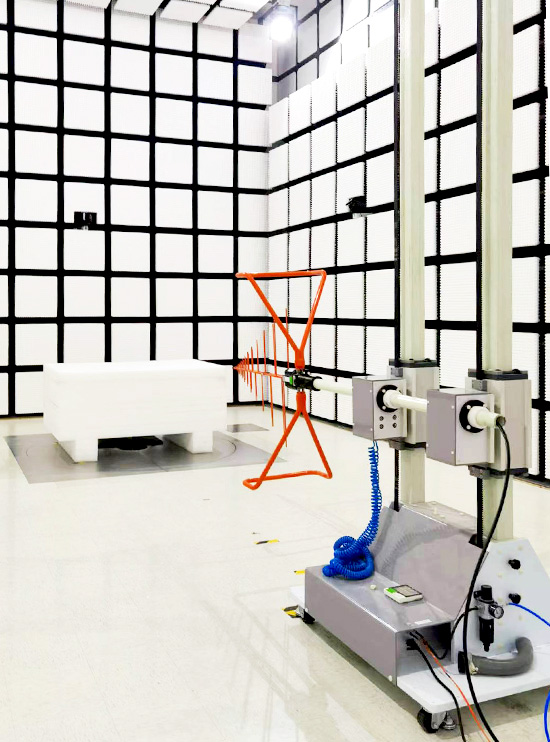

The GEAM-4600 Antenna Mast is a dual-pole system with tilt functionality. It features an effective vertical travel range of approximately 4.6 meters. The mast's elevation and tilt movements are motor-driven, while antenna polarization switching is achieved through pneumatic cylinder actuation. All electrical components, including motors, are shielded and enclosed within a conductive-coated metal drive housing
located at the mas t base.
Technical indicators
| A.GETT-2000 Turntable Technical Specifications | |
|---|---|
| Turntable diameter | 2000mm |
| Turntable frame size | 2300mm×2300mm×300mm (Length, width and height) |
| Maximum load | 1.5t |
| Turntable material | Stainless steel |
| Rotation angle range | 0°~360° (Customizable) |
| Rotation speed range | 0.5rpm~2rpm (Customizable) |
| Rotation angle positioning accuracy | ±1° |
| Control communication method | Optical fiber |
| Powered by | AC 220V 59Hz |
| Power | 150W |
| Interference level | 10dB below CISPR 22 limit |
GEC-3 Controller

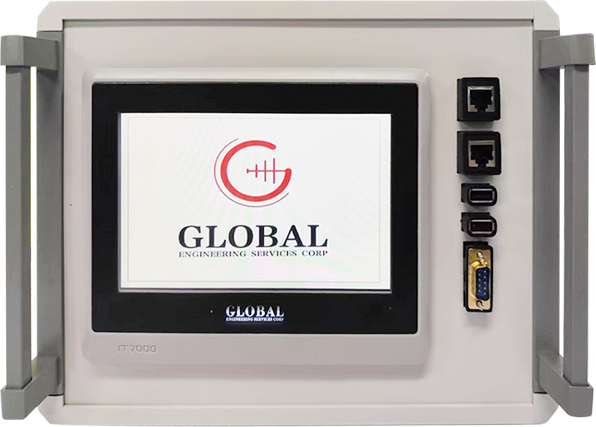

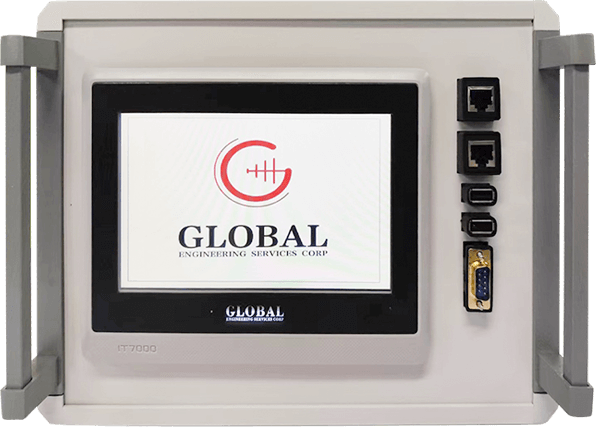

The GEC-3 controller integrates PLC, touchscreen, fiber optic, and LAN communication functions, capable of controlling all GE-branded turntables and antenna masts. It features RJ45, USB, and RS232 interfaces, supports TCP/IP communication protocol for seamless PC connectivity, and runs on an Android-based touchscreen supporting multilingual operation environments and customizable HMI interfaces.
Technical indicators
| A.GETT-2000 Turntable Technical Specifications | |
|---|---|
| Turntable diameter | 2000mm |
| Turntable frame size | 2300mm×2300mm×300mm (Length, width and height) |
| Maximum load | 1.5t |
| Turntable material | Stainless steel |
| Rotation angle range | 0°~360° (Customizable) |
| Rotation speed range | 0.5rpm~2rpm (Customizable) |
| Rotation angle positioning accuracy | ±1° |
| Control communication method | Optical fiber |
| Powered by | AC 220V 59Hz |
| Power | 150W |
| Interference level | 10dB below CISPR 22 limit |
