FEATURES
Frequency Range: 20 kHz – 10 MHz
Measuring Output: 50Ω BNC Female
Ambient Temperature: -10° to +60°C
Diameter of the Sphere / Head:210 mm
Fixture Clamp for Rods with a Diam-eter of: 40 mm
Weight: 6.6kg
$2,250
Shipping & Delivery
Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan
(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.
Product Overview

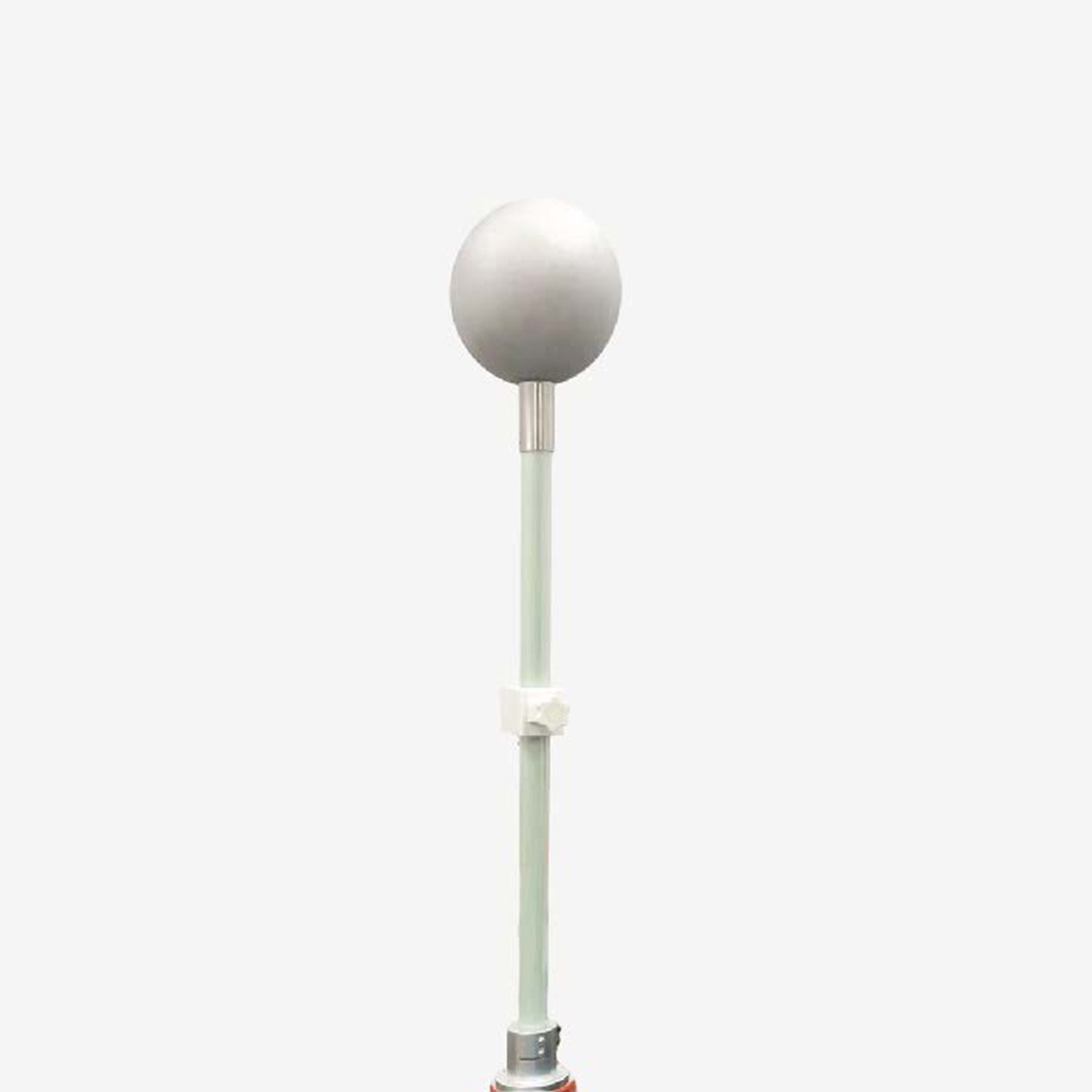

The “Van der Hoofden” test head 1313-V210AL allows to determine the exposure of humans to radiation caused by luminaries. The measurement is based on IEC 62493:2015. Through different ways of coupling be-tween luminaries and humans a level of exposure of a person to electromagnetic fields can be derived. One part of the exposure is based on capacitive coupling between lighting equipment and person. This induces current densities. These current densities must be measured and evaluated using an EMI receiver and a van der Hoofden test head.
SPECIFICATIONS
Frequency Range: 20 kHz – 10 MHz
Measuring Output: 50Ω BNC Female
Ambient Temperature: -10° to +60°C
Diameter of the Sphere / Head:210 mm
Fixture Clamp for Rods with a Diam-eter of: 40 mm
Weight: 6.6kg
All specifications are subject to change without notice. All values are typical, unless specified.
