FEATURES
Frequency range: 0.4-6GHz
Gain: 6-19dBi.
Input Power: 0.4-1.4kW
VSWR: ＜2typ.
Impedance: 50 Ohm
Wide bandwidth.
Linear Polarized with high polarization purity

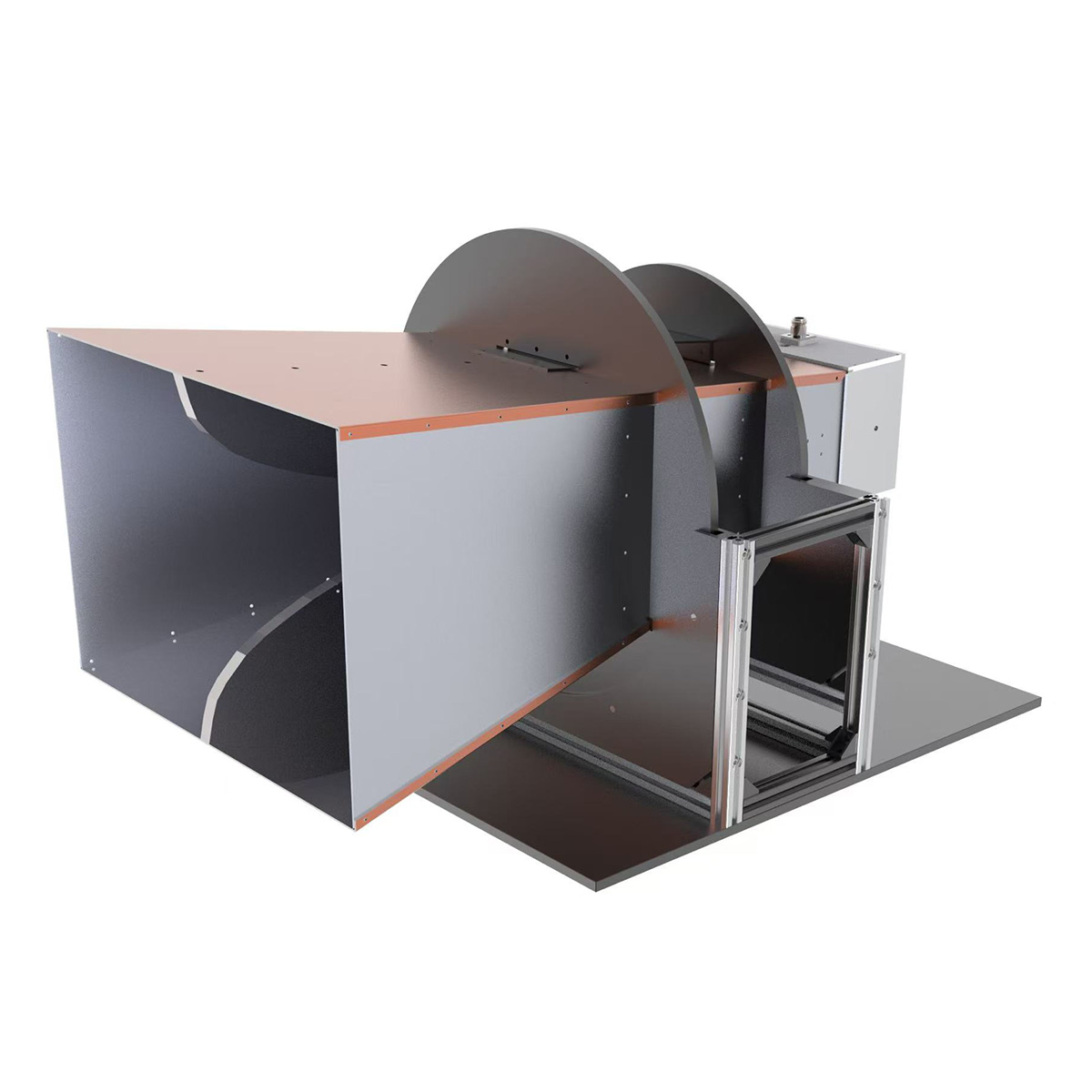

OBH-460-HG Ultra wide-band dual ridged horn antenna stands out for EMC/EMI.
$5,000
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION
The Ultra wide-band dual ridged horn antenna OBH-460-HG is designed for superior performance accross a wide range of frequency spectrum ensuring consistent signal strength. It can transmit a clear and precise signal even in a challenging environment. The gain increase with respect to the frequency up to approximately of 19dbi and a maximum power handling capability of upto 1400W. Especially, it performs even more outstandingly in the EMC/EMI test.
Features
Linear Polarized with high polarization purity
Low Return Loss/VSWR
Wide bandwidth
High Power handling capability
All specifications are subject to change without notice. All values are typical, unless specified.
Applications
EMC/EMI
Broadcast and Telecommunications
Radar Sensor Calibrationp
Widely used in wireless
