FEATURES
Frequency Range: 1000 MHz – 7.2 GHz
Shielding Effectiveness: >80 dB
Internal Absorber: High-compression flat RF absorbing foam
$600
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION

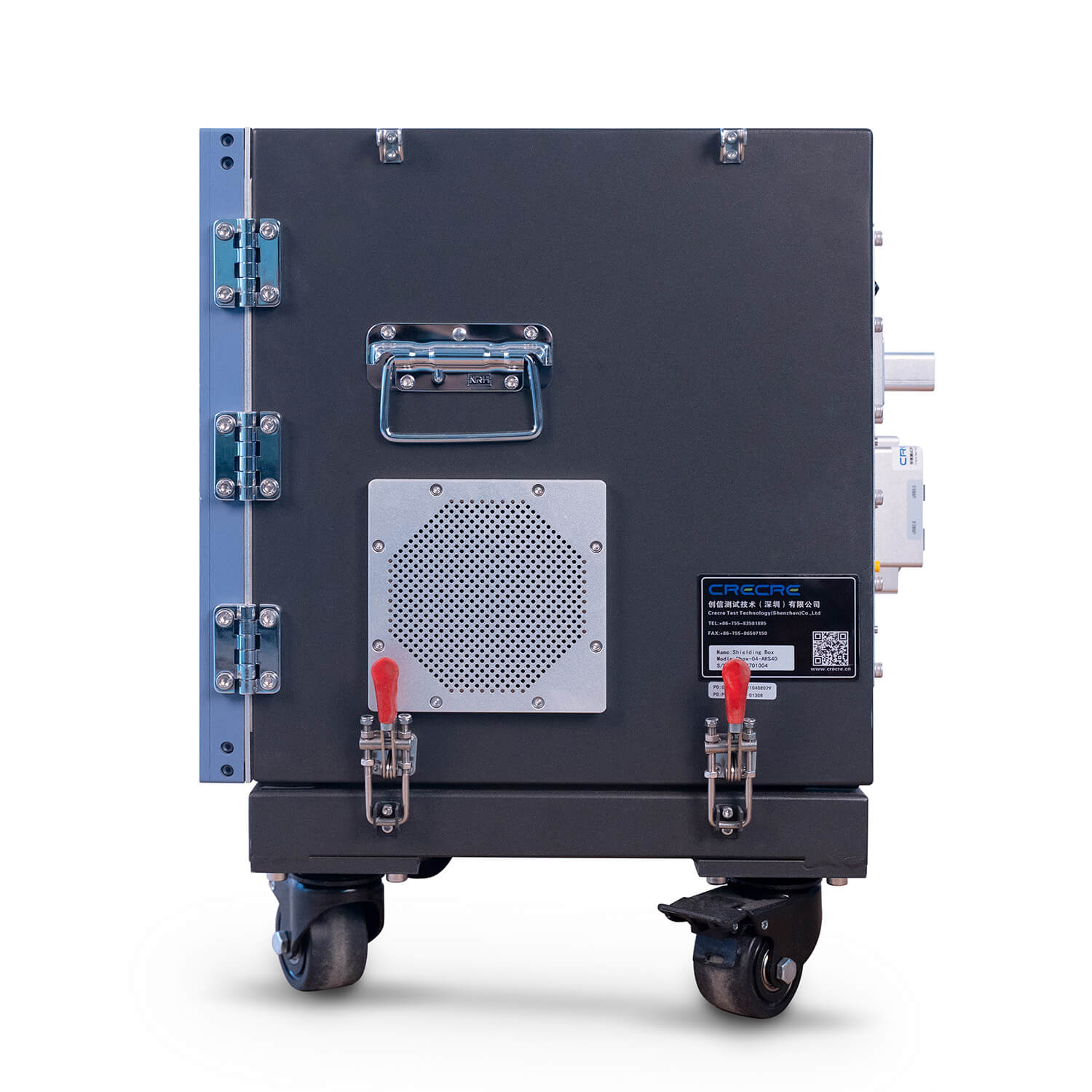

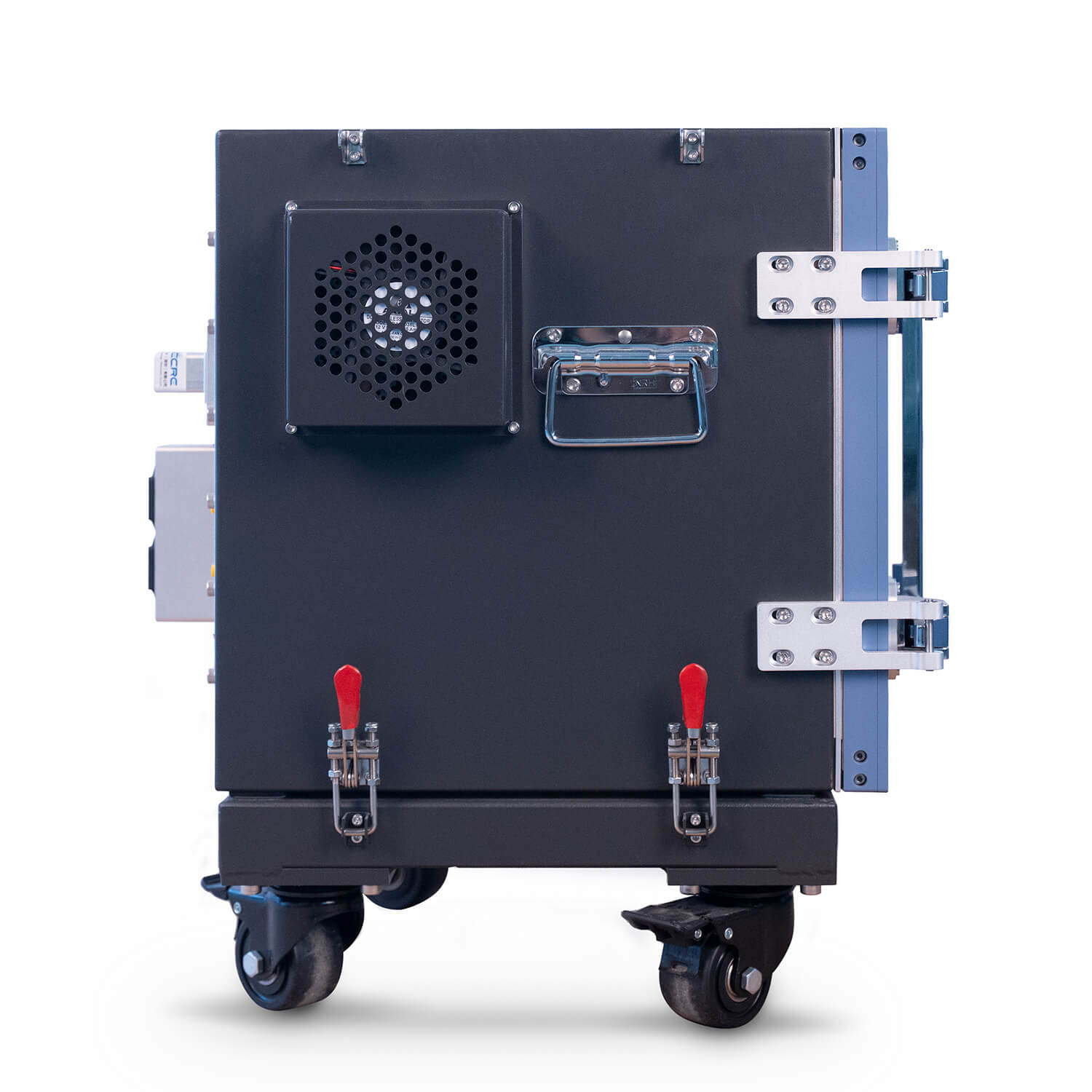

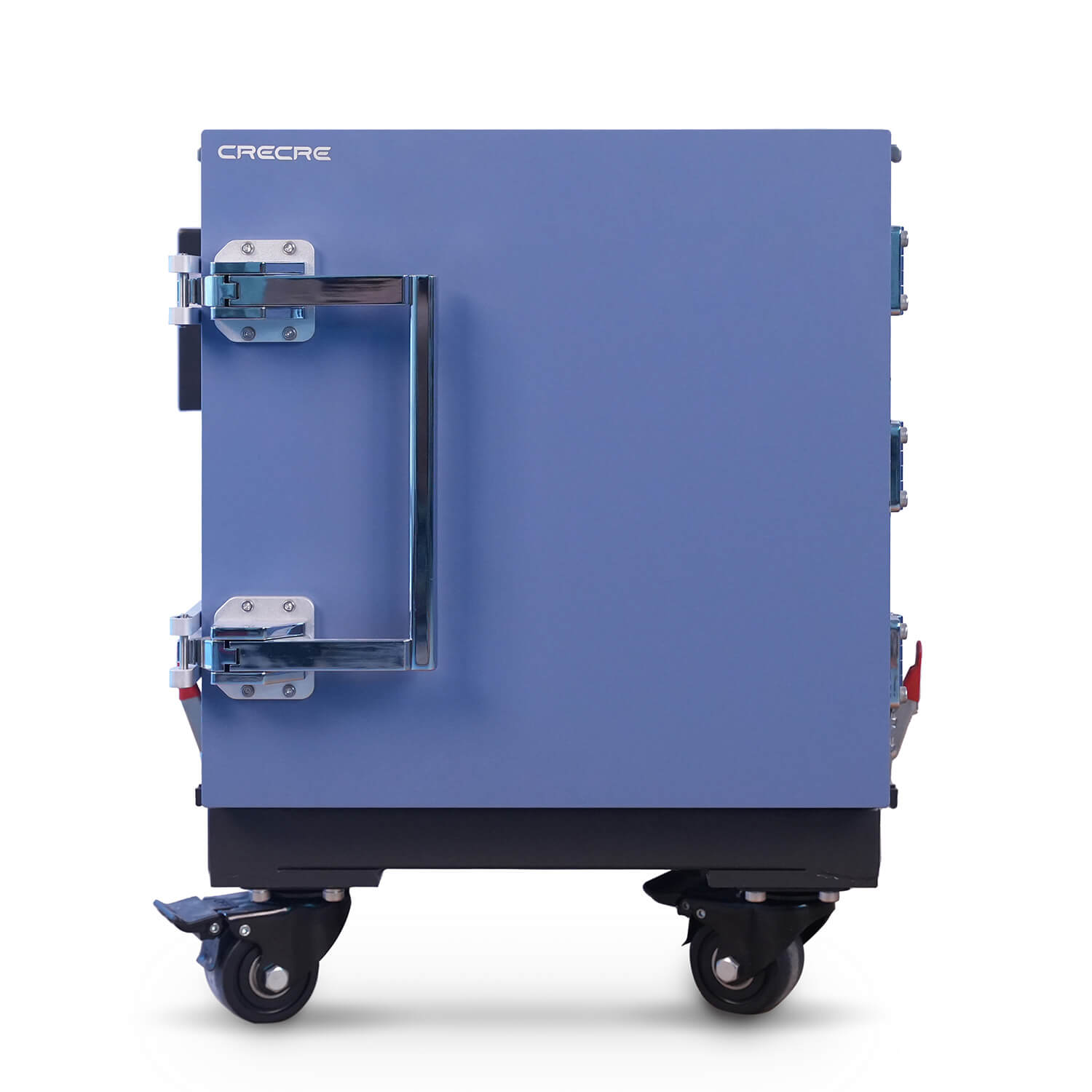

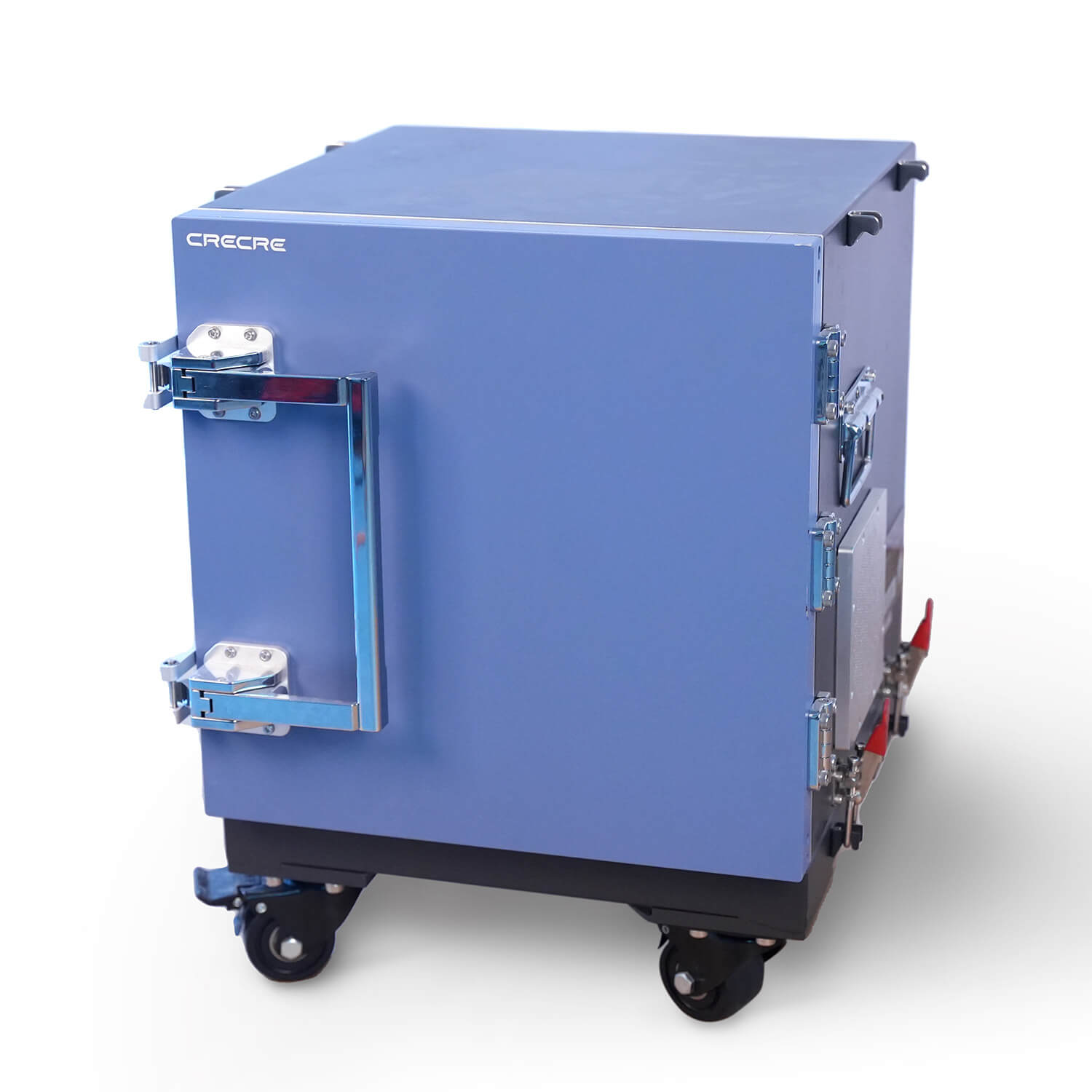

The CBOX-04-ARS40 is a high-performance manual RF shielding box designed for reliable testing of large wireless communication devices. Featuring a spacious internal working area and outstanding shielding effectiveness, it is an ideal solution for RF, EMI, and EMC testing in both R&D and production environments.
Constructed with a die-cast alloy enclosure, the CBOX-04-ARS40 delivers excellent shielding integrity and long-term mechanical stability. The system supports flexible I/O interface configurations, enabling seamless integration with a wide range of test instruments and application scenarios.
Typical Parameters
Model: CBOX-04-ARS40
Operation: Manual
Enclosure Material: Steel or Aluminum Alloy
Condition：Used
Dimensions (W × H × D): 650 × 550 × 700 mm
Frequency Range: 1000 MHz – 7.2 GHz
Shielding Effectiveness: >80 dB
Internal Absorber: High-compression flat RF absorbing foam
Interface Configuration:
5 × RJ45 Ethernet ports
4 × USB 3.0 ports
12 × SMA connectors (operating frequency: 100 MHz – 7.2 GHz)
1 × 75 Ω F-type filtered interface
110–220 V / 1–10 A AC three-pin filtered power socket module
Enhanced waveguide-based heat dissipation assembly
Environmental Conditions:
Operating Temperature: –30 °C to +40 °C
Storage Temperature: –40 °C to +60 °C
All specifications are subject to change without notice. All values are typical, unless specified.
