Features
Frequency range: 200 MHz to 1.3 GHz
Gain: ≥ 6 dBi (typ.)
VSWR:<2:1
Impedance: 50Ω
Connector Type: N-Type, female
SKU: OLP-213
Categories: Log Periodic Antenna, Standard Log-Period Antenna
$1,900
Description

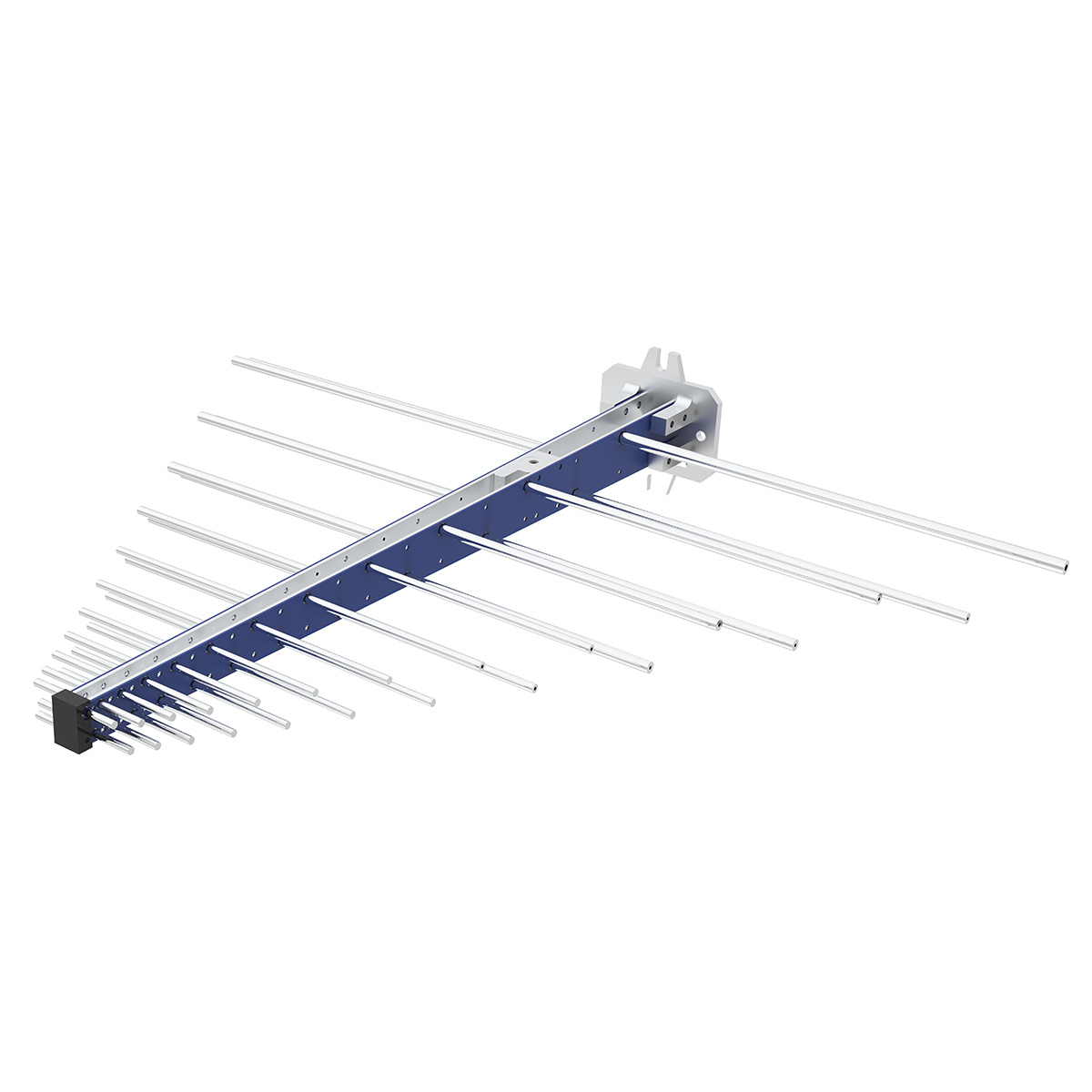

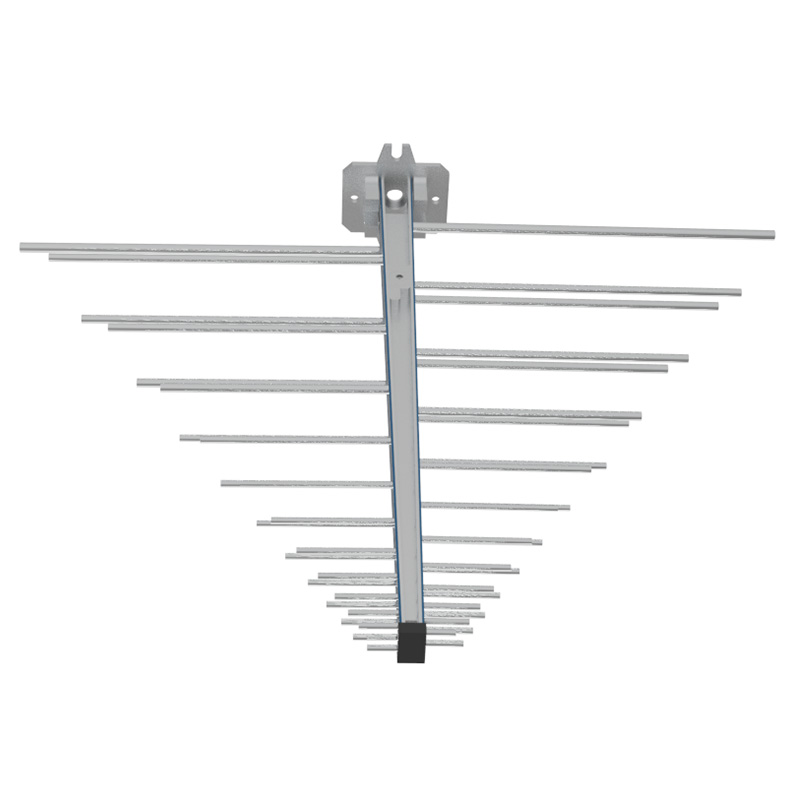

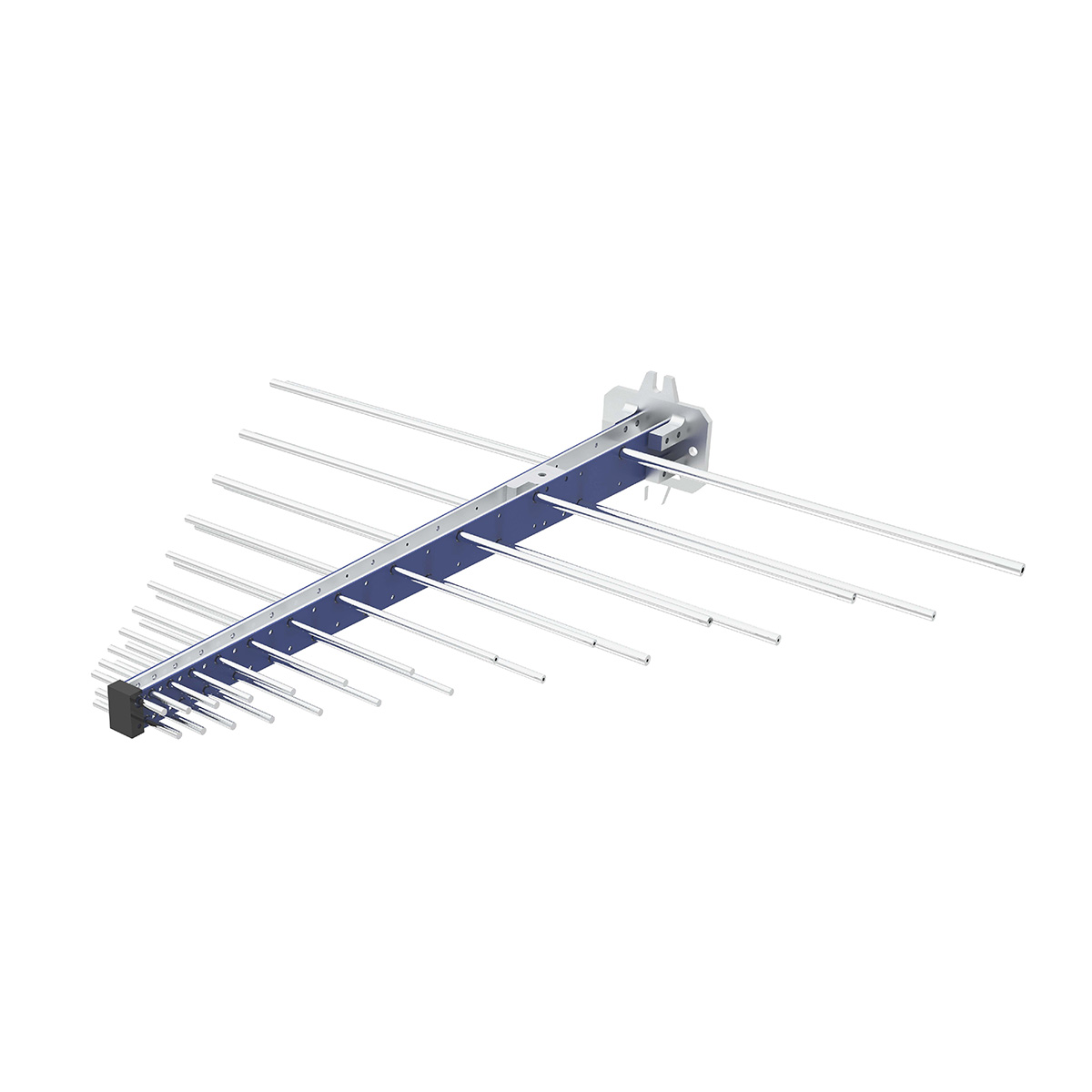

The OLP-213 is a versatile, high-performance log-periodic antenna featurin gexcellent broadband characteristics, making it perfectly suited for various application, including measurements, monitoring and transmitting. With its broadband characteristics and virtually frequency-independent radiation pattern, this antenna can effectively cover an extensive frequency range from 200 MHz to 1 .3GHz. Additionally, its durable construction makes it suitable for both mobile and stationary operations across multiple industries.
The OLP-213 is equipped with individual calibrations in line with ANSIC 63.5, CISPR16-1-6 and SAEARP 958, and it also comes with an adapter for easy installation on tripods. Moreover, it also offers an accredited calibration to ensure the antenna meets the highest standards of quality.
Features
Excellent broadband characteristics
Sturdy construction
Accredited calibration available on request
Influence of chamber reduced
Applications
Broadband signal transmission
Mobile signal monitoring
Accurate EMI measurements
Electrical Specifications
Frequency range: 200MH z – 1.3GHz
Polarization: linear
Input impedance: 50 Ω
VSWR: <2 Typ.
Max. input power (at+20 °C): 1500W to 600WCW

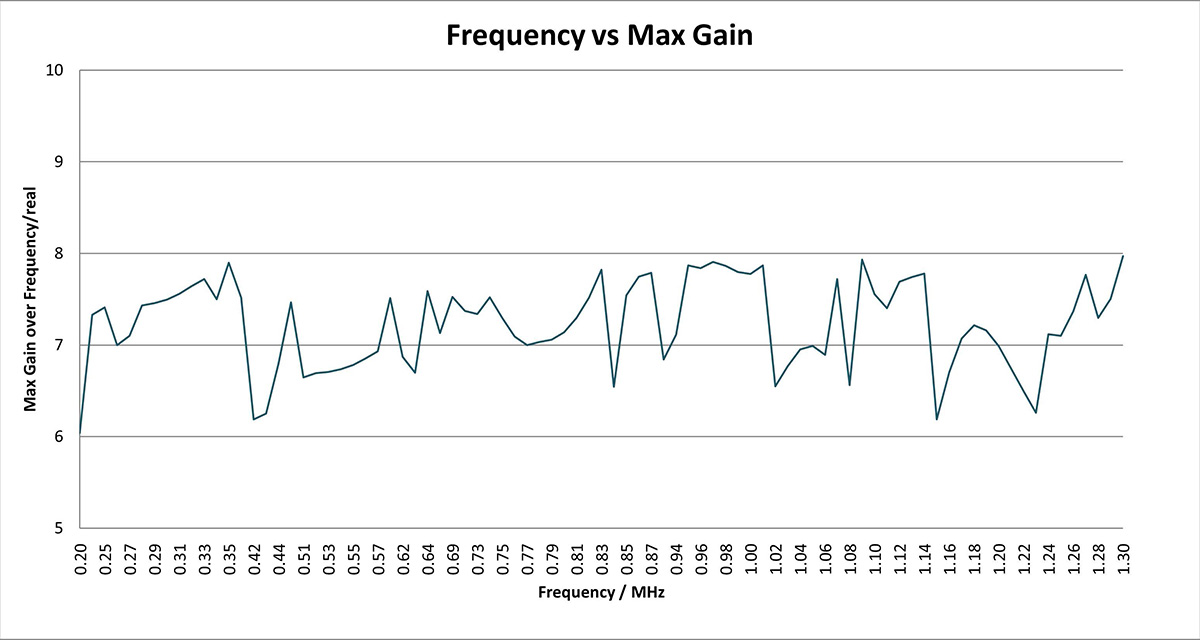

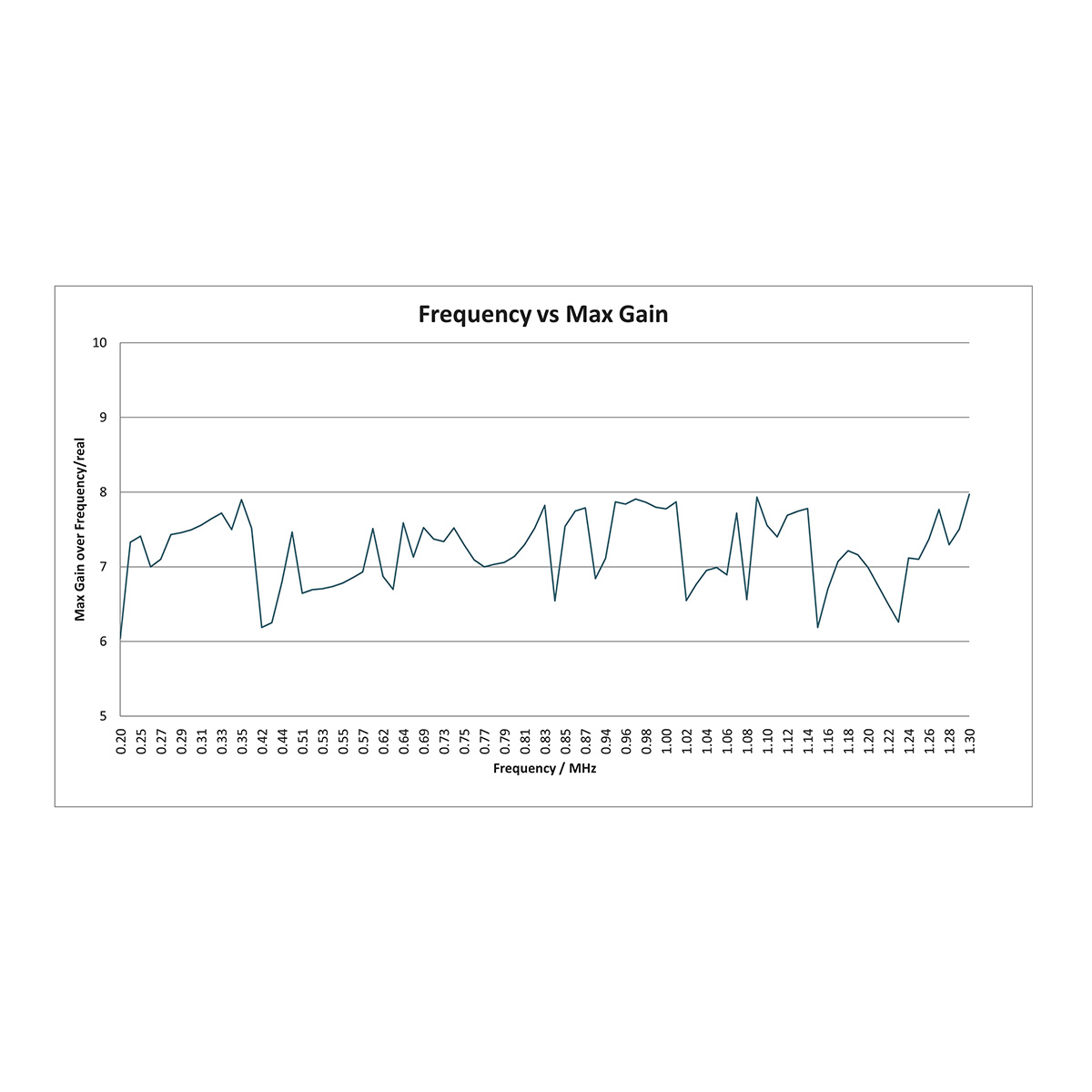

Gain: ≥ 6 dBi (typ.)
Connector: N female
MTBF: > 100000h
Operating temperature range: –40°C to + 50°C
Max. wind speed: 200km/h

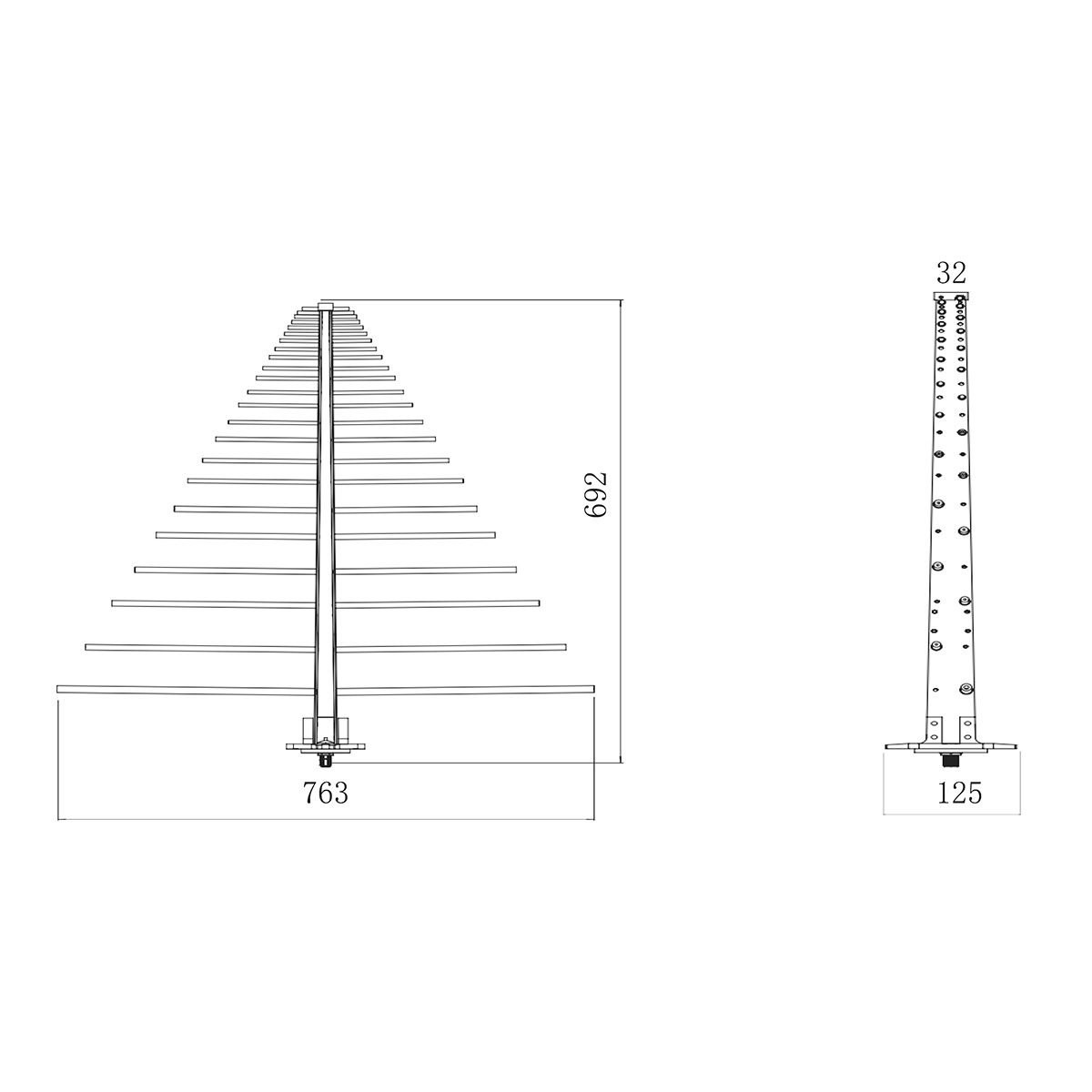

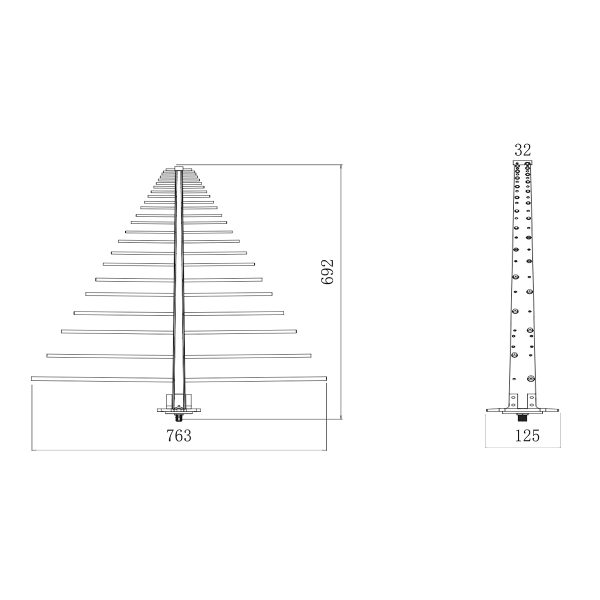

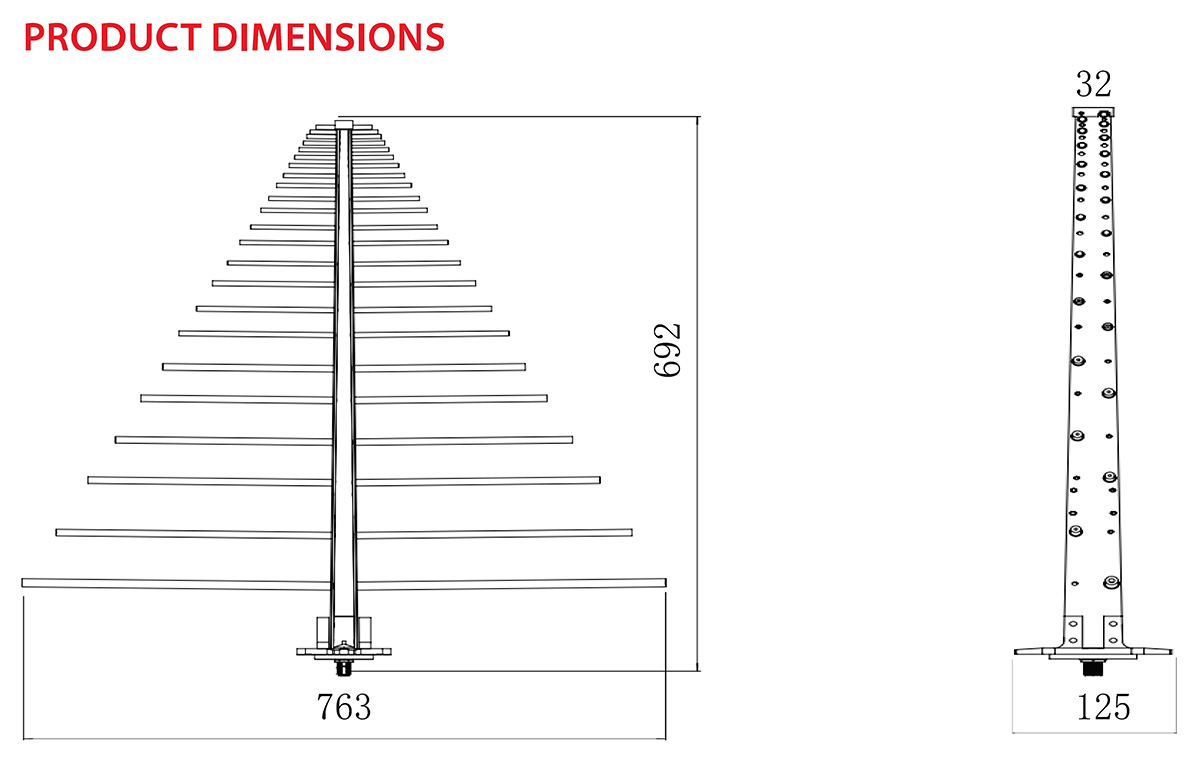

Dimensions: 765 × 120 × 710mm
Weight: 2kg
