FEATURES
Frequency Range: 80 – 1000 MHz
Power Input(maximum): 1000 W
Power Gain(over isotropic): 6.5 dBi minimum
7.5 dBi average
Gain Flatness: ±1.0 dB
Impedance: 50 ohms norminal
VSWR: 3.0:1 Maximum
2:1 Average
$4,800
Shipping & Delivery
Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan
(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.
Product Overview

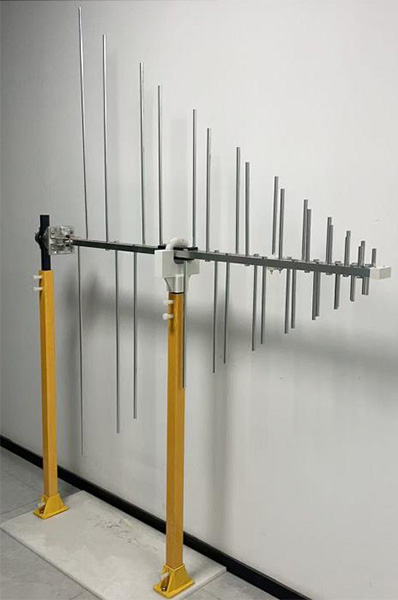

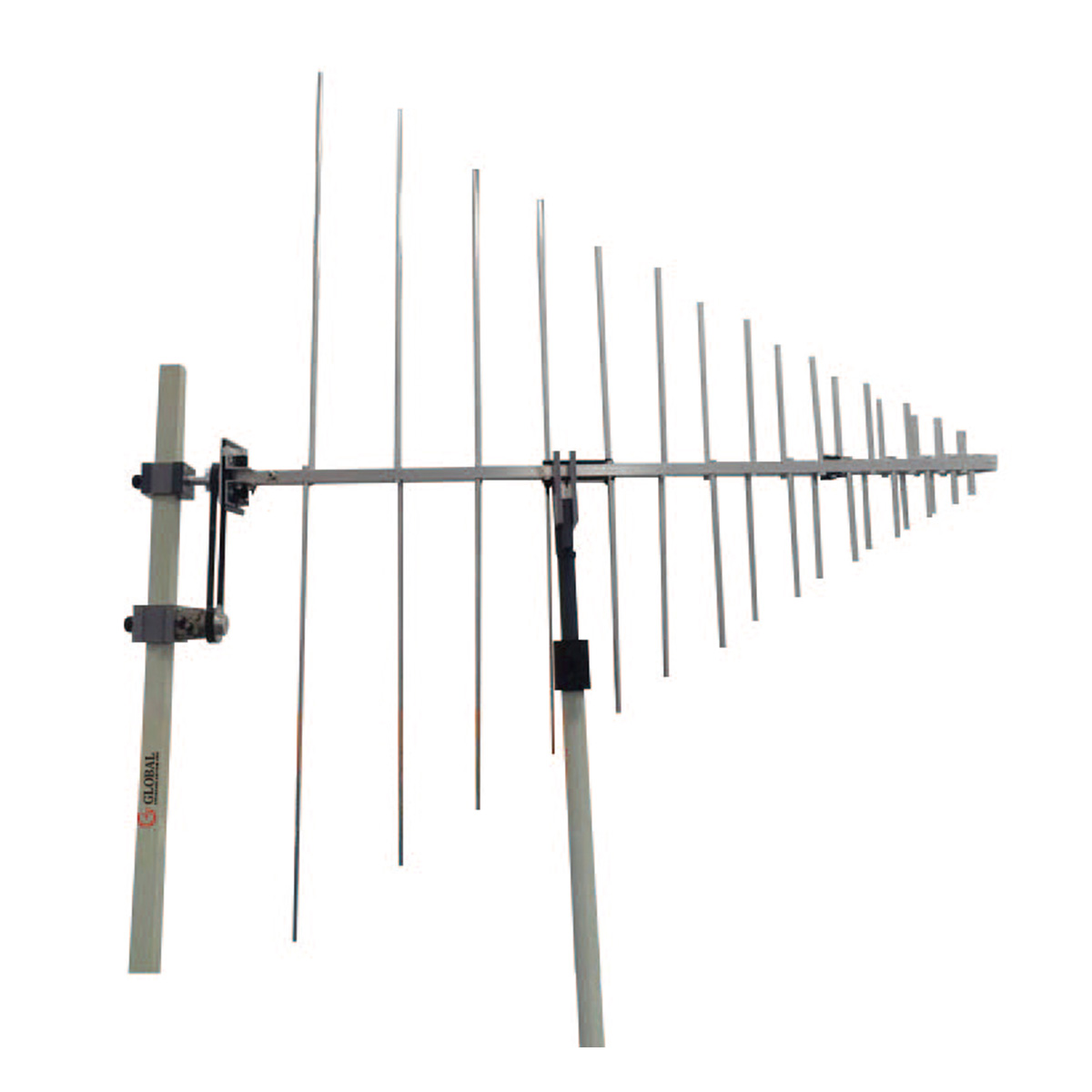

The Model 1313-2-80M1G is a wide band, high-gain, log periodic antenna that provides field intensities of up to 220 V/M. With an average gain of 7.5 dB over isotropic and gain flatness of 1 dB, the Model 1313-2-80M1G supplies the constant, high-intensity fields necessary for RFI/EMI field testing within and beyond the confines of a shielded room. It can also be used as a receiving antenna for RF emissions testing. The Model 1313-2-80M1G is compact and lightweight for ready mobility, yet is built tough for the extra demands of outdoor use and easily mounts on a flat surface or tripod. The Model 1313-2-80M1G allows polarization change without removing the antenna from the tripod.
SPECIFICATIONS
All specifications are subject to change without notice. All values are typical, unless specified.
Frequency Range: 80 – 1000 MHz
Power Input(maximum): 1000 W
Power Gain(over isotropic): 6.5 dBi minimum
7.5 dBi average
Gain Flatness: ±1.0 dB
Impedance: 50 ohms norminal
VSWR: 3.0:1 Maximum
2:1 Average
Beam Width(average): E Plane 60 deg
H Plane 105 deg
Front to Back Ratio(minimum): 15 dB
Connector: N female
Weight: 7.7 kg
Size(WxHxD): 193 cm*10 cm*180 cm
Mouting Provisions:

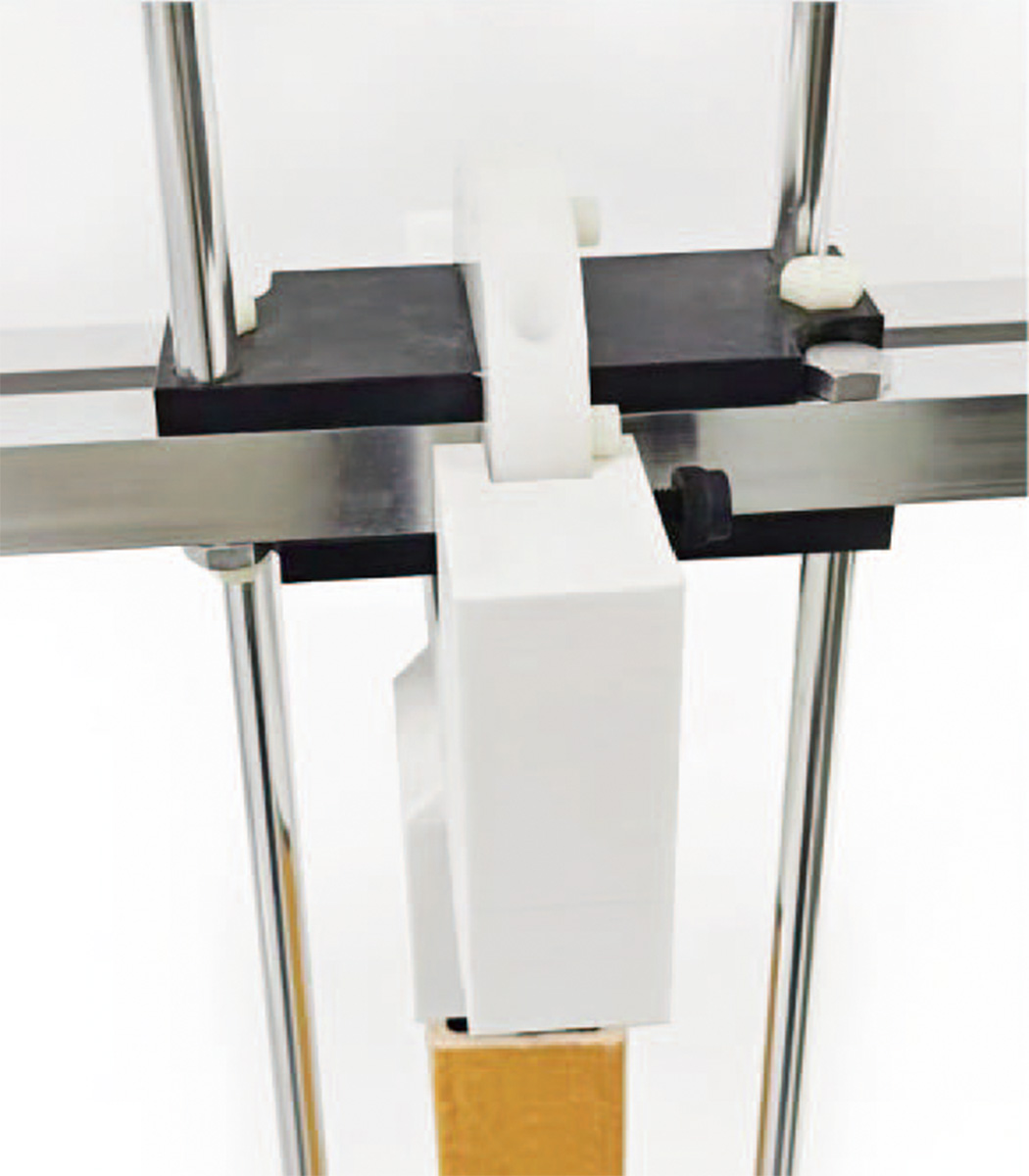

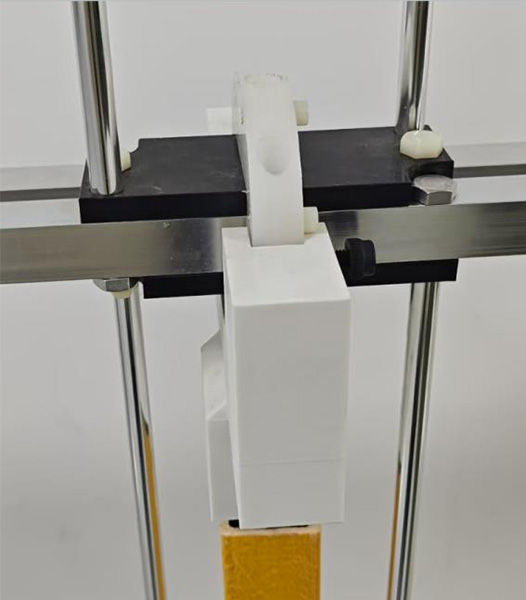

Composite bracket 1313-2-80M1G-MP available. To provide stable support for the
antenna. It also make antenna rotate around the main arm axis.
