FEATURES

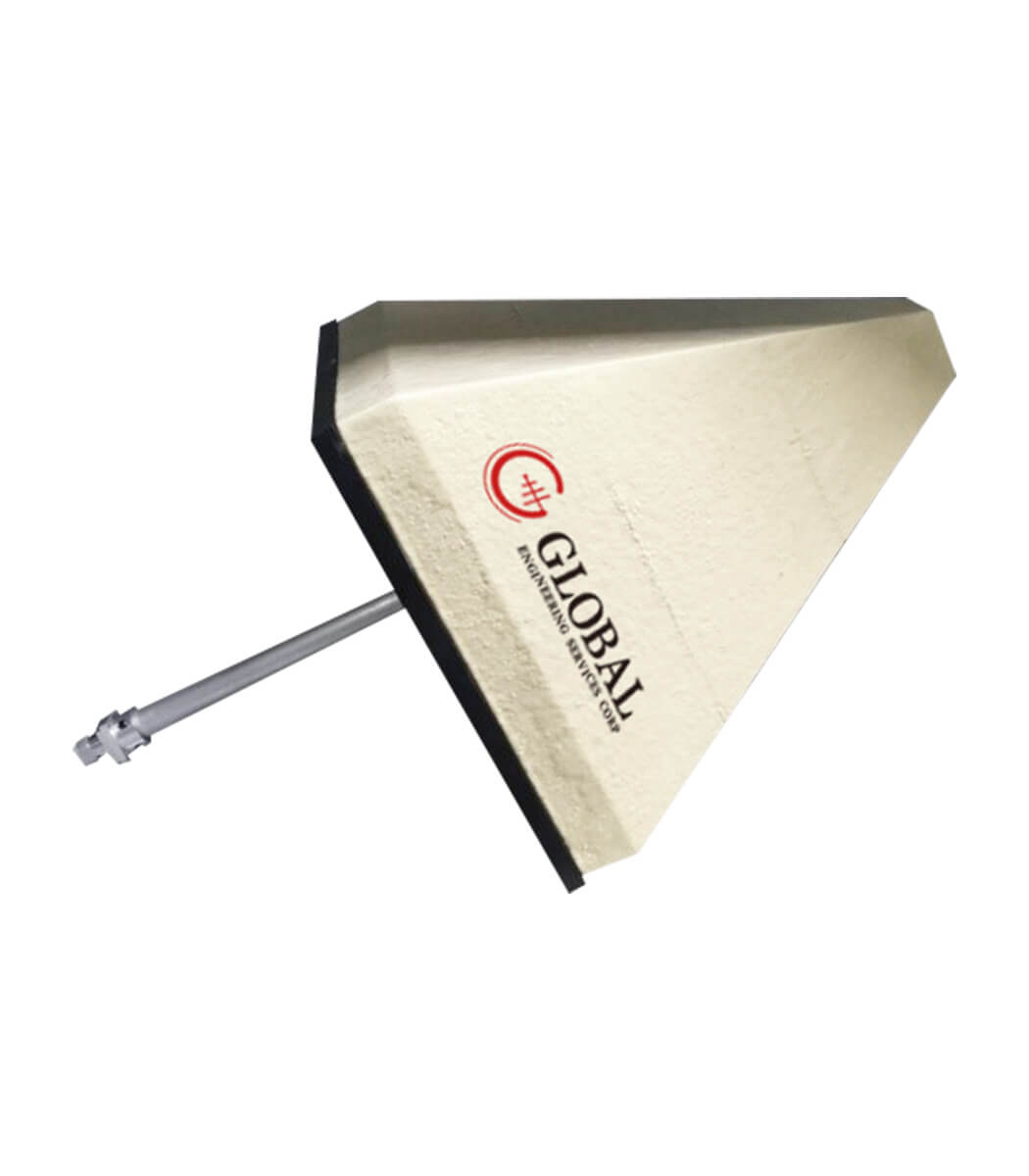

The 1313-2-700M12G is a wideband trapezoidal log-periodic antenna.It provides high power handling, nearly constant gain, and wide beam widths, which are nearly equal in the E and H planes. It is compact, light-weight and easily mounts to a bracket
APPLICATIONS
The 1313-2-700M12G is an ideal choice for appli-cations requiring large uniform field areas, such as:
> EC-61000-4-3
> MIL STD-461 RS103
> ISO 11451-2
> ISO 11452-2
> DO-160G Section 20
> Various Other Applications
SPECIFICATIONS
Frequency Range: 700 MHz–12 GHz

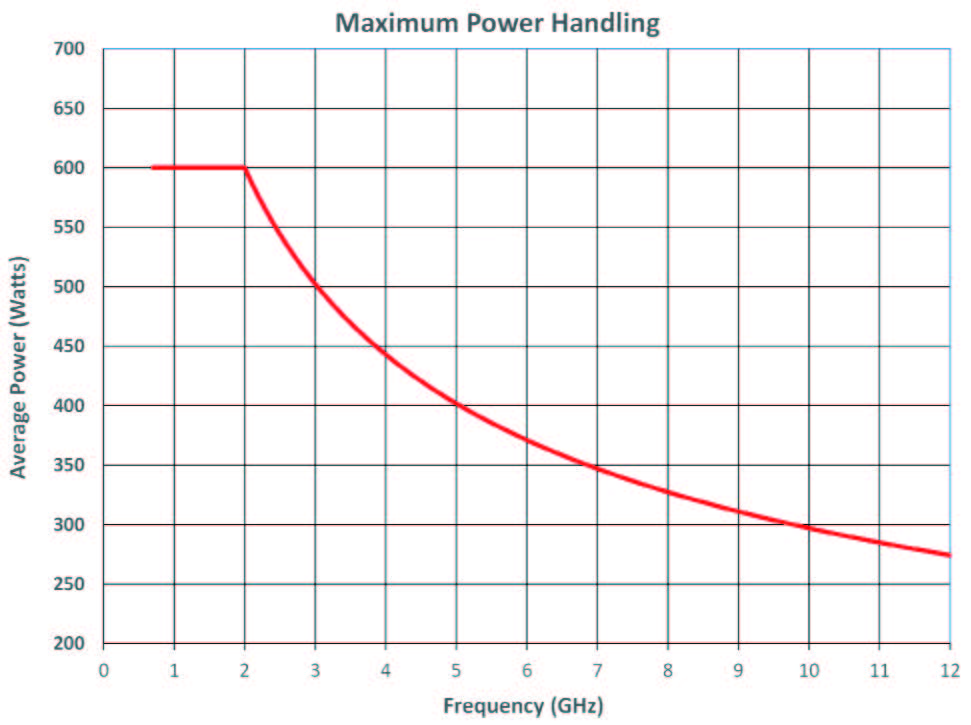

Power Input: See Curve

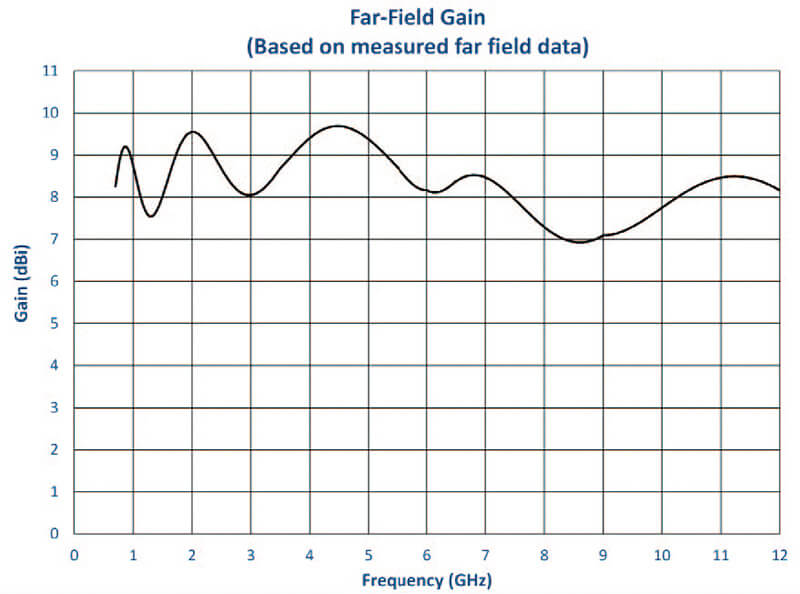

Far Field Gain (Typical): 8 dBi (See Curve)

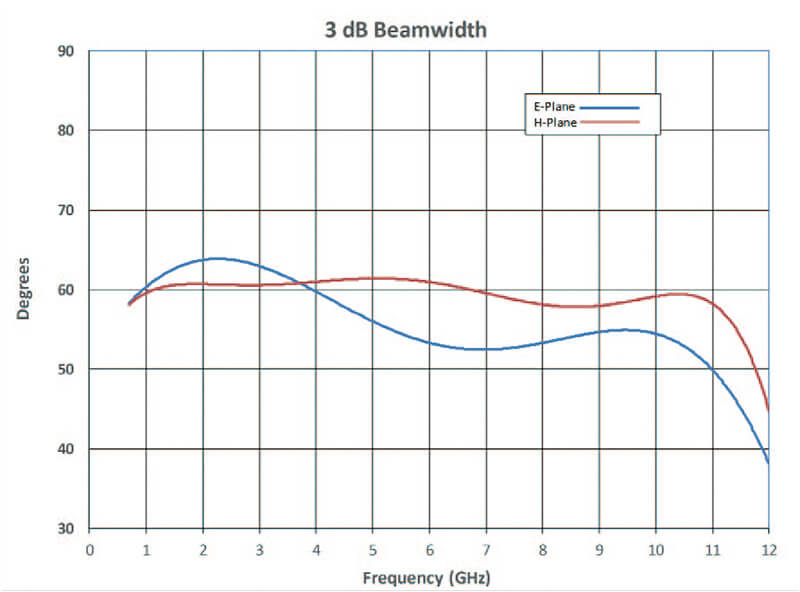

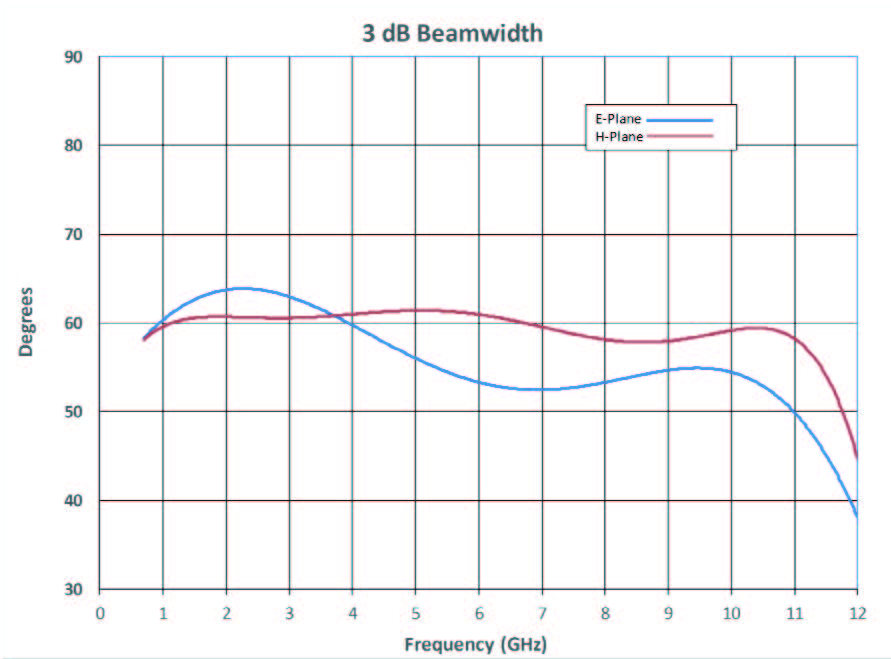

3db Beam Width (Average) (See Curve):
E-Plane: 57 Degrees
H-Plane: 60 Degrees
Vswr: 1.7:1 Typical; 3:1 Maximum Connector: Type N (F)
Weight: 1.7 Kg (3 lbs, 12 oz)
Size (Wxhxd): 28 x 28 x 55 cm (11 x 11 x 21.5 in)
Mounting: May Be Bracket Mounted with Included Mount.

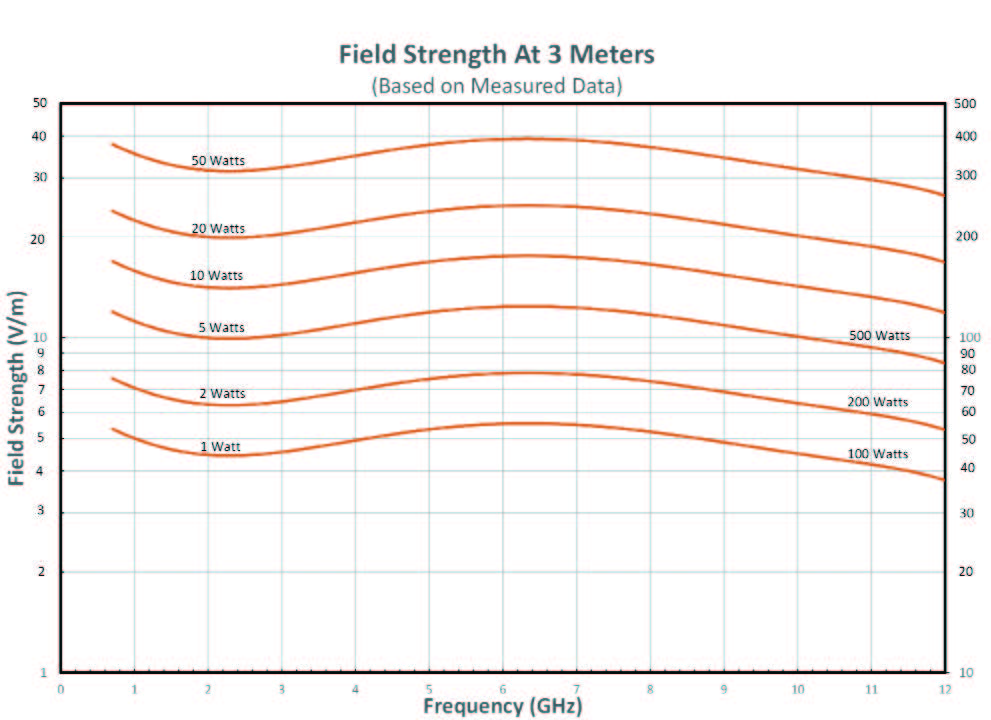

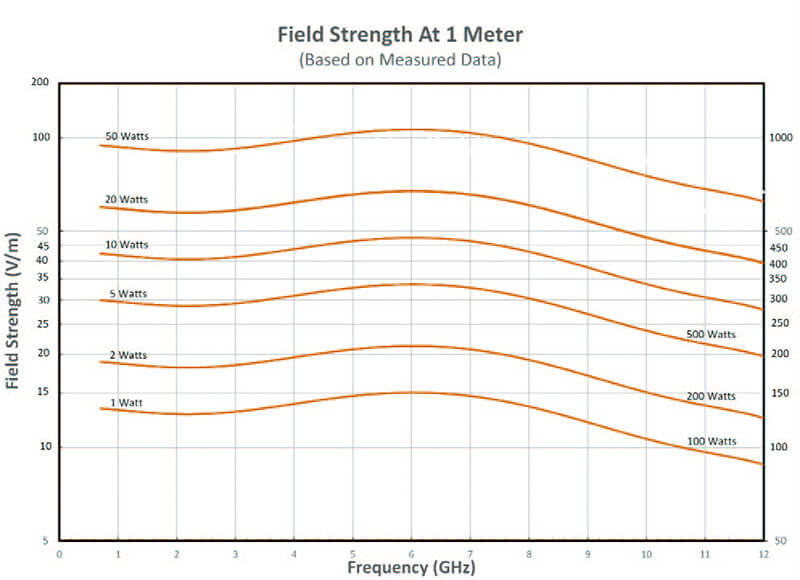

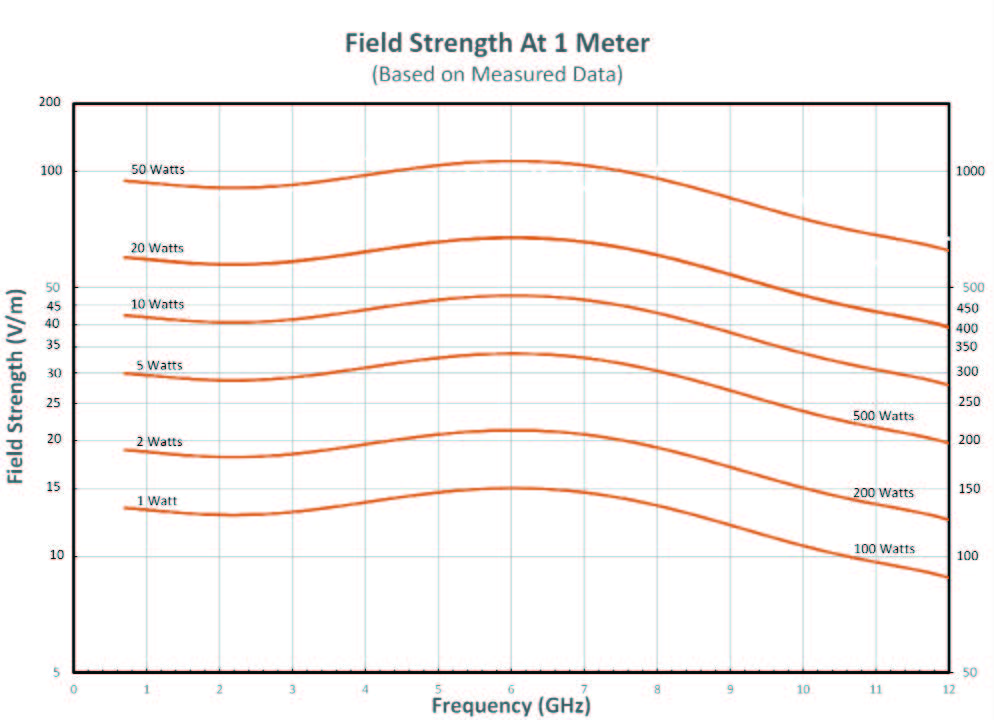

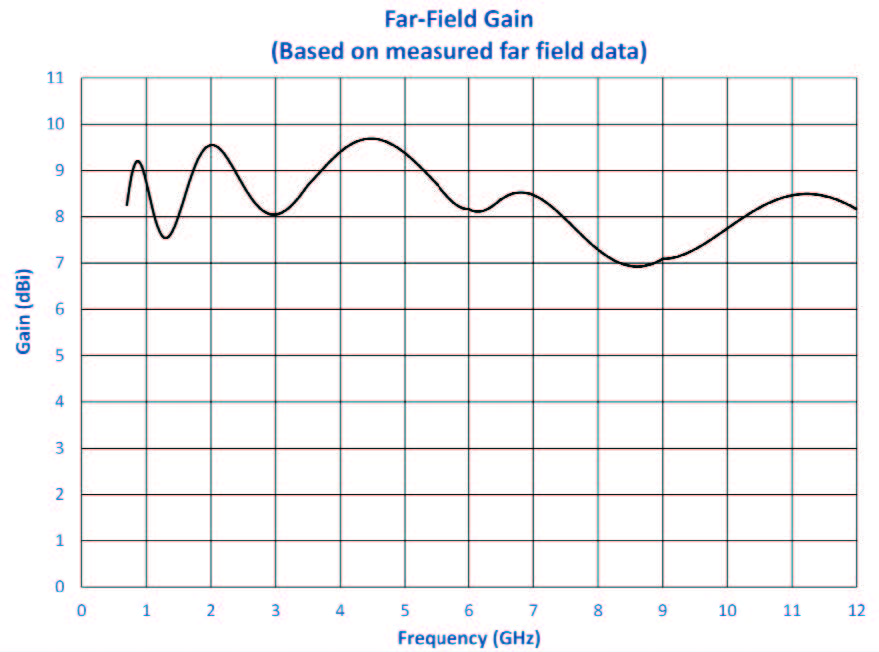

TYPICAL DATA

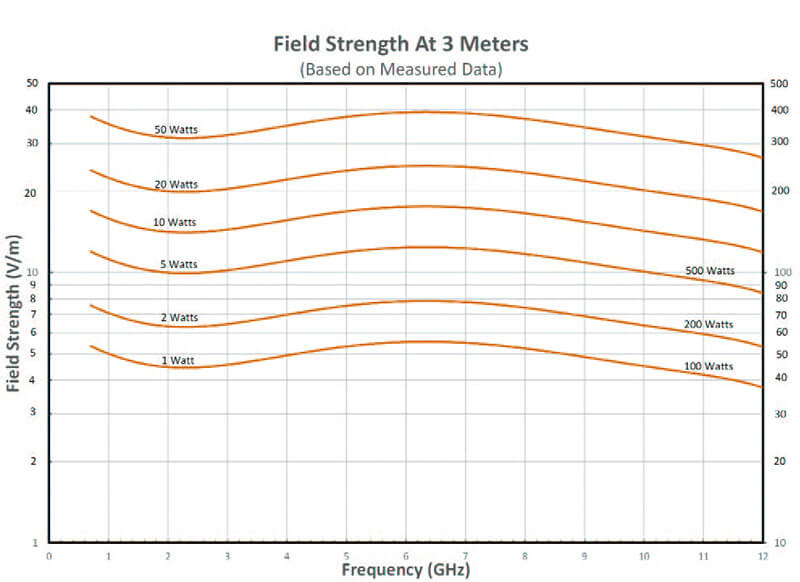

Field strengths shown are typical for free space. Proximity to conductive surfaces and the presence of the device under test will influence actual levels.
