Features
Wide bandwidth from 30 MHz to 3 GHz.
High gain of 8dBi above 200MHz.

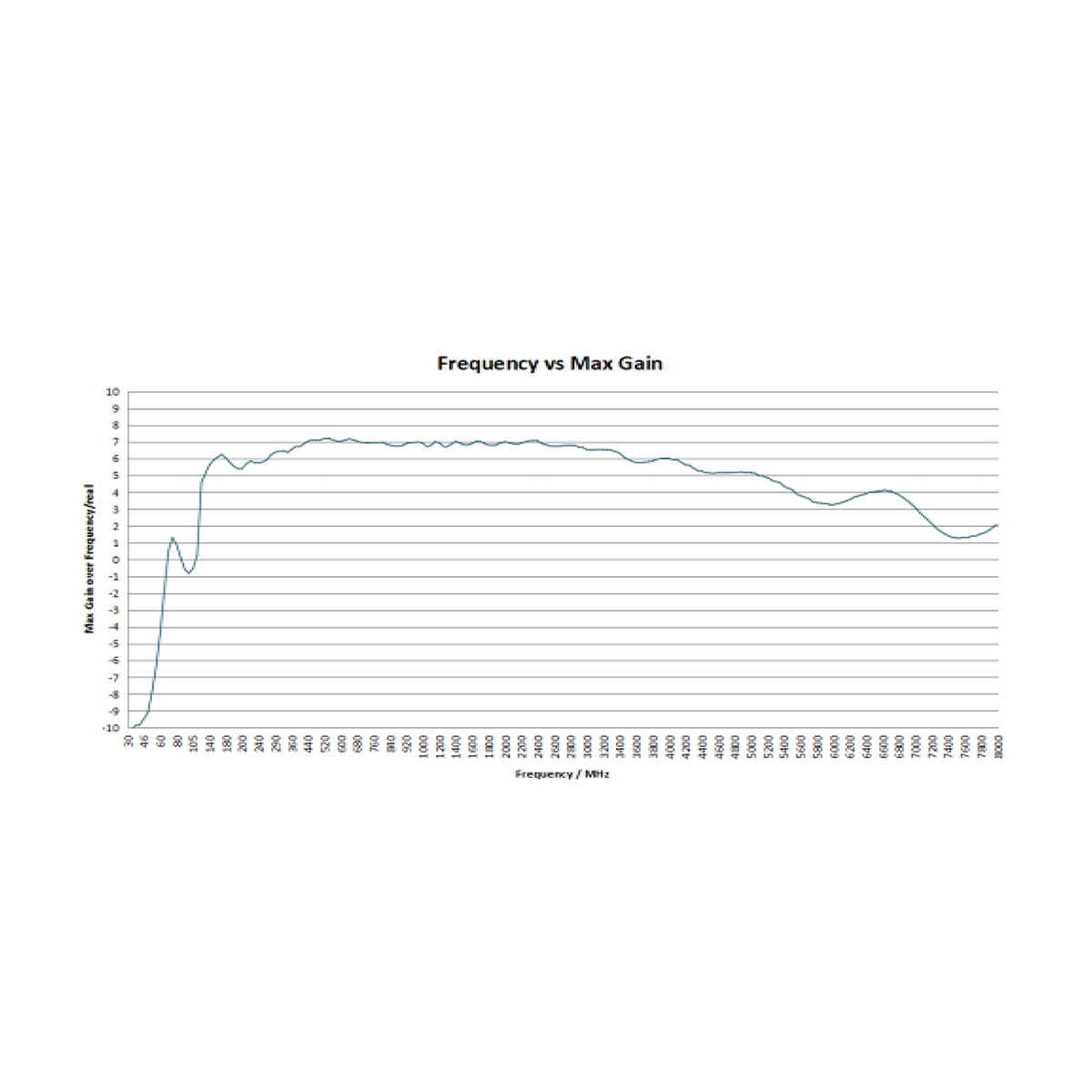

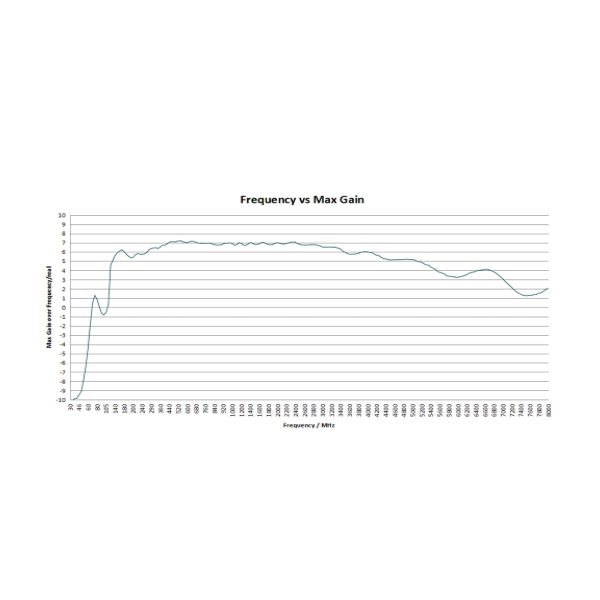

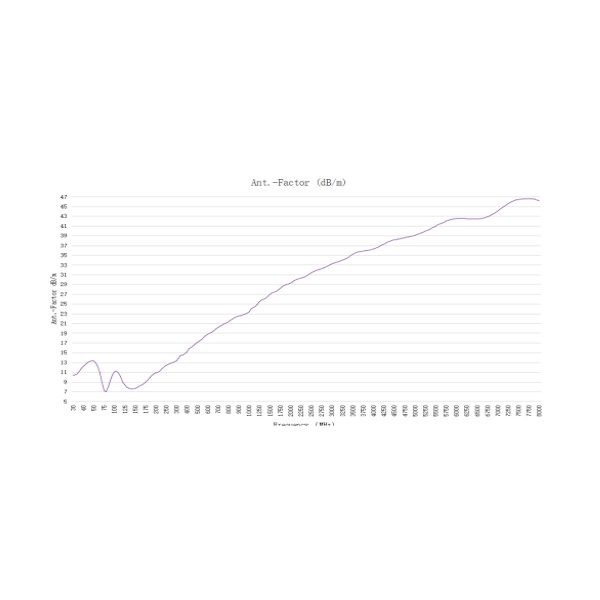

Detailed calibration data with 533 points.
Compact and study design.
MTBF over 200,000 hours.
$5,100
Shipping & Delivery
Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan
(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.
Product Overview

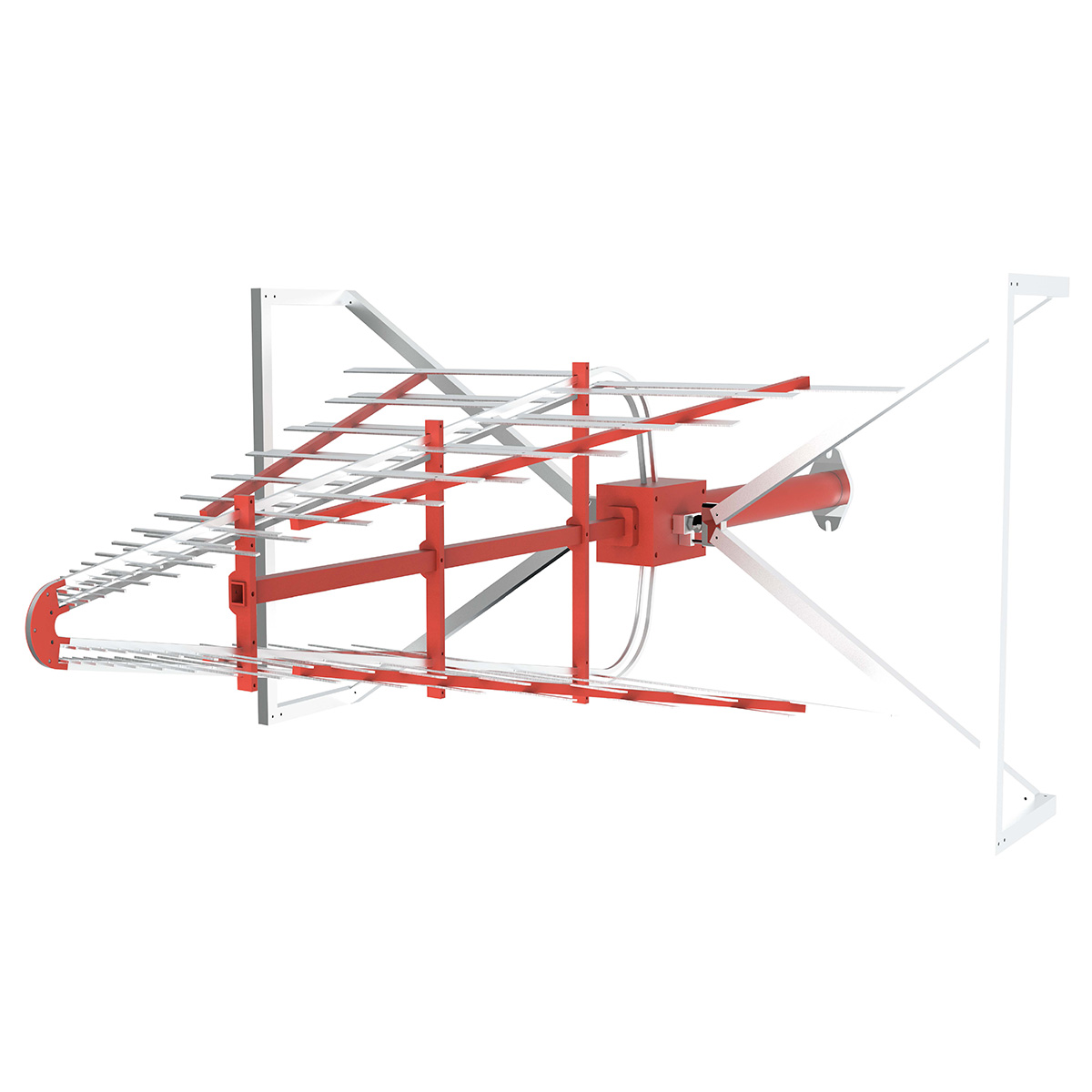

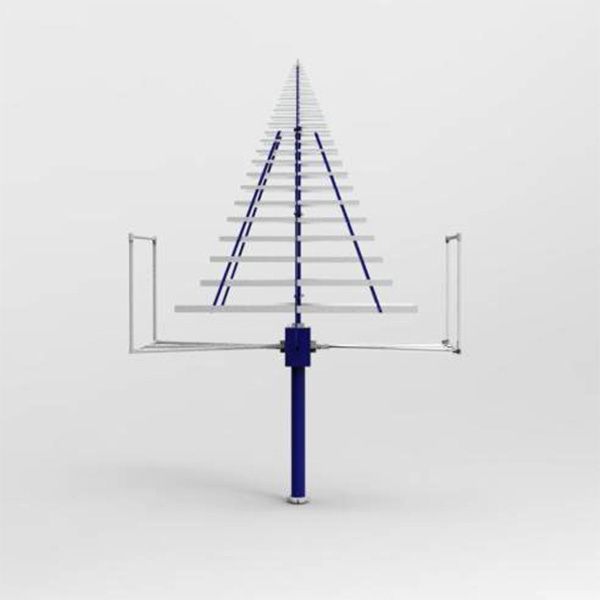

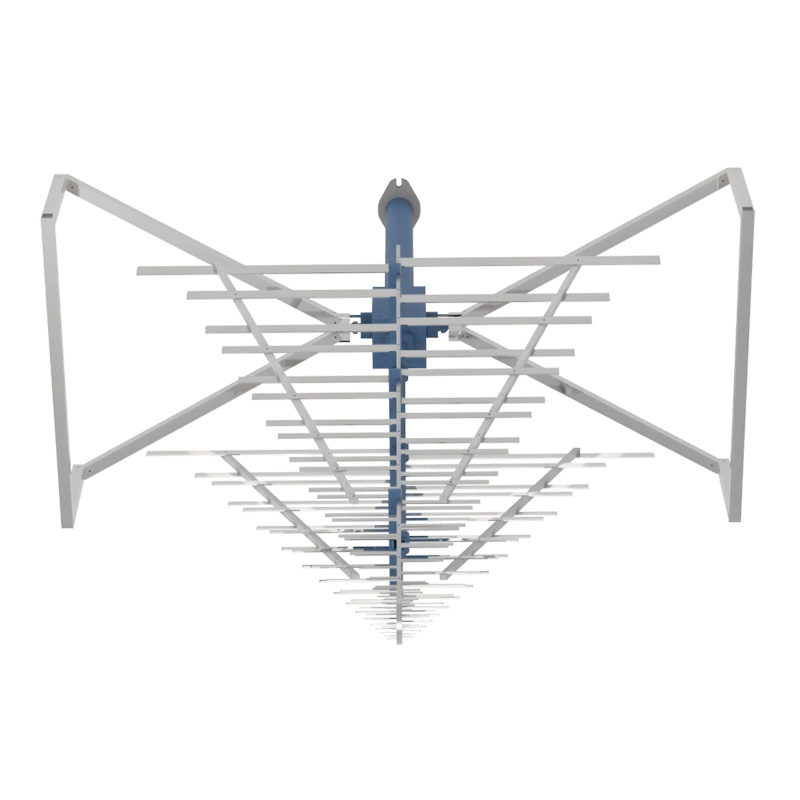

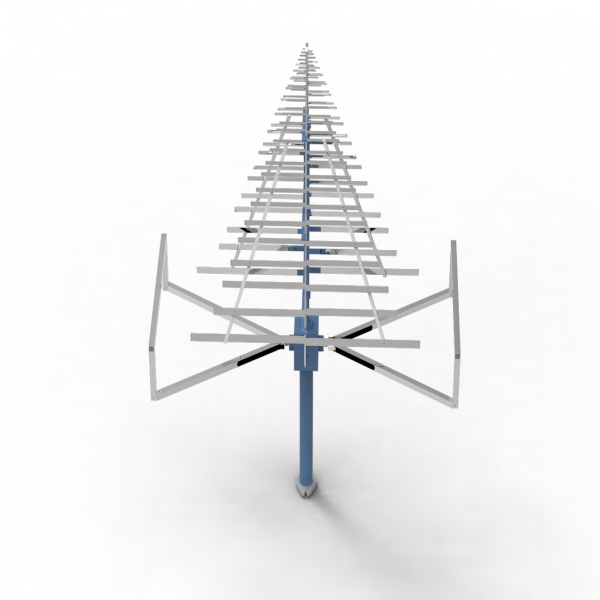

The OVLP00330 is a high-performance log-periodic antenna, designed for emission measurement and immunity tests, operating in a wide frequency range from 30 MHz to 3000 MHz. This design helps reduce measurement times since users do not need to change antennas during the process. With symmetry of radiation patterns across the E, H plane and matching (VSWR), the OVLP00330 is also commonly used in EMS measurements where field strengths of 10V/m or higher are required.
This model integrates the characteristics of both biconical and log-periodic antenna. Typically, the V-shaped part of the antenna guarantee to increase gain and achieve an almost rotationsymmetrical radiation pattern. It features a compact size and light weight construction, making it easy to handle and install, while its high gain and low antenna factor are also another key strength to improve the performance of the antenna.
Features
Wide bandwidth from 30 MHz to 3 GHz.
High gain of 8dBi above 200MHz.
Detailed calibration data with 533 points.
Compact and study design.
MTBF over 200,000 hours.
Applications
Satellite communication
EMC measurements.
Directionai radio communication.
Classification
Frequency: 30 MHz -3 GHz
Polarization: linear
Cross-polarization: <-25 dB (typ.)>
MTBF: 100000 h
Nominal impedance: 50 Ω
Operating temperature range: -40 to +40’C
Gain (dBi): 8.5 dBi (typ.)
VSWR: <2 (typ.)
Max Input Power(W): 225 W
RF connector: N female

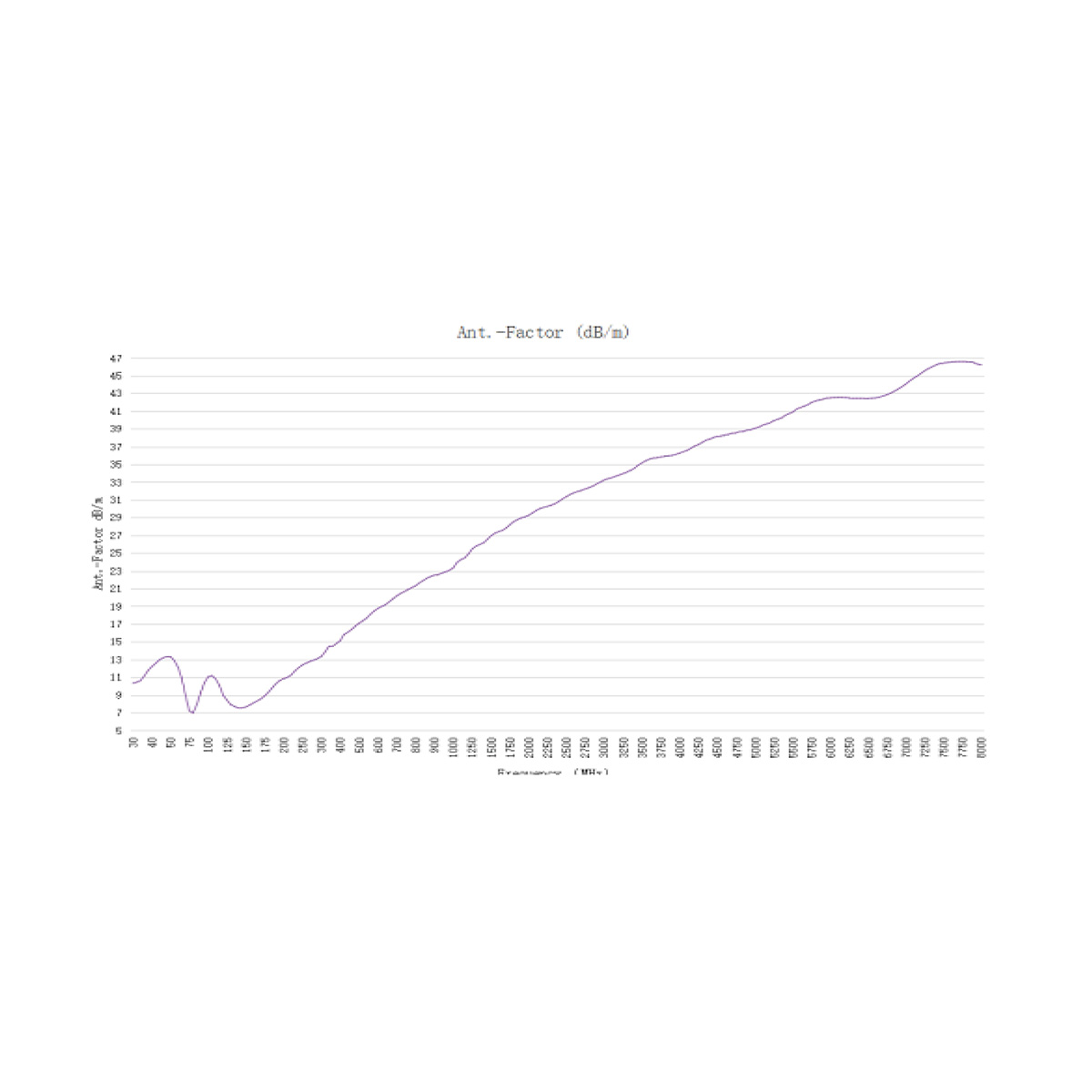

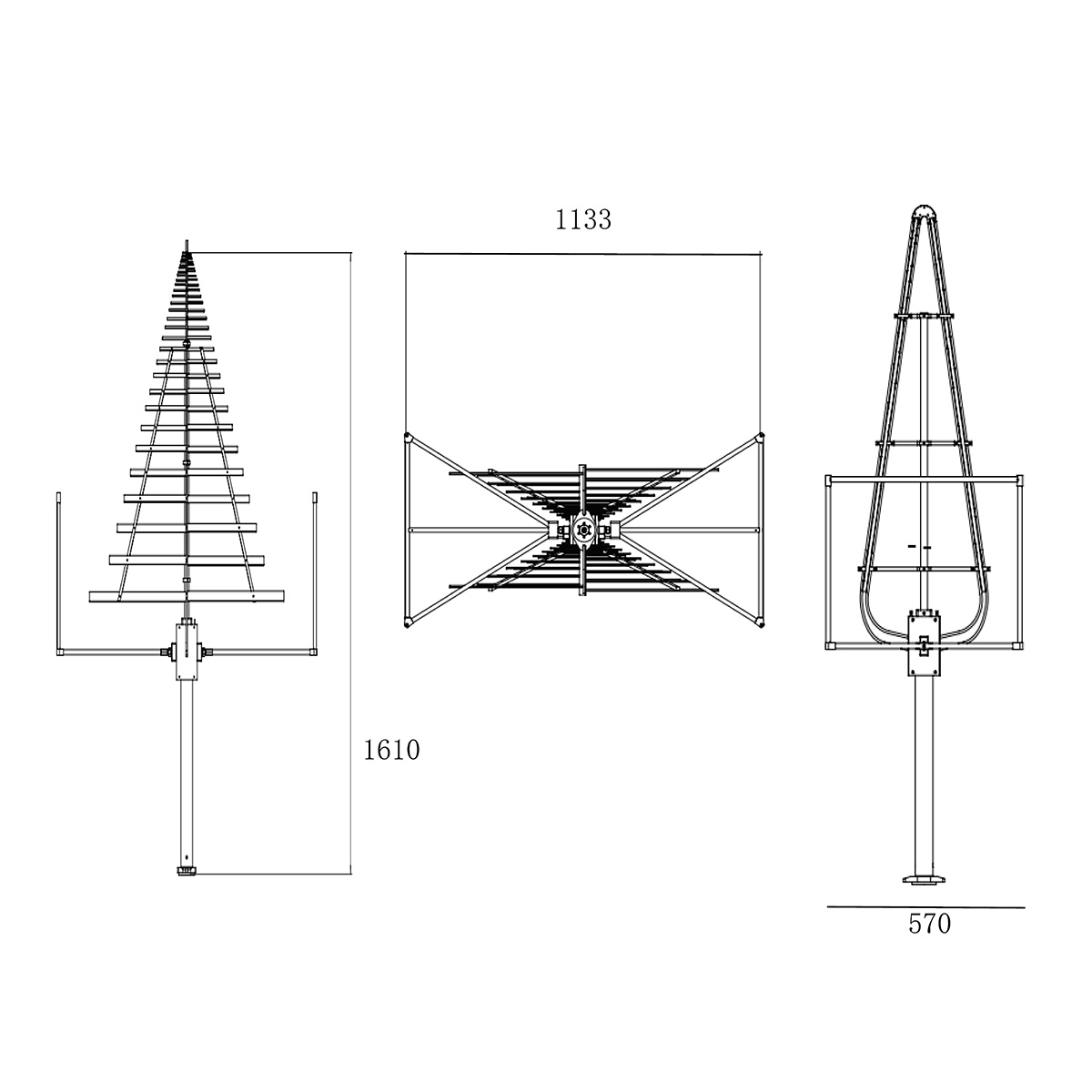

Dimensions(m): 0.57*1.43*1.65
Weight (kg): 5
All specifications are subject to change without notice. All values are typical, unless specified.
