FEATURES
>Noise Figure ≤ 3.0 dB
>Unconditionally Stable at all Temperatures
>Internally Regulated DC Voltage
>50 Ohm Matched Input/Output
>Field Replaceable 2.92mm K Connectors
>Excellent Group Delay and Phase Linearity
>0.009 Inches Diameter RF In/Out Feed Through
>Operating Temp. ‐55 C to +85 C
>3 Year Warranty
$7,550
Shipping & Delivery
Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan
(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.
OPTIONS
>Optimized Performance over Selected Bandwidth
>Internally DC Block Input (Output DC Block Standard)
>Hermetically Sealed Package
>Improved Gain Flatness
>Improved IN and OUT VSWR
>Gain and Phase matching
>Lower Noise Figure

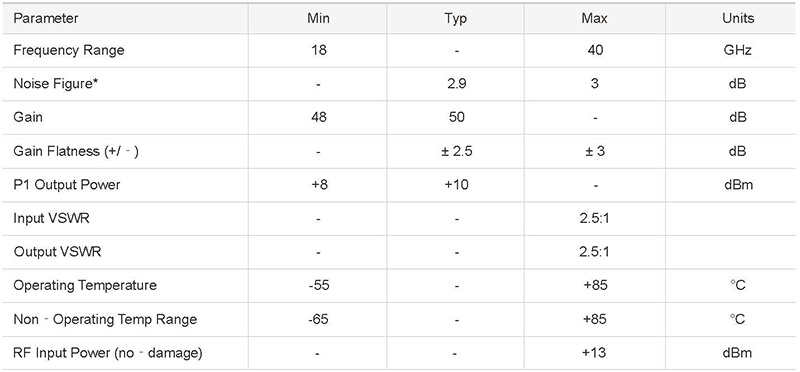

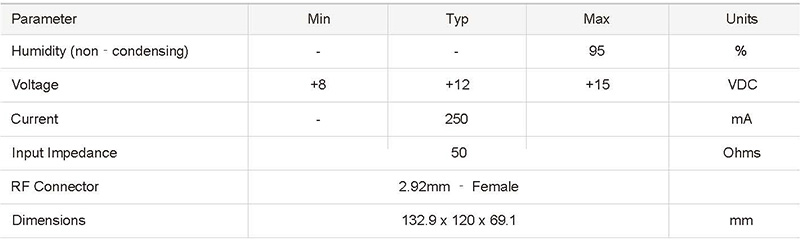

SPECIFICATIONS (23°C)
SPECIFICATIONS (23°C)
All specifications are subject to change without notice. All values are typical, unless specified.
* Noise source used for measurement from 18GHz to 42 GHz is HP346C-K01 .
NF uncertainty (approx. 0.3 dB). 0.2 dB due to ENR of HP 346C-K01, and 0.1 dB due to the gain modulation of the unit caused by the HP 346C-K01 source impedance change in the ON and OFF state.

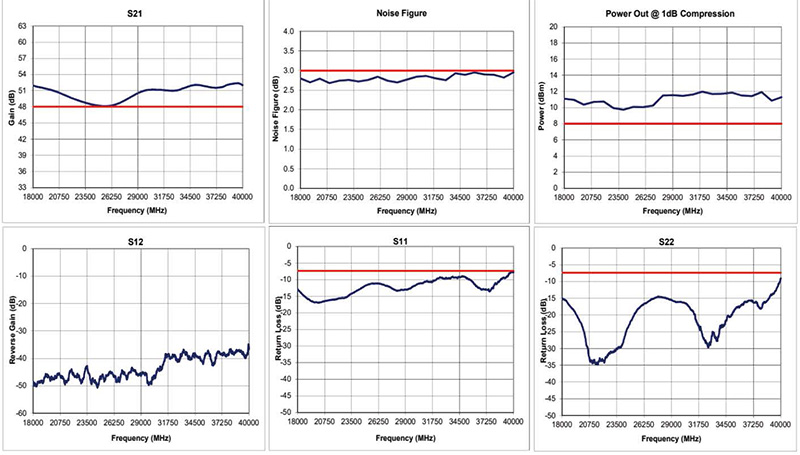

TYPICAL DATA
