FEATURES
>Rapid, Predictive Site Validation
>Wide Frequency Range 1GHz to 18 GHz
>Battery Operated – Extended Battery Life Operates > 5 Hours Per Charge
>Stable RF Output
>Three-Year Warranty
DESCRIPTION

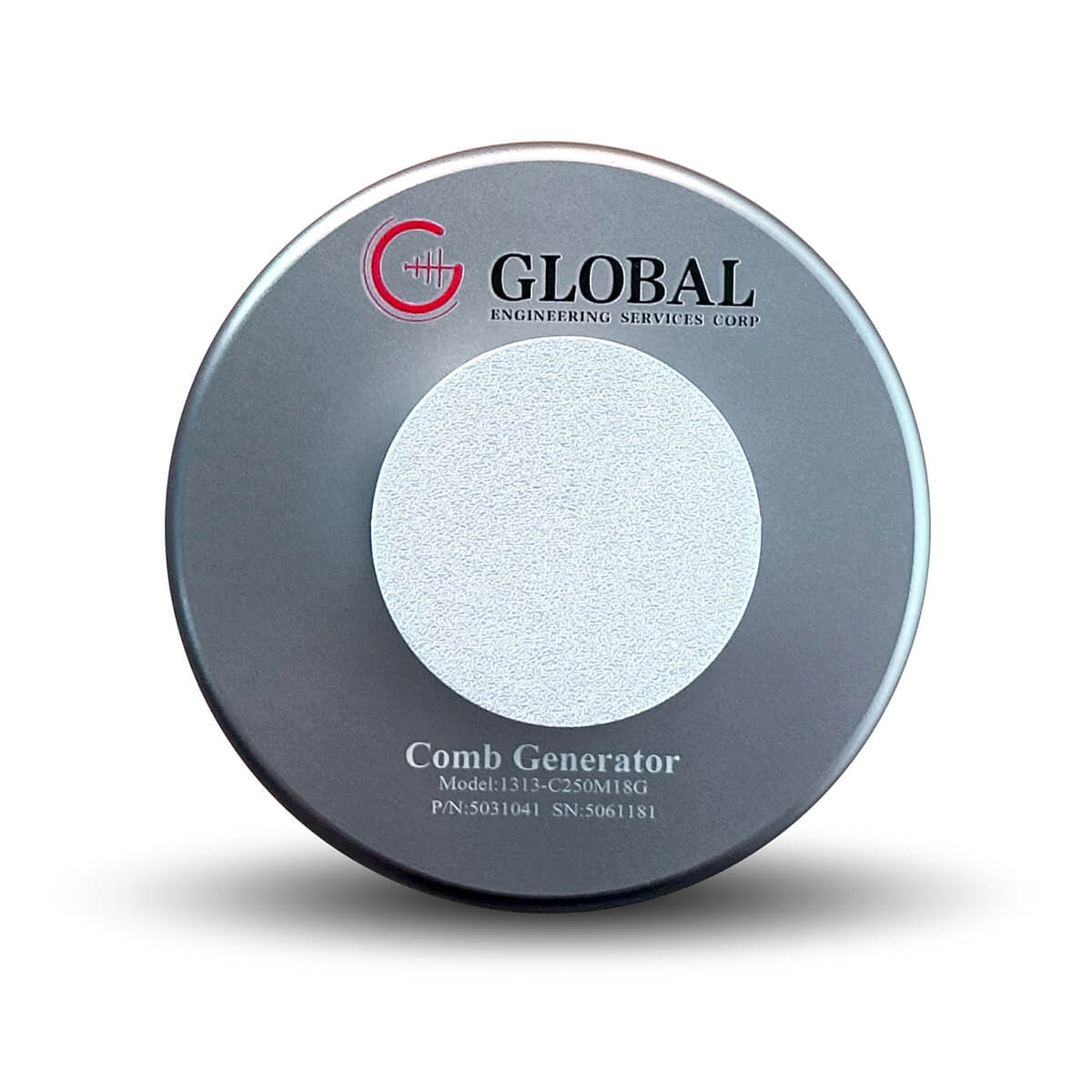

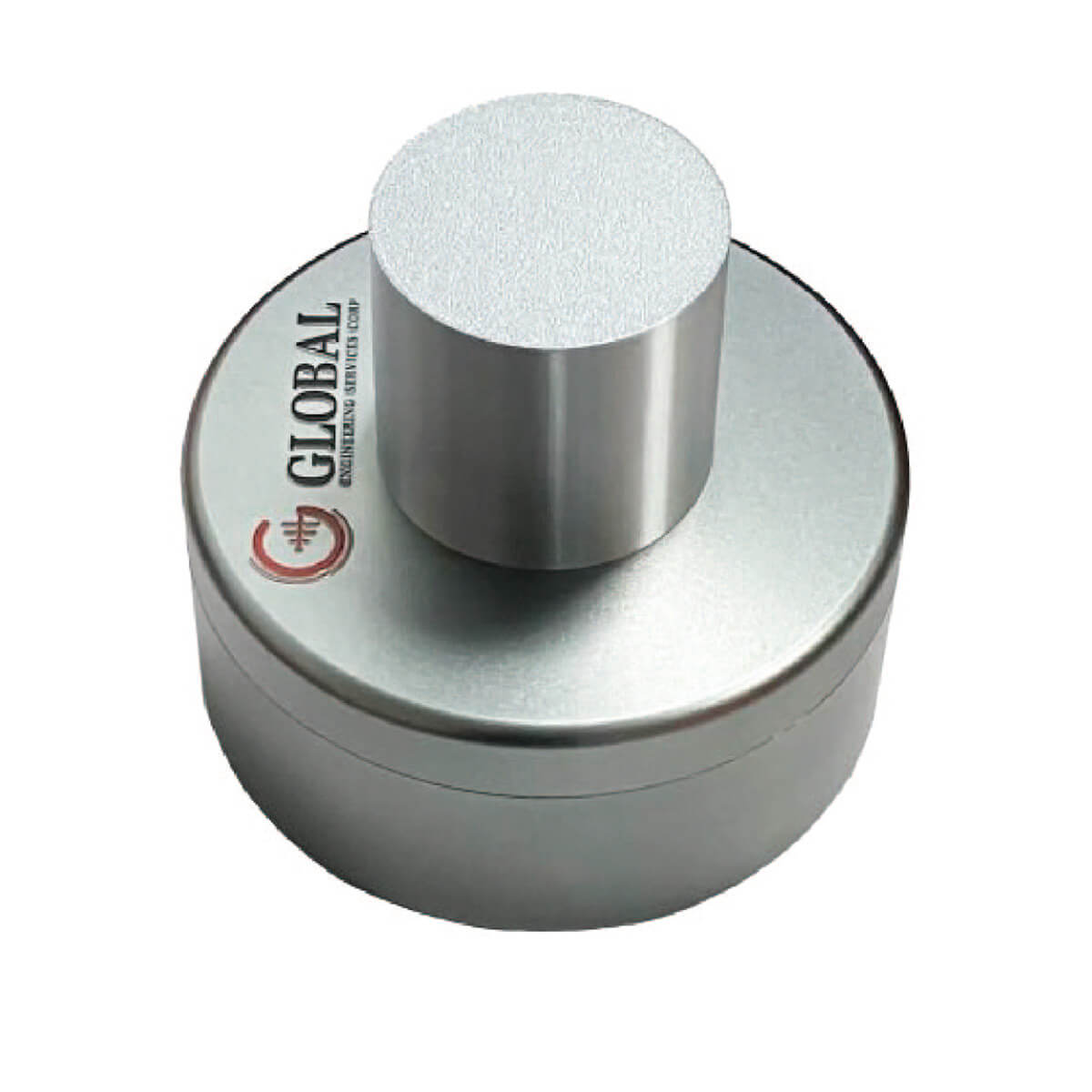

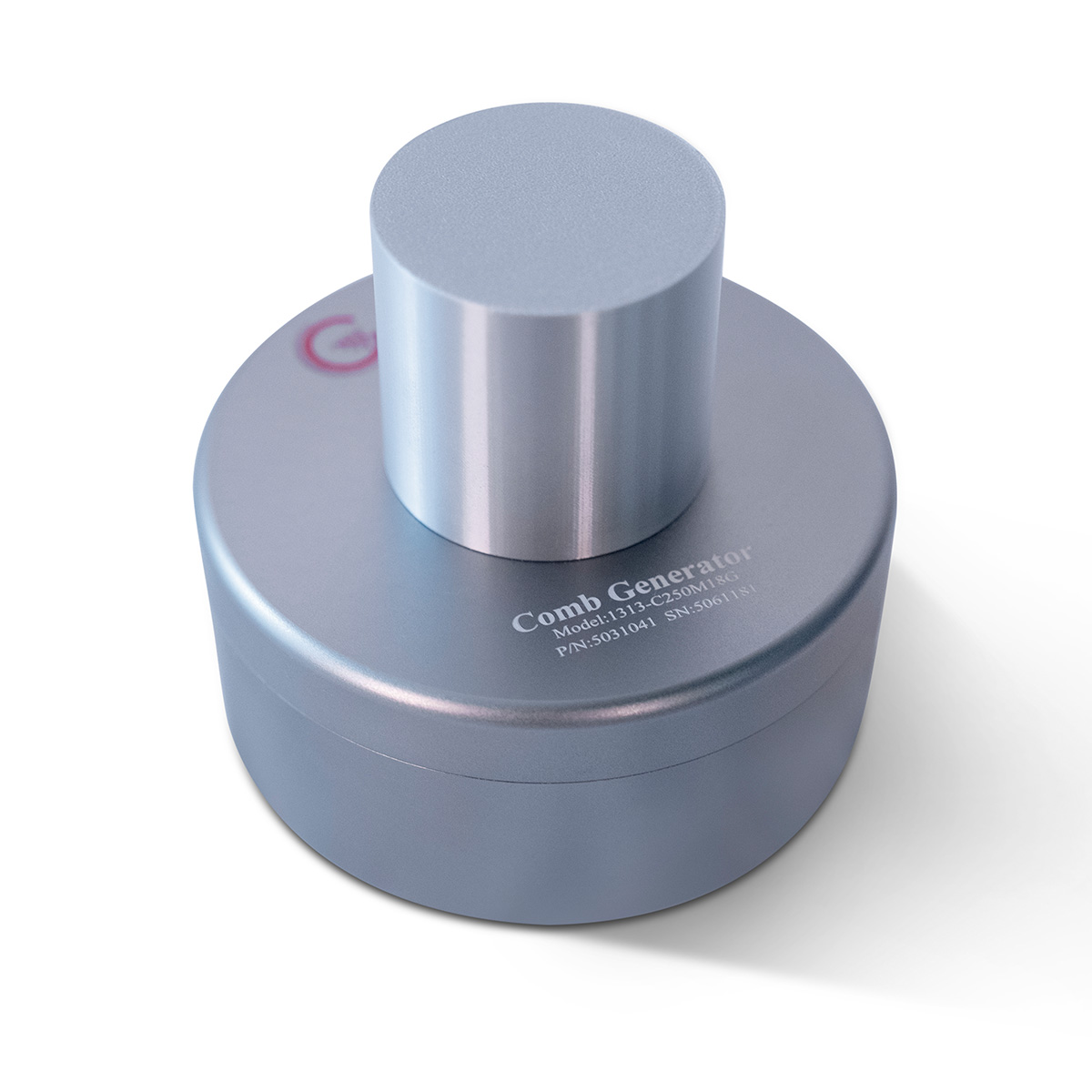

The 1313-C250M18G comb generator is a radiation reference signal source with a frequency range of 1 Ghz to 18 Ghz at 250 MHz intervals. The utility model has the advantages of compact structure, light weight and convenient operation. The comb generator is equipped with an integrated biconical antenna up to 18 GHz.
The 1313-C250M18G is designed to operate on battery power in order to reduce the potential for unwanted reflections caused by external cabling. When fully charged, the internal battery pack allows for continuous operation of the Comb Generator for up to 5 hours.
Using a comb generator, routine on-site inspections can be performed in just a few minutes by reading several selected output frequencies of 1313-C250M18G and comparing the readings with reference data.
SPECIFICATIONS
All specifications are subject to change without notice. All values are typical, unless specified.
Intended Application: Radiated Reference Signal Source (for OATS, SAC, FAC, etc.)
Frequency Range: 1 GHz to 18 GH2
Frequency Step Size: 250 MHz
Frequency Stability: 20 ppm
Amplitude Stability: ± 0.1 dB
Time Stability: <1 dB over 12 Months
Charging Adapter Output: 12 VDC
Battery Type: 7.4V Li-on, 1500 mAh
Battery Operation: >5 Hours Typical (Fully-charged Battery)

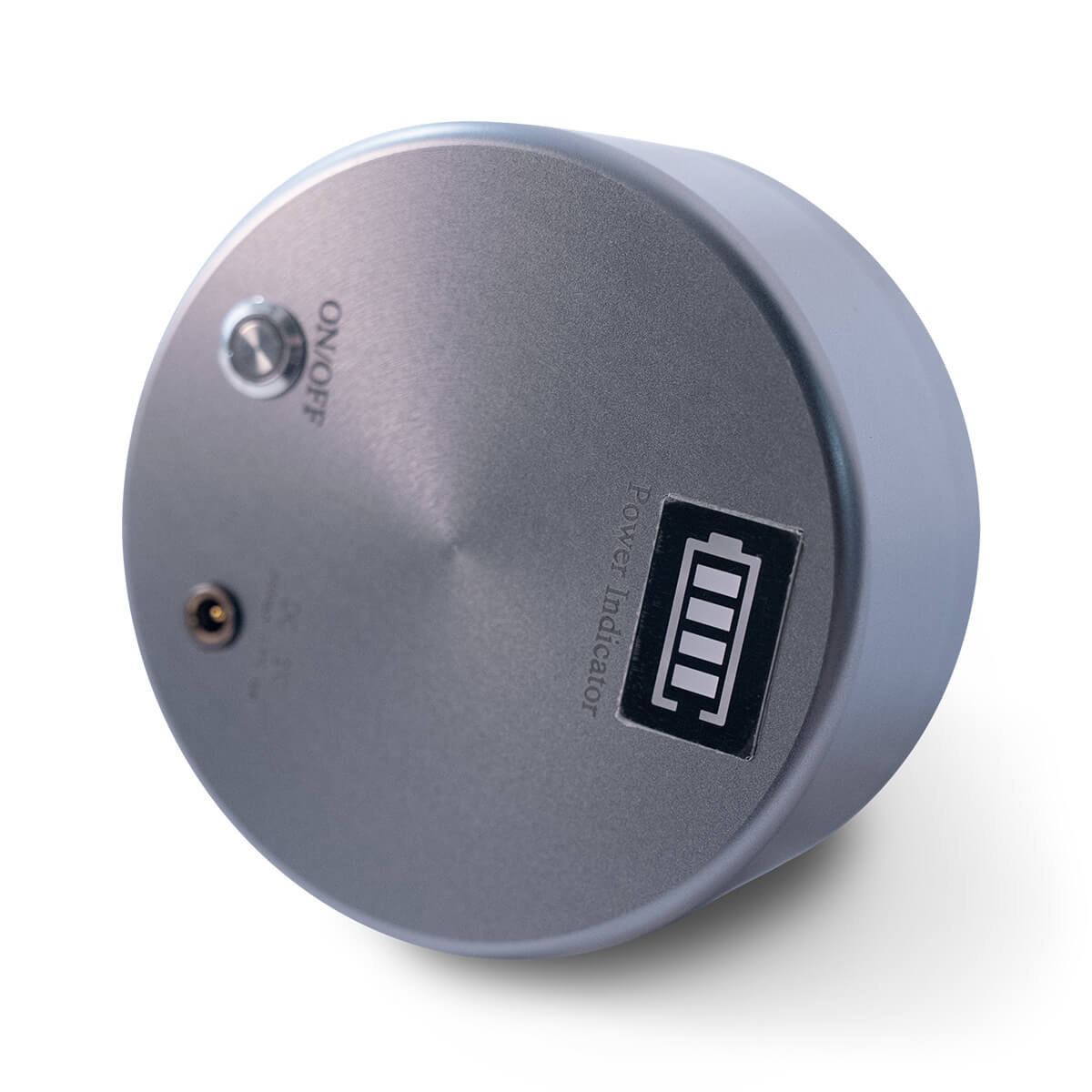

External LED Indicators: Battery Level, Power On
Antenna Type: Biconical Antenna
Generator Dimensions: 12 cm x 12 cm x 11 cm
Weight: 0.6 kg
