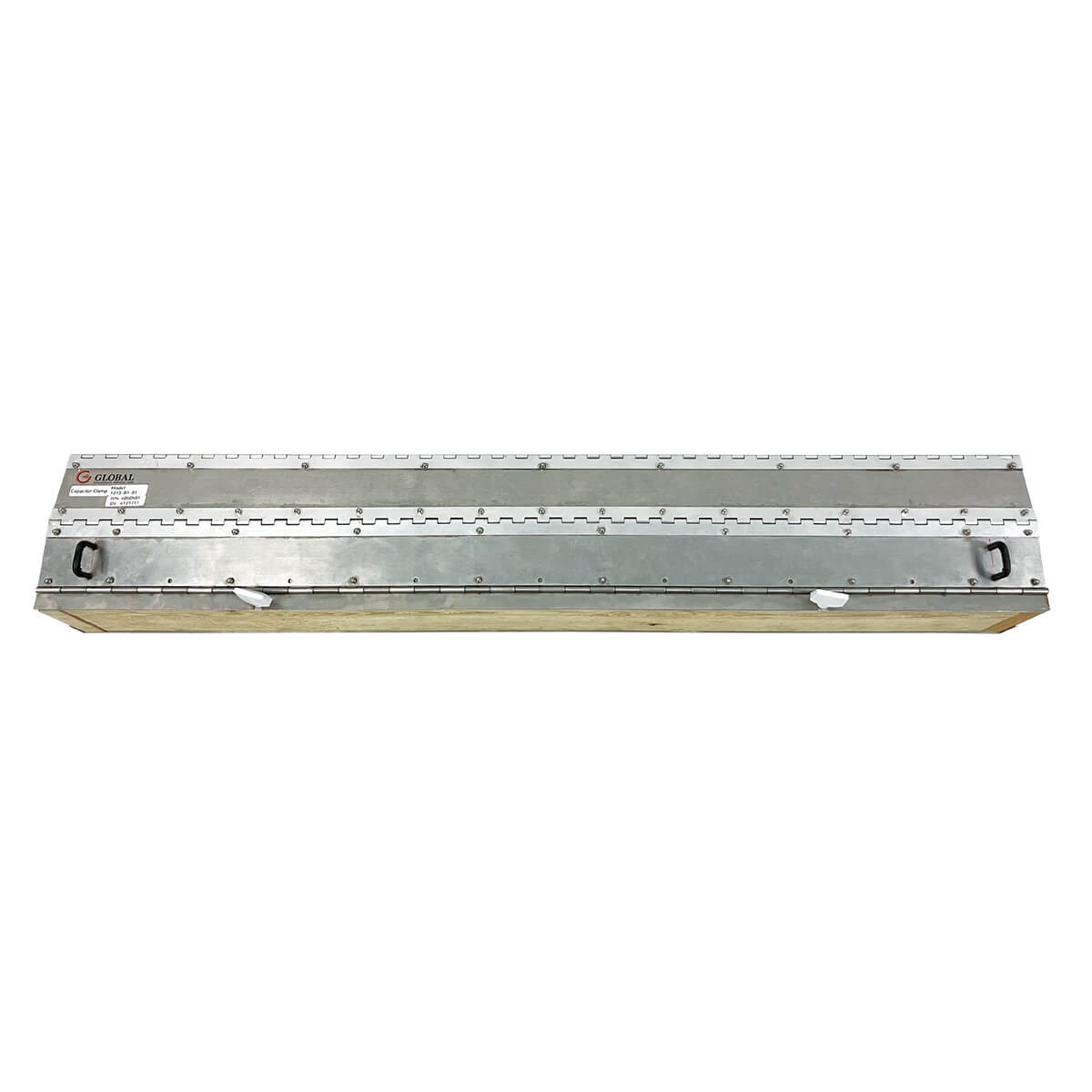

HIGHLIGHTS
> Construction as per IEC 61000-4-4 Ed.3
> EFT/Burst Testing of Signal- and Datalines
> Active Coupling Length 1 m
> Permissable Burst Voltage 7 kV
> For Cable Diameter up to 40 mm
FOR TESTS ACCORDING TO
> IEC 61000-4-4
> EN 61000-4-4
> IEC 61000-4-18
> EN 61000-4-18
APPLICATION AREAS
Industry, Telecom, Medical, Residential, Broadcast
PRODUCT DATA
Technical Data
Max Voltage: 7.0 kV
Dimension: 140 mm x 1000 mm
Coupling Plate Height: GND – couplingplate, 100 mm
Connector: High voltage connector, coaxial
GND Connection: 4 mm plug, banana
EUT Cable: Up to 40 mm diameter
Weight: 10.6 kg
General Data
Temperature: 10°C to 40°C
Rel.Humidity: Max. 85 %, non condensing
Atmospheric Pressure: 86 kPa (860 mbar) to 106 kPa (1,060 mbar)

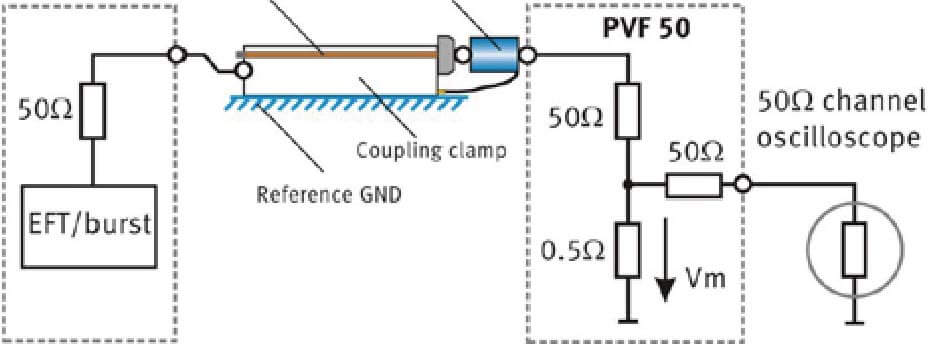

COUPLING CLAMP CALIBRATION
The calibration of the capacitive coupling plane is performed with the open circuit voltage setting at the EFT/burst generator (50 ohm output): 2,000 V
Resulting output voltage across the PVF 50 (50ohm matching resistor): 1,000 V
Measuring voltage Vm: 10 V
Measured voltage considering the 50 ohm input impedance of the oscilloscope: 5 V
Resulting attenuation (theoretical): 400:1
