FEATURES
Frequency range: 0.2-3GHz
Gain: 6-15dBi.
VSWR: 1.5:1 Typ.
Power handling: 2000W Max. with N-Type and 3000W Max. with DIN connector
OBH-230 Broadband dual ridged horn antenna is effective for EMC testing systems and Telecommunication applications
SKU: OBH-230
Categories: Broadband Dual Ridged Horn Antenna, EMC Antenna, EMC-Broadband dual ridged horn antenna, RF Antenna
Tag: Frequency
$8,250
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION

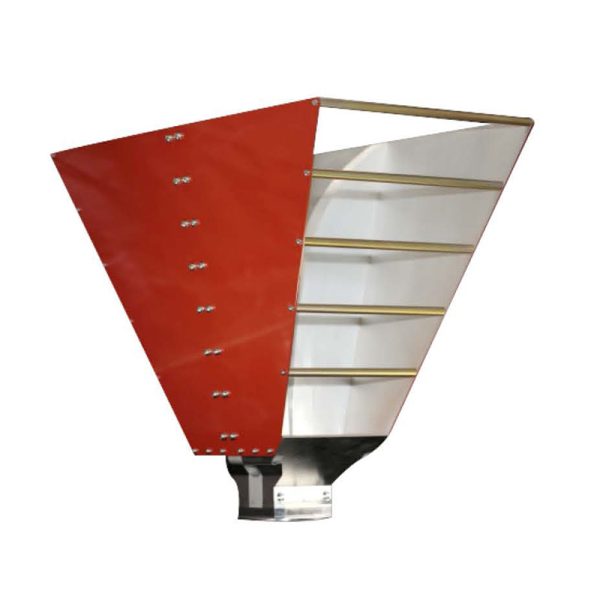

The OBH-230 Dual-Ridged Horn Antenna, a flagship product from RFecho, is engineered for superior performance across a wide RF frequency spectrum. This broadband antenna ensures consistent signal strength with its stable gain and low VSWR, providing optimal power transmission and superior signal integrity. Its excellent design effectively suppresses higher-order modes, delivering clear and precise signals even in challenging RF environments. The lightweight construction, combined with robust features, makes it ideal for applications requiring mobility and field deployments.
The OBH-230 is crafted with precision, offering features such as a precision pin for accurate polarization alignment and a high-reliability coaxial connector. Its versatile mounting options include a mounting flange and an integrated coaxial transition with a high-precision connector, making it adaptable to various setups.
With all the above benefits, it is ideal for a variety of demanding applications. Firstly,
It is highly suitable for TV broadcasting, where over-the-air television signals operate in lower frequency bands, as well as other broadcast services. In the realm of cellular communications, this antenna supports 2G, 3G, and 4G networks, leveraging lower frequencies in GSM, UMTS, and LTE technologies for robust cellular network coverage. On top of that, this antenna covers both Very High Frequency (VHF) and Ultra High Frequency (UHF) bands, making it an essential tool for various communication and broadcasting services. It’s also commonly used in EMC (Electromagnetic Compatibility) testing, ensuring equipment performance in the lower frequency range. Additionally, it supports RF testing for IoT devices and LPWAN communications like LoRa, Sigfox, and NB-IoT, which operate at these lower frequencies. In the domain of wireless communication, the 0.2GHz to 3GHz antenna is effective for testing systems like Wi-Fi (2.4GHz band) and Bluetooth, making it a versatile tool for RF applications across different industries .
FEATURES
Linear polarized with high polarization purity
Frequency from 0.2 GHz to 3 GHz
Low return loss / VSWR
Wide bandwidth
Uniform Gain
High Power Handling Capability

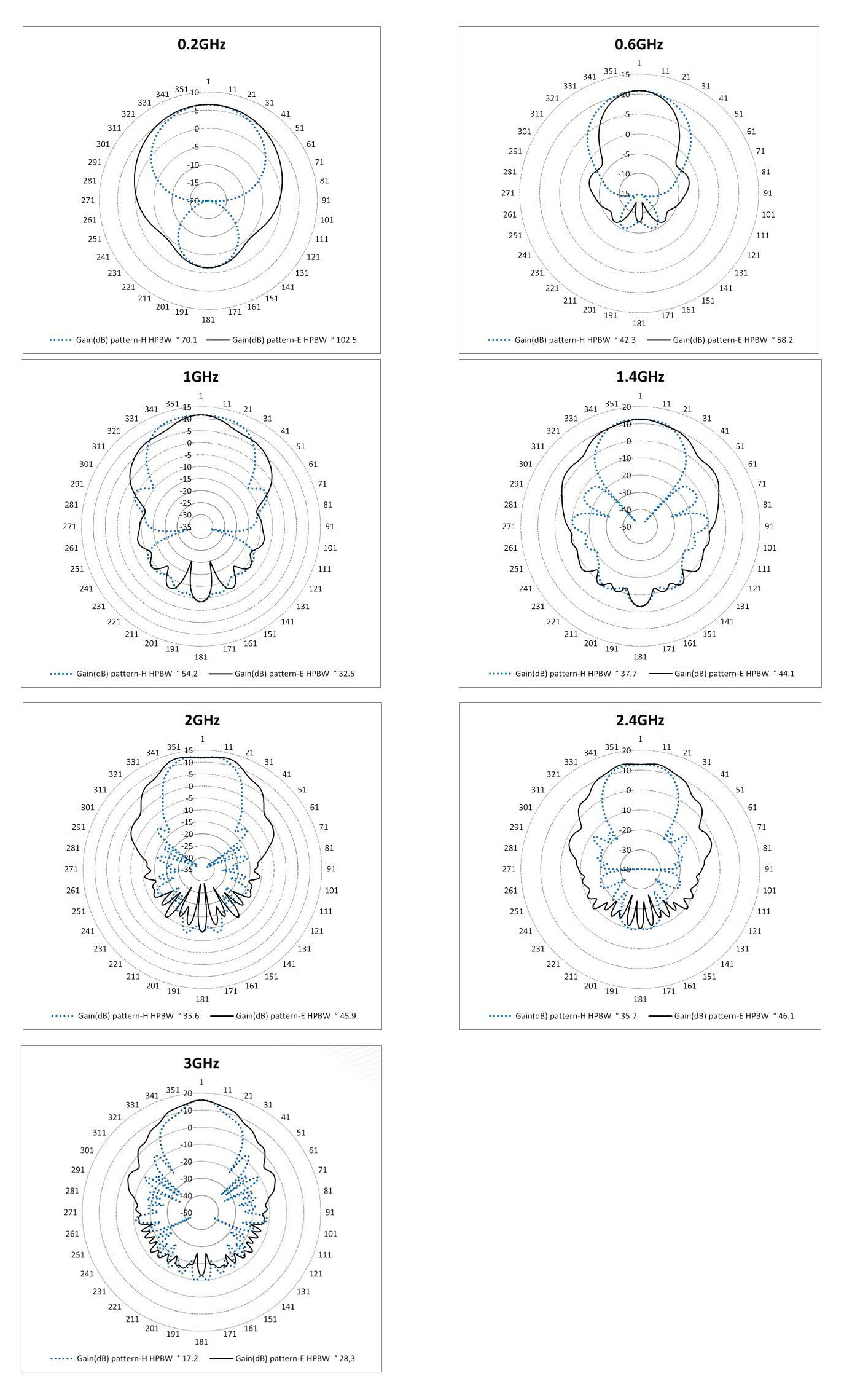

Radiation pattern contains only one main lobe over the entire frequency range
Each antenna is calibrated individually in line with ANSI C63.5-2006
ELECTRICAL SPECIFICATIONS
Min. Frequency (GHz): 0.2
Max. F「equency (GHz): 3

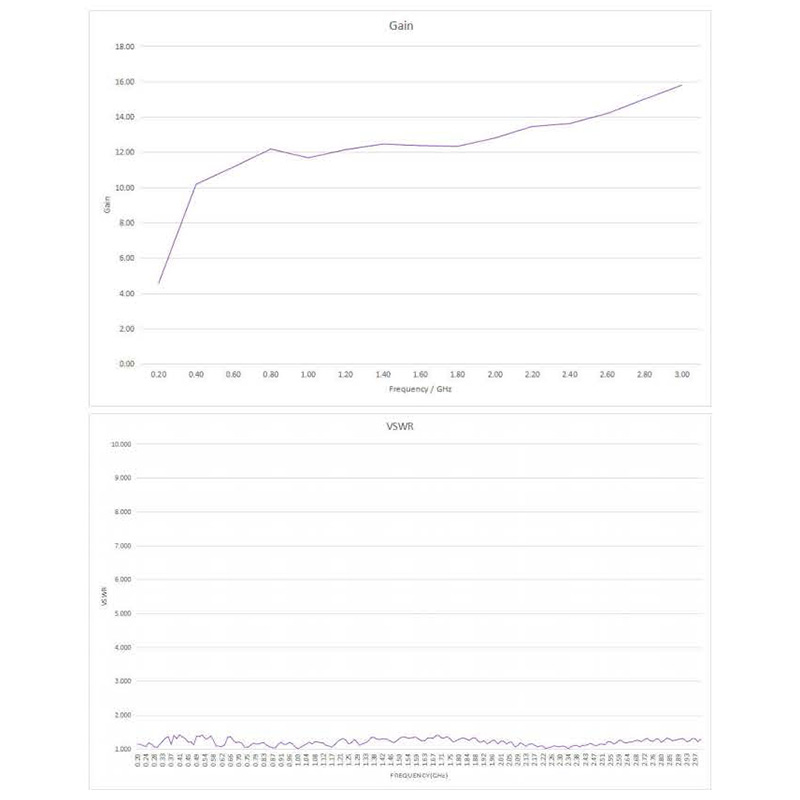

Gain (dBi): 6-15
Polarization: Single Linear
lmpedance(Ohm): 50
VSWR(Typ.): 1.5:1
Max.Power Handling: 2000/3000W
Connector: N-Type/DIN-Type
Weight: 22.249kg

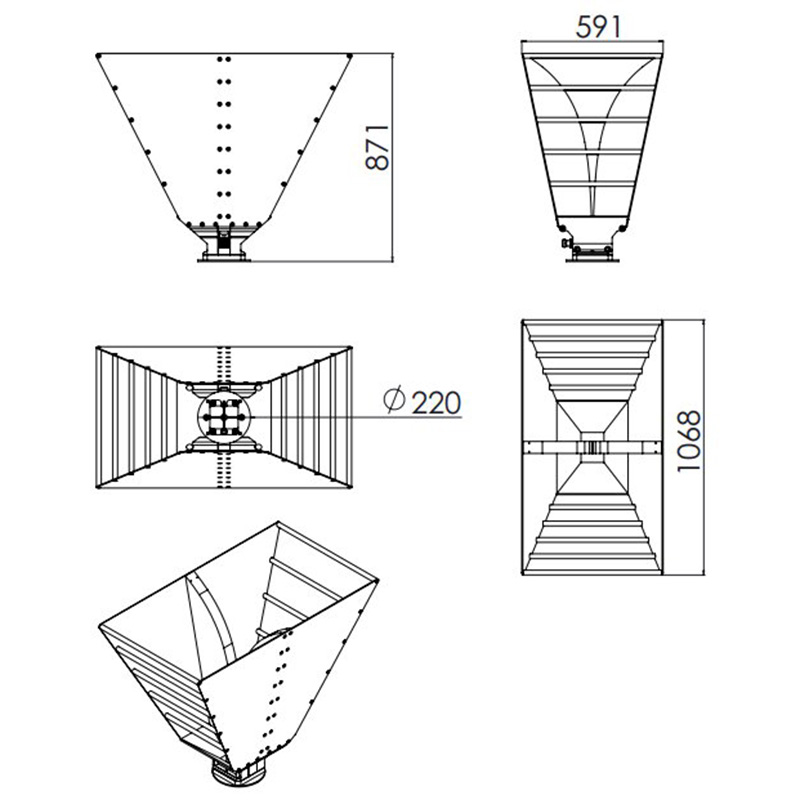

Dimensions: 106.8×59.1 x87.1cm
Package Weight: 50Kg, Special Box
Package Dimension: 117x 70 x 100cm
All specifications are subject to change without notice. All values are typical, unless specified.
