FEATURES
Frequency: 18-40GHz
Gain: 20dBi.
VSWR: 1.5:1 Typ.
Power handling: 50W Max with 2.92mm
Without the waveguide coaxial adapter it can handle a Max. power of 500W

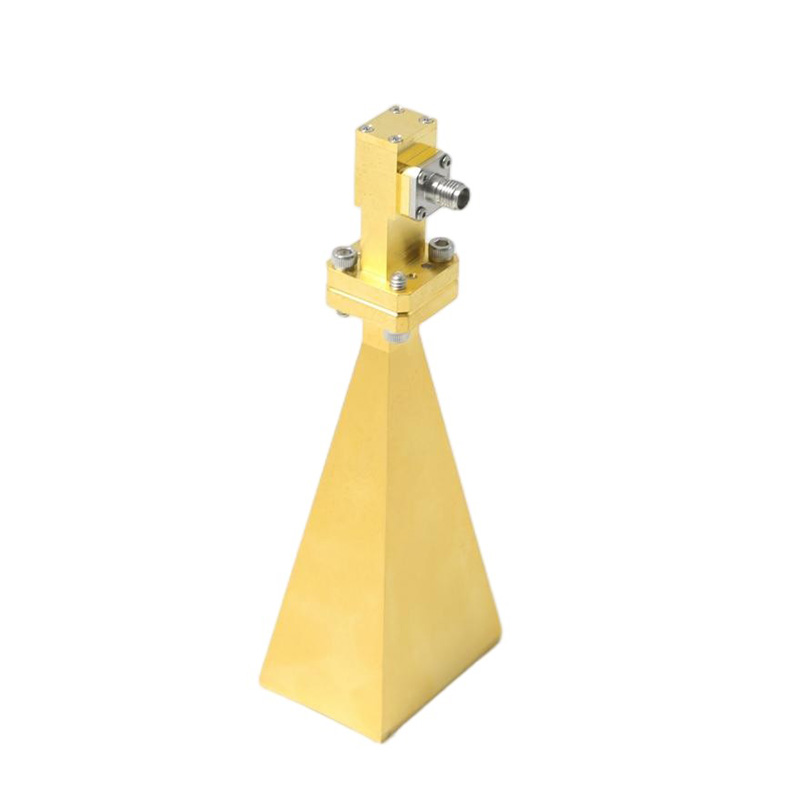

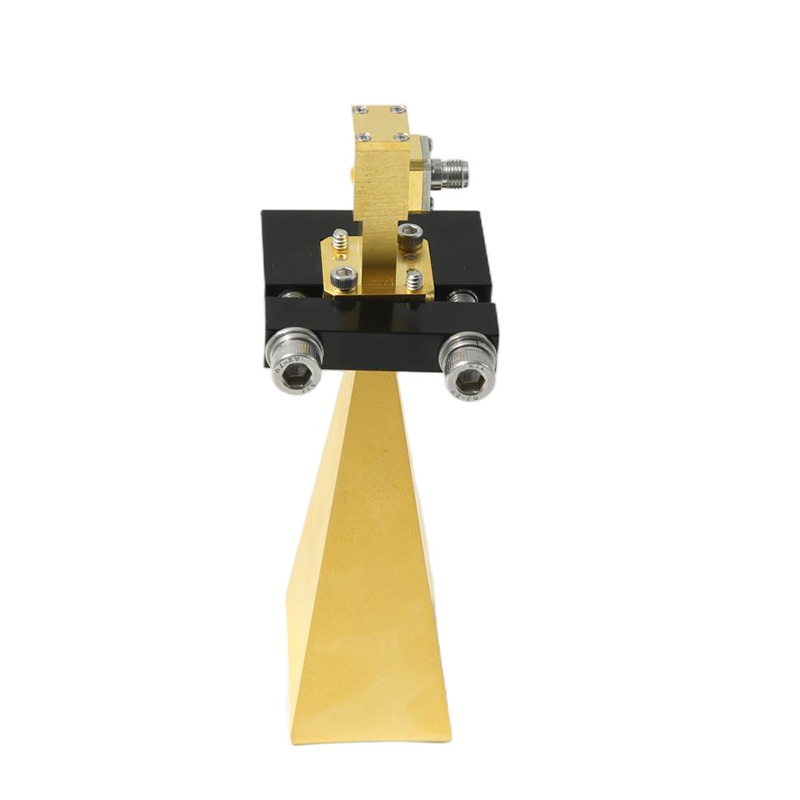

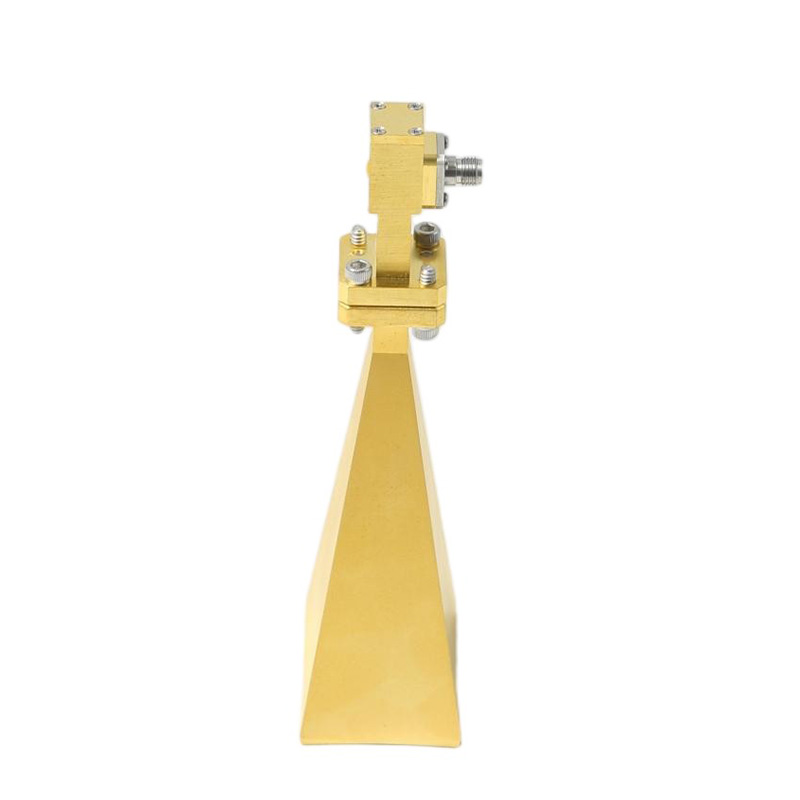

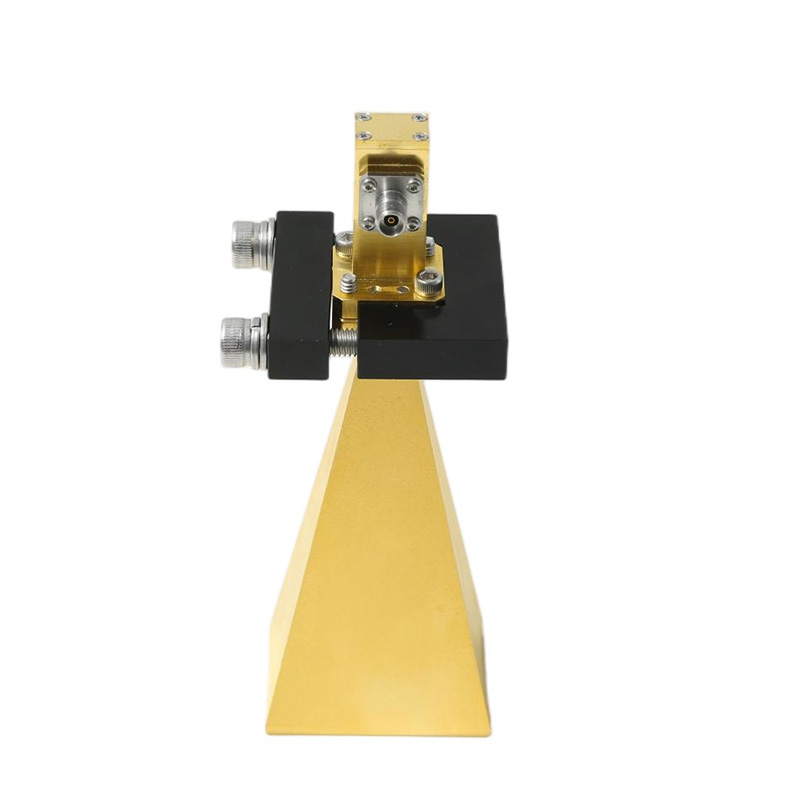

OBH-180400-20 Broadband dual ridged horn antenna supports linear polarized waveforms, and is appropriate for the EMC testing and telecommunication systems
$2,800
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION
OBH-180400-20 double ridge horn antennas operate broadband from 18GHz to 40GHz. The antenna supports linear polarized waveforms. This antenna is appropriate for the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.
OBH-180400-20 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements. OBH-180400’s radiation pattern contains only one single main lobe over the entire frequency range without any other side lobes. The antenna is low weight within 0.5kg and has a rugged construction.
FEATURES
Broad Frequency Range of 18 GHz to 40 GHz
Linearly Polarized High Gain, Low VSWR
Individually Calibrated
Linear polarized with high polarization purity
All specifications are subject to change without notice. All values are typical, unless specified.
Applications
FCC, MIL-STD, VDE, and TEMPEST Testing
Transmission and receiving applications

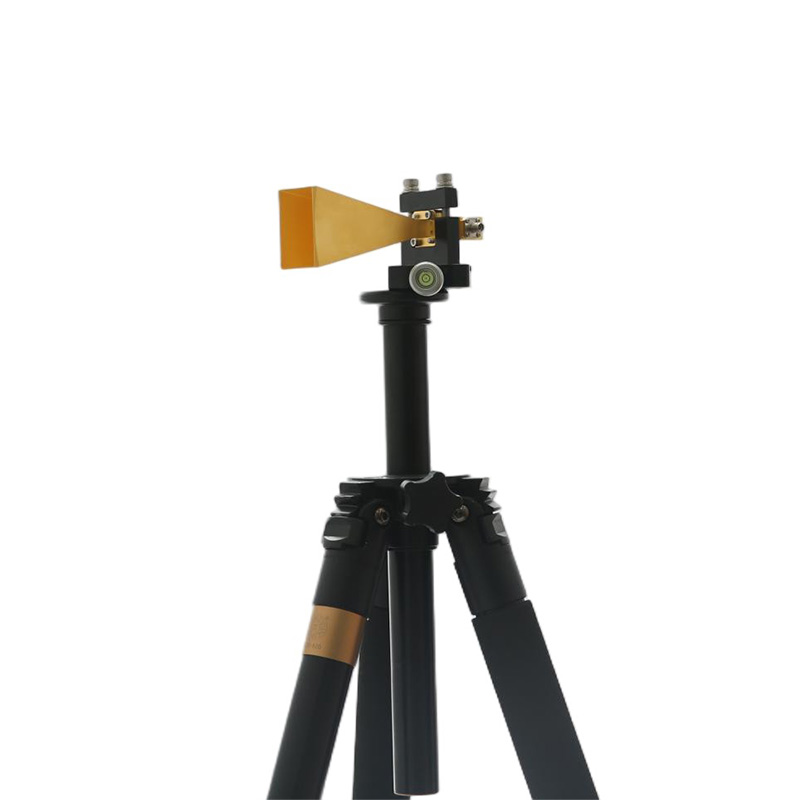

System Setup
