FEATURES
Frequency range: 0.8-18GHz
Gain: 5-14dBi
VSWR: 1.5:1 Typ.
Max. Power handling: 1500W
Equipped with N Type connector
OBH-08180 Broadband dual ridged horn antenna is ideal for various telecommunications, satellite, radar, and high-frequency RF testing applications
$3,800
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION

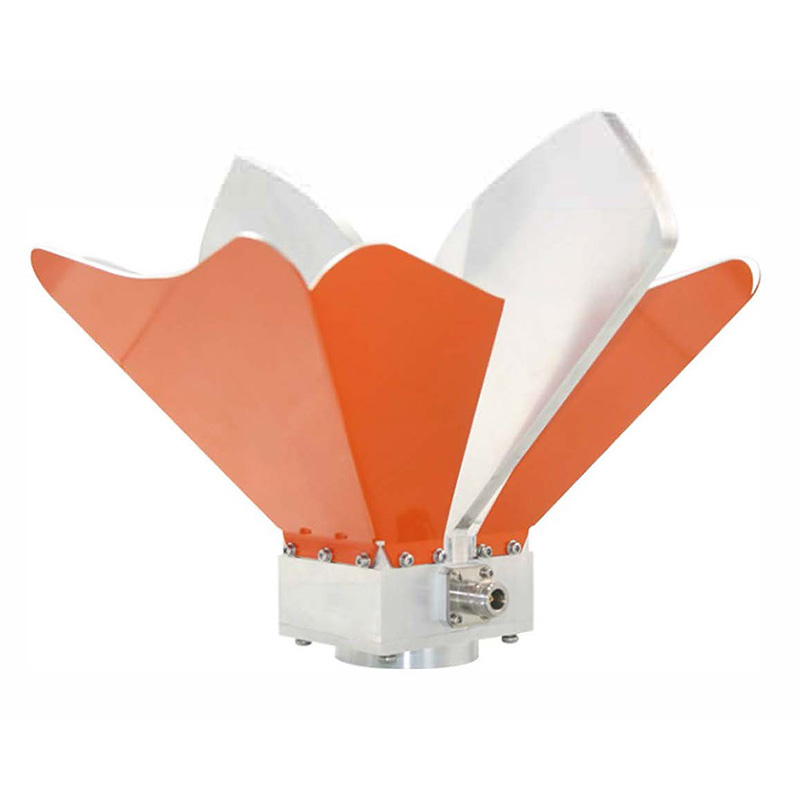

The OBH-08180 Dual-Ridged Horn Antenna is a premier product in advanced RF engineering, offering a broad operational spectrum from 800MHz to 18GHz, covering the C to Ku bands. Designed with user convenience at its core, the OBH-08180 weighs just 1760g, making it easy to transport and deploy in field operations. The OBH-08180 is engineered for precision. Comprehensive test data, including Gain, VSWR, antenna factors, and radiation patterns, is provided, ensuring accurate integration into user systems and optimal performance in real-world conditions. This extensive data allows users to fine-tune their systems, achieving precise testing outcomes confidently. For professionals seeking a high-performance broadband antenna that is both powerful and portable, the OBH-08180 stands as a top choice, delivering seamless integration, durability, and advanced RF capabilities for a broad range of industries.
This Broadband Dual-Ridged Horn Antenna is an advanced tool designed for various telecommunications, satellite, radar, and high-frequency RF testing applications. Its support for 5G NR Sub-6GHz and higher-frequency bands, including microwave bands, makes it highly versatile for testing modern 5G networks and Wi-Fi technologies that operate in higher frequencies. This antenna also excels in satellite communication, covering C-band, extended X-band, and Ku-band, providing the capability to test satellite uplinks and downlinks across a broader range of frequencies, enabling advanced satellite communication testing. Its ability to support X-band and Ku-band frequencies makes it suitable for more advanced radar systems, commonly used in airborne, military, and space applications. In addition, it also enhances effectiveness in EMC testing, allowing for higher-frequency electromagnetic compatibility testing to ensure equipment compliance with stringent industry standards. Lastly, this antenna is ideal for high-frequency RF and microwave testing, providing a comprehensive solution for engineers and researchers working across a broader frequency spectrum up to 18GHz.
FEATURES
Linear polarized with high polarization purity
Frequency from 0.8 GHz to 18 GHz
Low return loss / VSWR
Wide bandwidth
Uniform Gain
High Power Handling Capability
Radiation pattern contains only one main lobe over the entire frequency range
Each antenna is calibrated individually in line with ANSI C63.5-2006
All specifications are subject to change without notice. All values are typical, unless specified.
