Features
Frequency range: 30 MHz to 1.5 GHz
Gain: 8.5 dBi (typ.)
VSWR: 2:1
Impedance: 50Ω
Wide frequency range

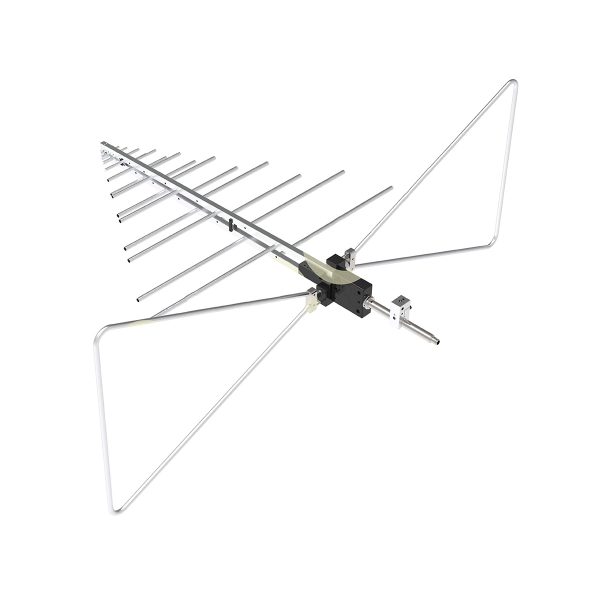

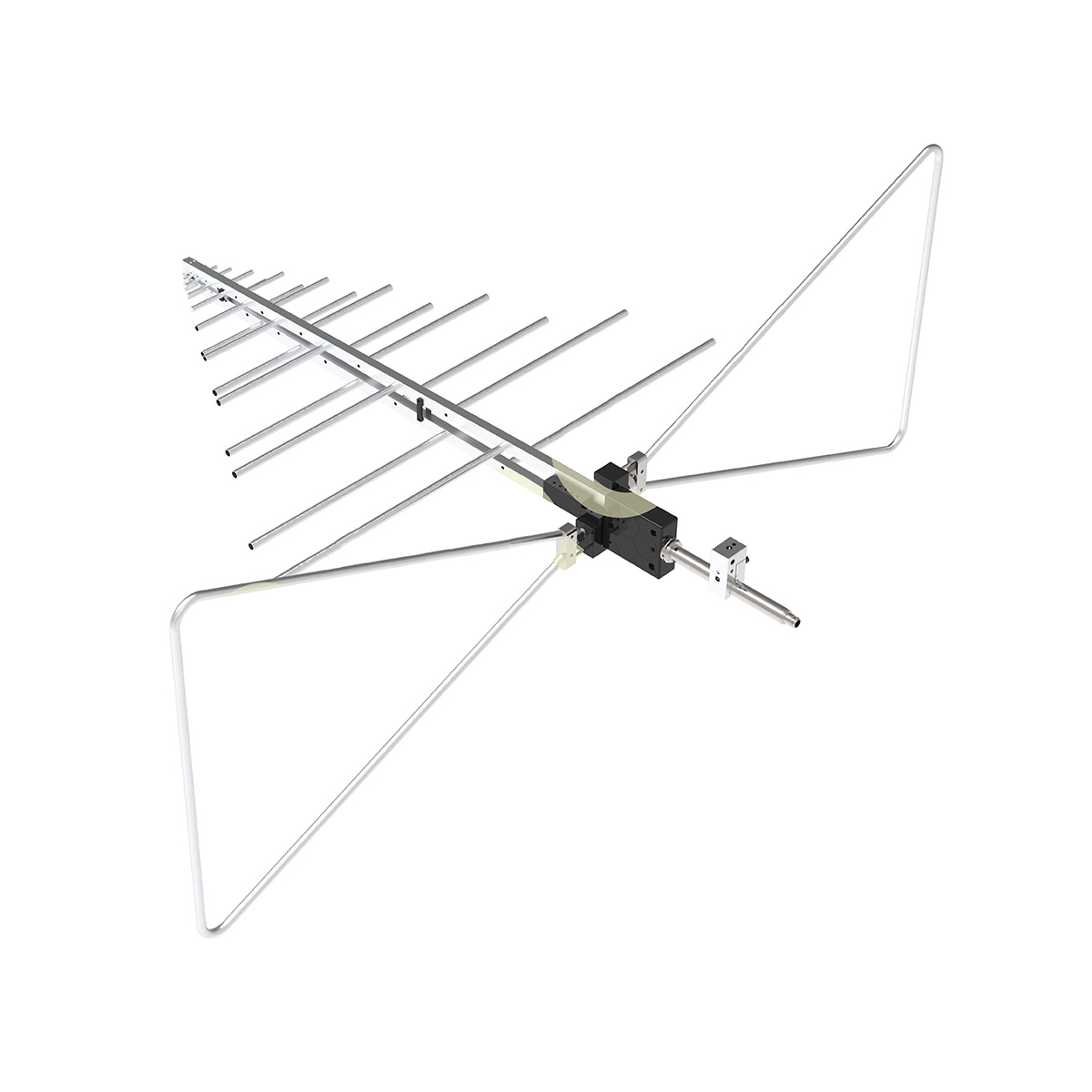

capable of both receiving and transmitting signals Hybrid Log Periodic – Biconical Antenna
SKU: OLP-00315
Categories: Biconic Log Periodic Antennas, Log Periodic Antenna
Description
The RFECHO Bilogical Antenna is one of our latest antennas, providing an inexpensive and excellent solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, The RFECHO antenna will display efficient performance characteristics through the frequency range of 30 MHz to 1500 MHz.
FEATURES
High antenna gain, i.e. low amplifier power is required
No change of antennas needed over wide frequency range
Uniform object irradiation due to optimized radiation patterns
Antenna gain approximately constant over the whole frequency range
APPLICATIONS
Satellite communication.
Mc measurements.
Directional radio communication.
SPECIFICATIONS
Frequency Range: 30 MHz -1.5 GHz
Polarization: linear
Cross polarizatio: >20dB

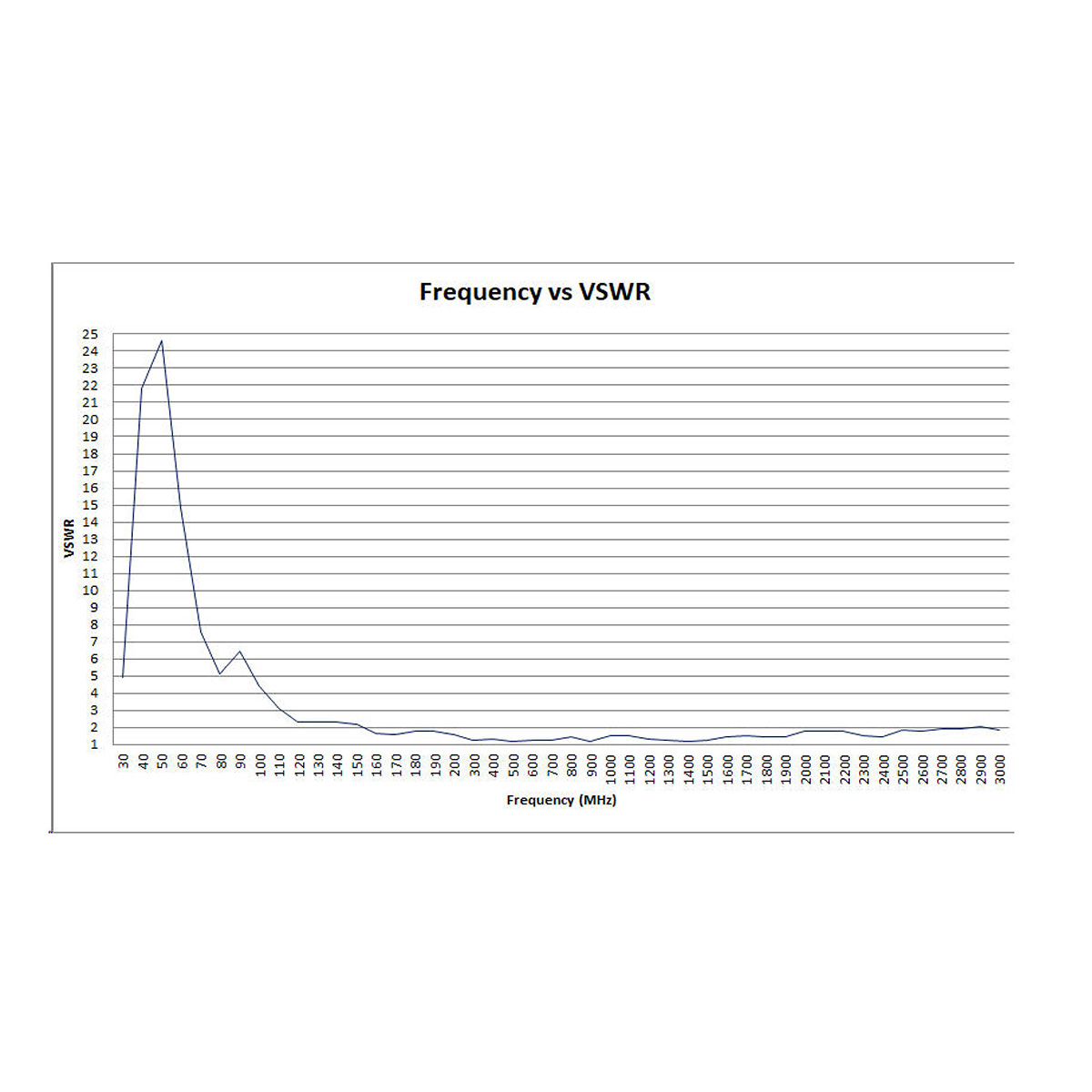

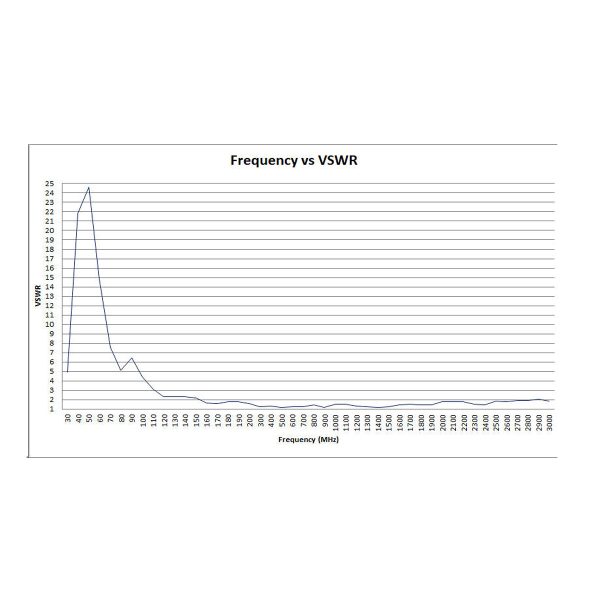

VSWR: < 2(typ.)
Material: Aluminium
RFconnector : N
Nominal impedance: 50 Ω

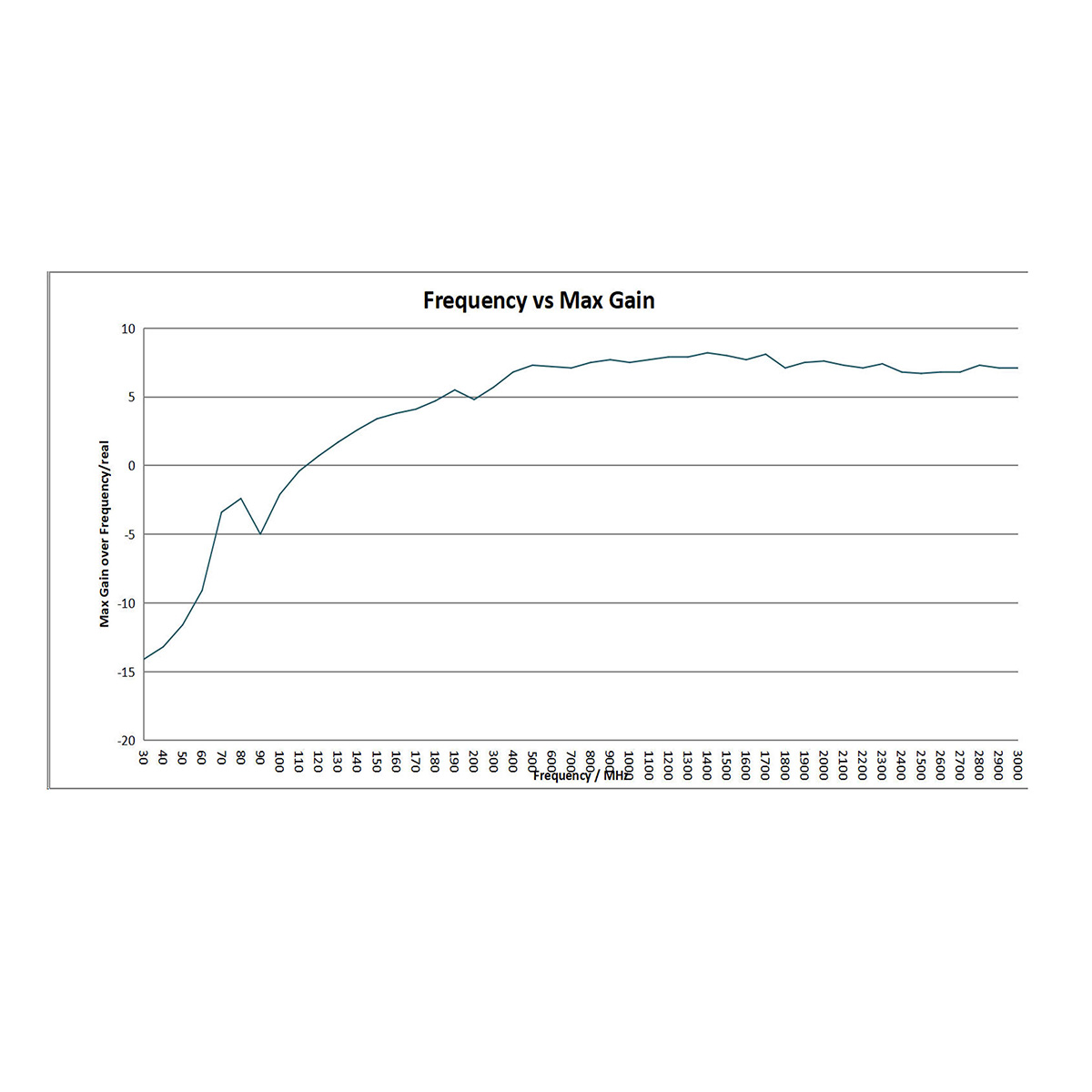

Gain: 8.5 dBi(typ.)
Max power : 200 W
Pattern Type: : directional
