Features
Frequency Range: 0.025 GHz to 7 GHz
Gain: -27 ~ 7 dBi
Impedance: 50Ω
Maximum Radiated Field: 100 V/m
Connector Type: N-Type, female
Power Handling: 1000 Watts

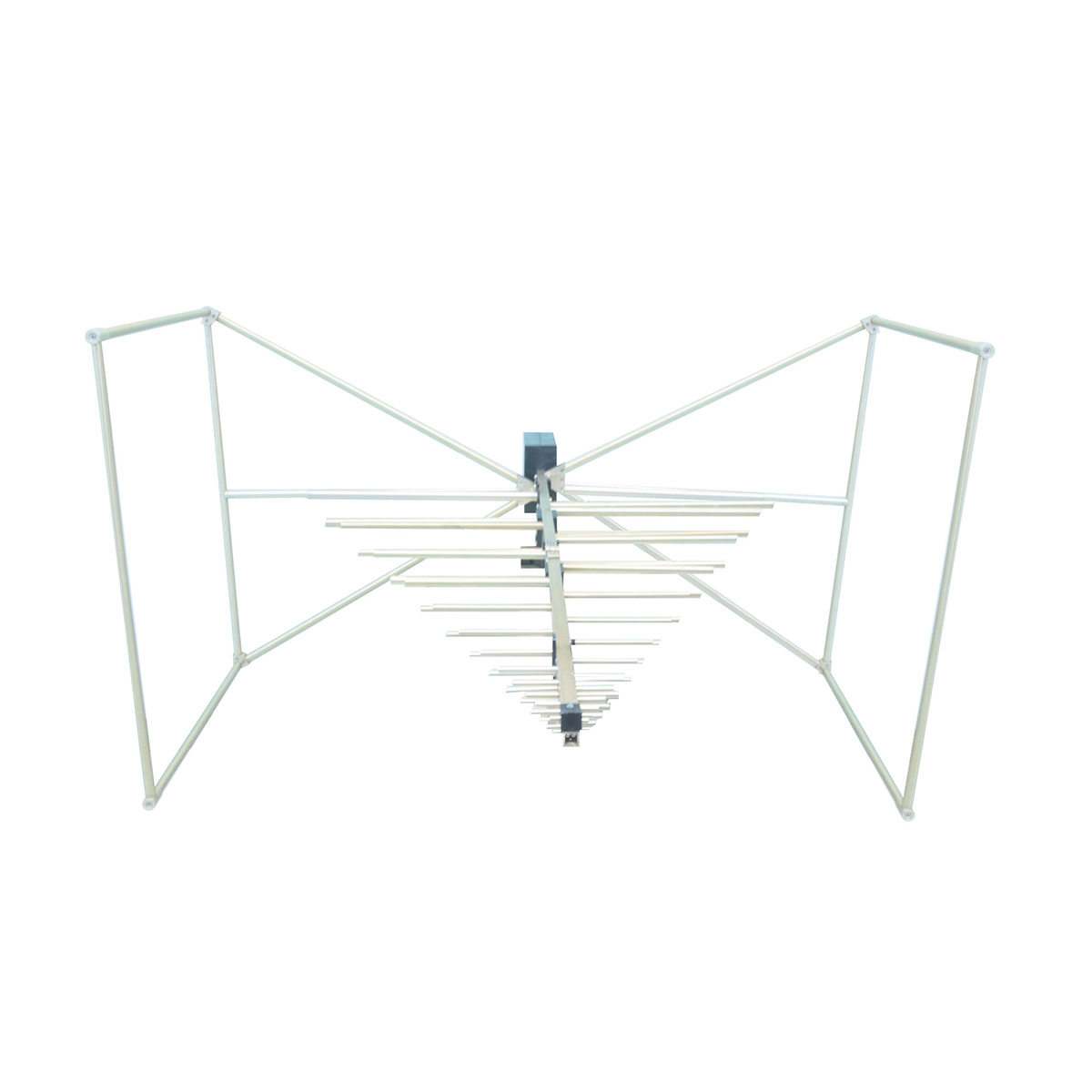

The Biological Antenna (OLP-00270) is one of the latest antennas, providing an inexpensive solution for wideband applications, such as GSM, 5G, and Wi-Fi.
SKU: OLP-00270
Categories: Biconic Log Periodic Antennas, Log Periodic Antenna
Description
The Bilogical Antenna OLP-00270 is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 7000 MHz.
OLP antenna offering a large number of dipole elements with frequency range from 25 MHz to 7 GHz including the most common RF sources like GSM,5G, Wifietc..
Each antenna goes through rigorous testing in our laboratories before dispatch，All antennas are developed, individually produced and calibrated.
Features

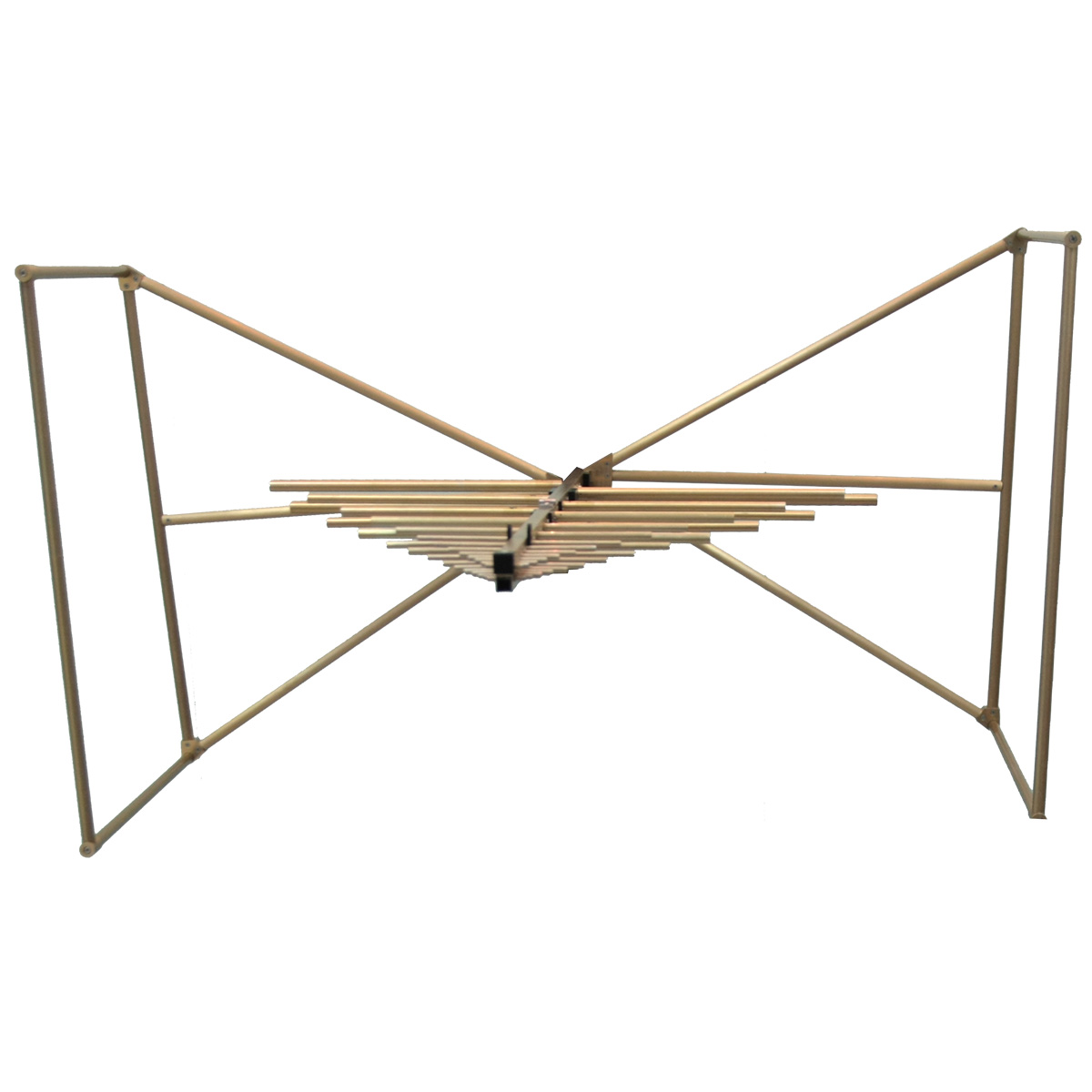

Hybrid Log Periodic – Biconical Antenna
Wide Frequency Range of 25 MHz – 7000 MHz
Receive and Transmit

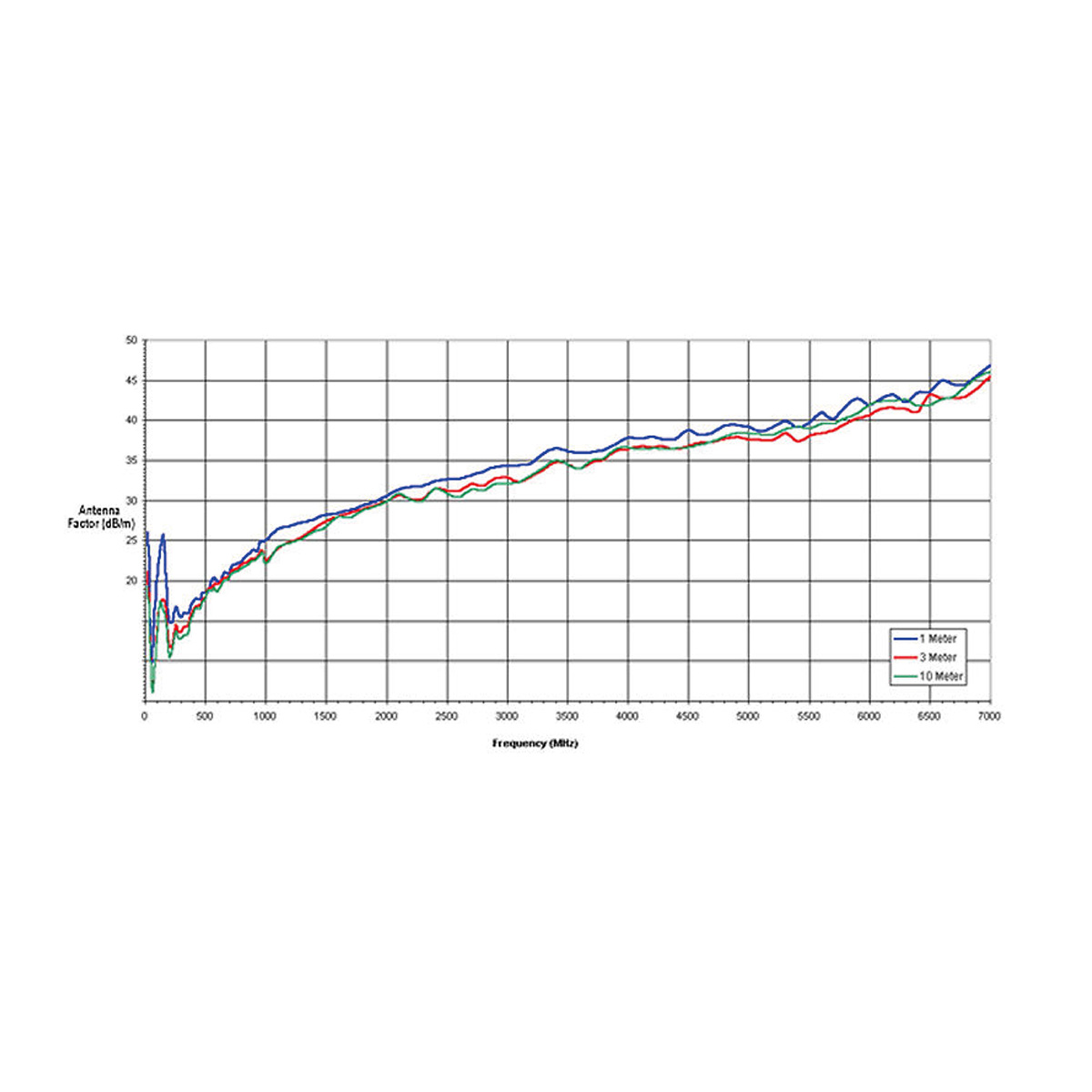

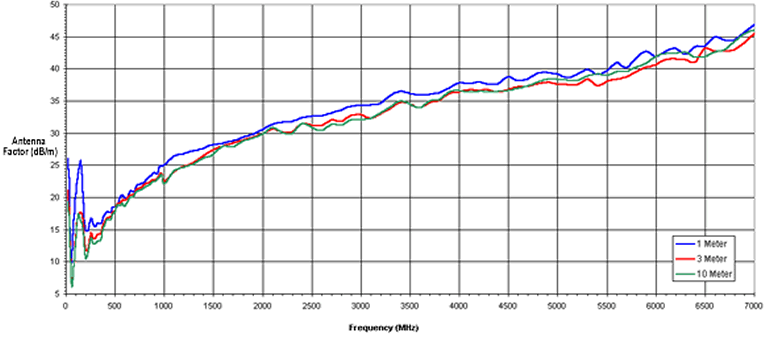

Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
Rugged Construction
Can be used in the lab and for open-field application
Suitable for field-strength and EMC measurements due to high precision
Compact and sturdy design
Electrical Specifications
Frequency Range(GHz): 0.025-7
Gain: -27 to 7 dBi
Maximum Continuous Power: 1000 Watts
Impedance: 50 Ω
Max Radiated Field: 100 V/m
Connector: N-Type, female
Mounting Base: ¼- 20 Thread, female

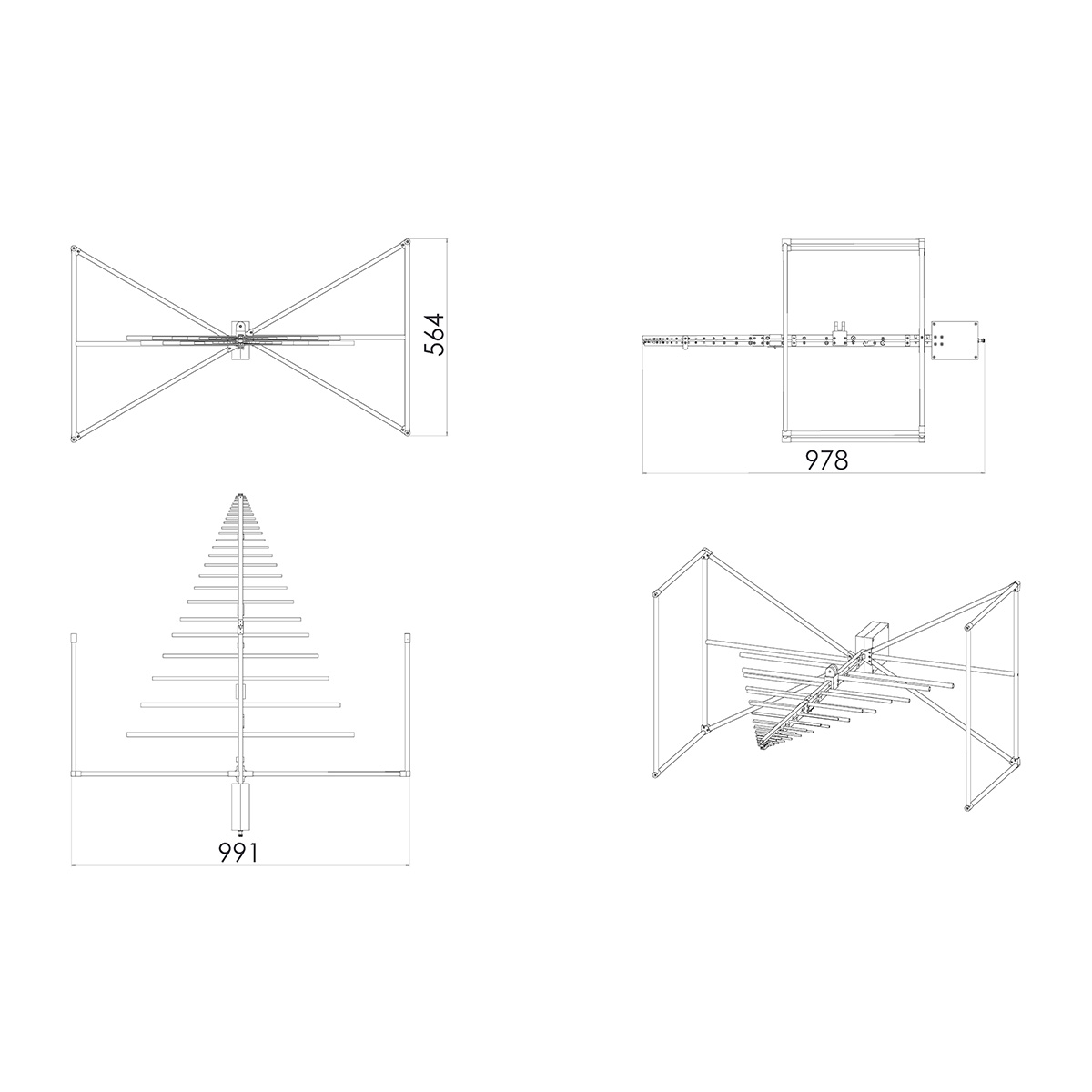

Physical Dimensions
Height: 56.4 cm
width: 97.8 cm
Length: 99.1 cm
Weight: 2.04 kg
