Biconical Antenna OBC-150M1000M-5W-1

Shipping & Delivery

Products are shipped internationally from Shenzhen / Dongguan, China.
Standard export terms are FOB Shenzhen / Dongguan

(Incoterms®).
Under FOB terms, the seller completes export customs clearance and delivers the goods to the port of shipment.
The buyer is responsible for international freight, insurance, import customs clearance, and final delivery.
Alternative shipping arrangements can be discussed based on customer requirements.

Product Overview

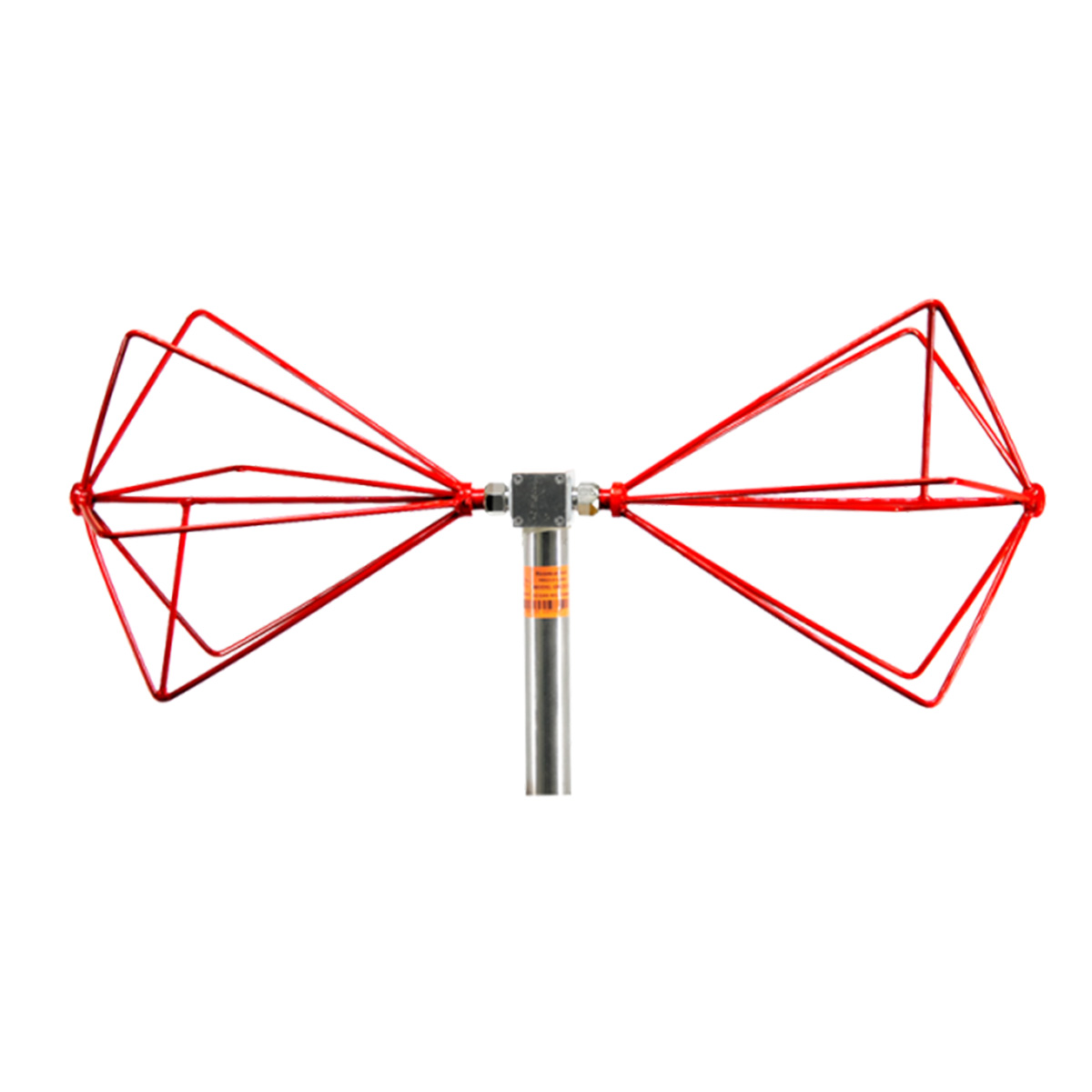

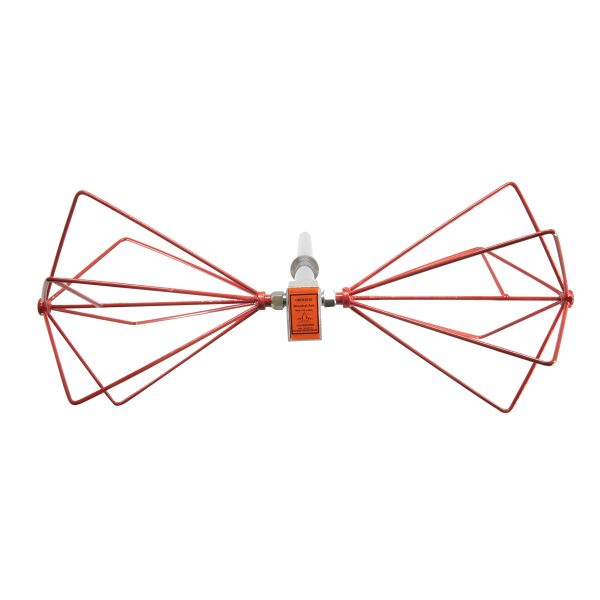

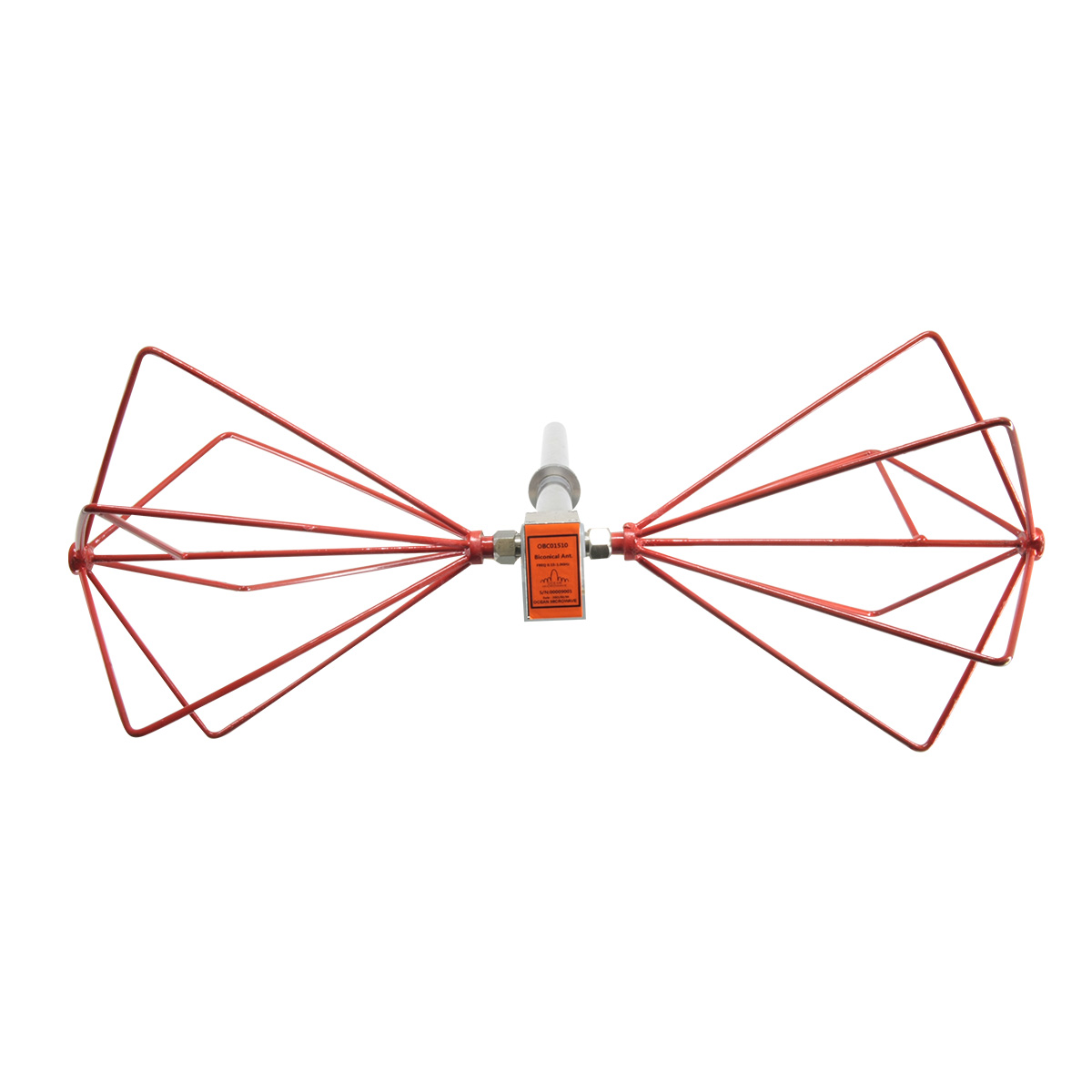

The OBC-150M1000M-5W-1 is a vertically polarized omnidirectional antenna with a frequency range of 150 MHz to 1000 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-150M1000M-5W-1 is ideal for a variety of testing and communication purposes. It is widely used for EMC testing in lower frequency bands, ensuring compliance with major regulatory standards such as FCC and CE. This model is particularly suited for testing consumer electronics, automotive, and industrial devices. Additionally, the antenna covers key frequencies for FM radio broadcasting, including a significant portion of the FM spectrum, making it effective for testing and monitoring broadcast equipment. It is also well-suited for public safety communications, covering crucial public safety bands, and is often used for testing emergency devices like police radios and fire department communication systems. Moreover, the antenna partially covers both VHF and UHF TV broadcasting frequencies, making it applicable for testing TV broadcasting equipment in these frequency bands.

FEATURES

Low Return Loss
Linear gain with frequency
EMC and EMI testing
Radio Link Testing

APPLICATIONS

Broadband RX-Antenna for Emission Testing
TX-Antenna for Immunity testing
Specially designed at low frequencies

ELECTRICAL SPECIFICATIONS

Frequency Range: (150-1000)MHz
Nominal lmpedance: 50 Ω
Polarization: Linear
Connector: N type female
Power Handling: 5 W
VSWR: 2.0:1
Impedance: 50 Ohms
Pattern Type: Omnidirectional

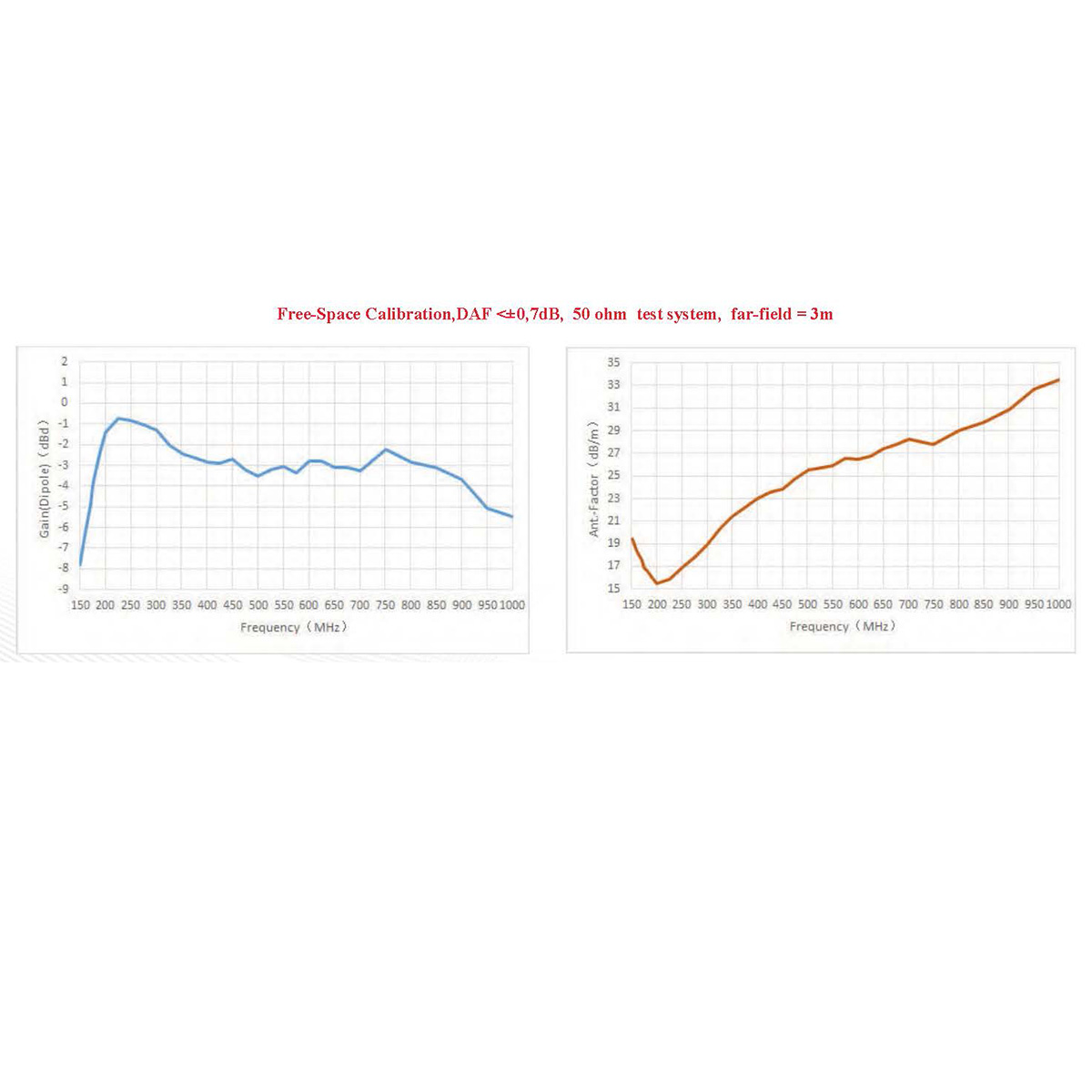

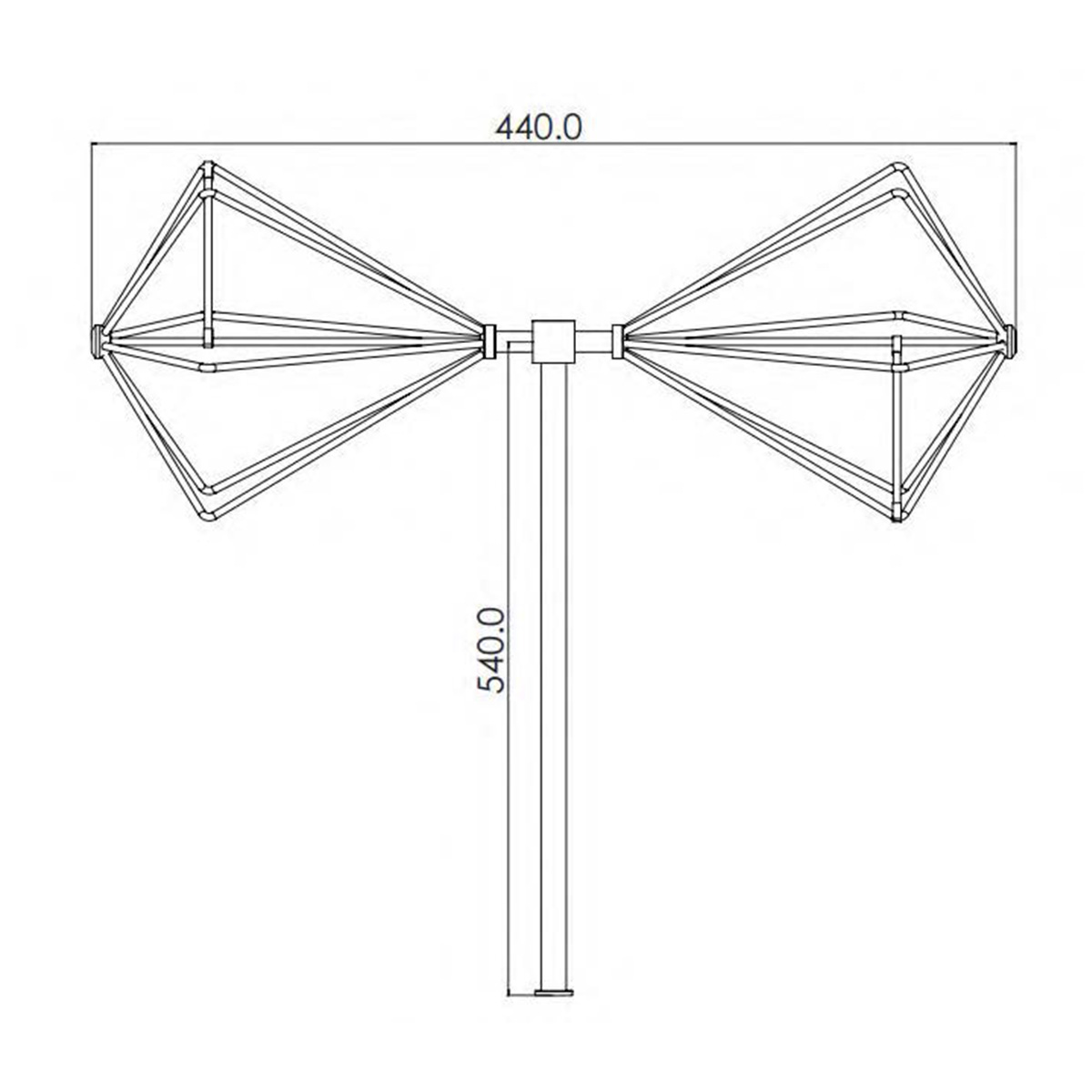

Length (mm): 440
Balun TypeTransform.Ratio: 1:1

All specifications are subject to change without notice. All values are typical, unless specified.
