FEATURES
Frequency: 1000MHz-6000MHz
Gain: 1 to 41dBi
VSWR: 2.0:1
Power Handling:20W
Balun Type Transform Ratio: 1:1
Low Return Loss
Equipped with an N-connector
OBC-1060-20W-1 Biconical Antenna can be used in wireless communication,radar systems and EMI testing.
$2,100
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION

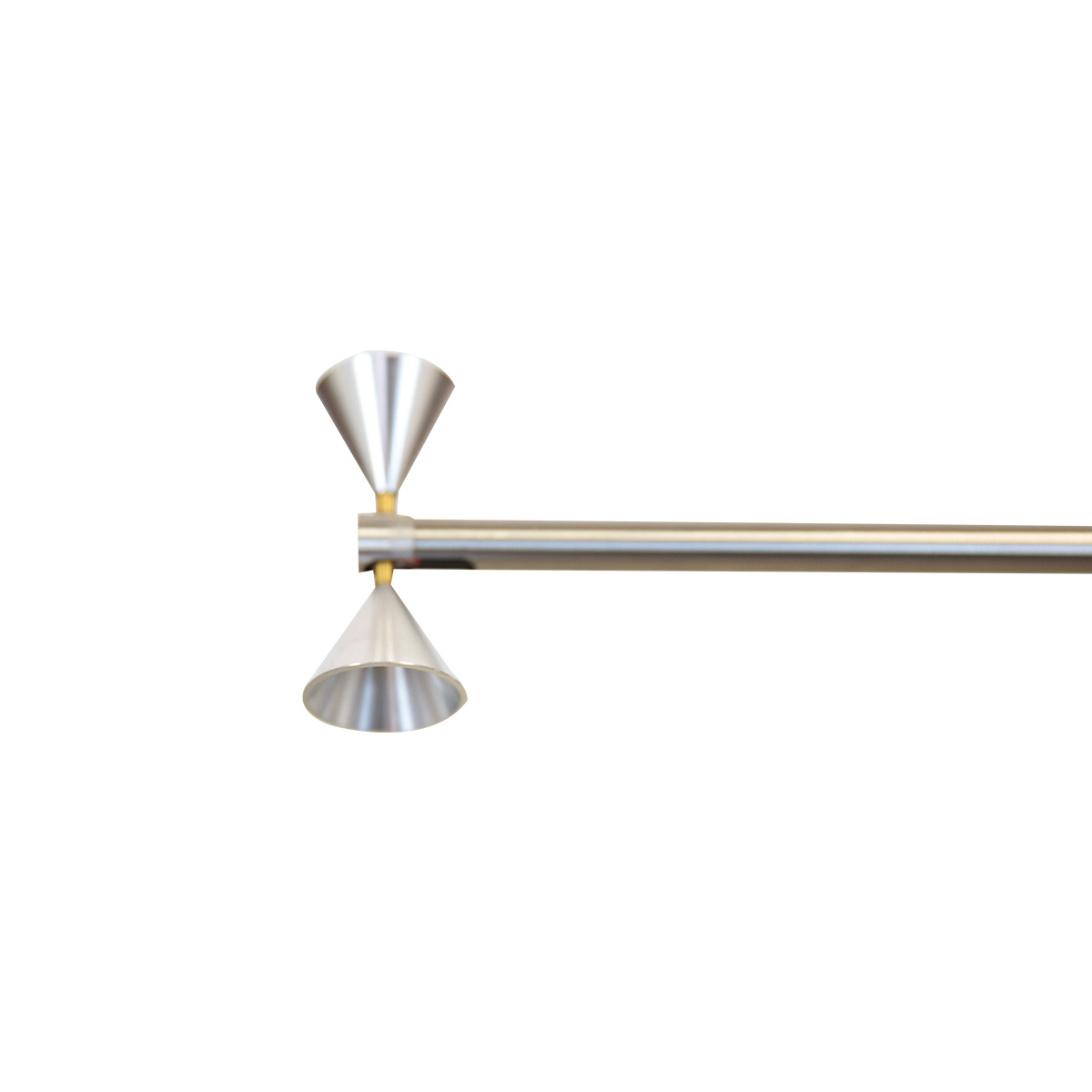

The OBC-1060-20W-1 is a vertically polarized omnidirectional antenna with a frequency range of 1000 MHz to 6000 MHz, offering superior pattern stability. Built with durable aluminum alloy and powder coated for enhanced corrosion resistance, the OBC-1060-20W-1 Biconical EMC antenna is a robust solution for radiation and immunity testing. Unlike traditional half-wave dipole antennas, this model eliminates the need for time-consuming element tuning, significantly reducing measurement time?€?a key advantage in swept broadband testing.
The OBC-1060-20W-1 is a versatile solution for various applications. Firstly, it is extensively used in wireless communication, including mobile networks such as 4G and 5G, as well as satellite communication and Wi-Fi systems, providing reliable connectivity and high data transfer rates. Additionally, this antenna plays a crucial role in radar systems, being employed in advanced applications like automotive radar and surveillance systems. Furthermore, the antenna is essential for EMI testing, ensuring compliance with stringent electromagnetic compatibility (EMC) standards in environments. Its broad bandwidth and stability make it the ideal choice for professionals seeking high-quality performance in their communication and testing needs.
FEATURES
Low Return Loss

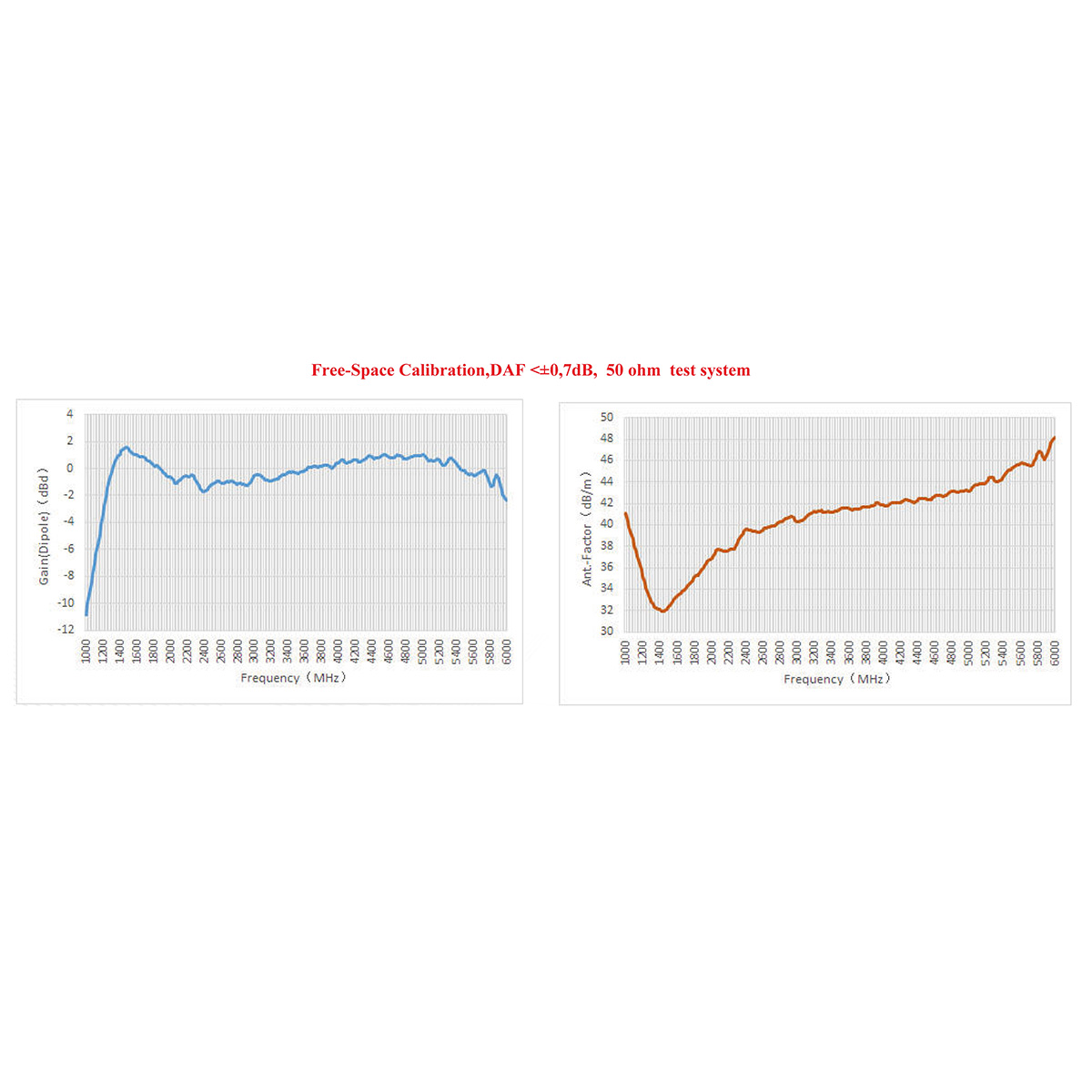

Linear gain with frequency
EMC and EMI testing
Radio Link Testing
APPLICATIONS
Broadband RX-Antenna for Emission Testing
TX-Antenna for Immunity testing
Specially designed at low frequencies
ELECTRICAL SPECIFICATIONS
Frequency Range: (1000-6000)MHz
Nominal lmpedance: 50 Ω
Polarization: Linear
Connector: N type female
Power Handling: 20 W
VSWR: 2.0:1
Impedance: 50 Ohms
Pattern Type: Omnidirectional

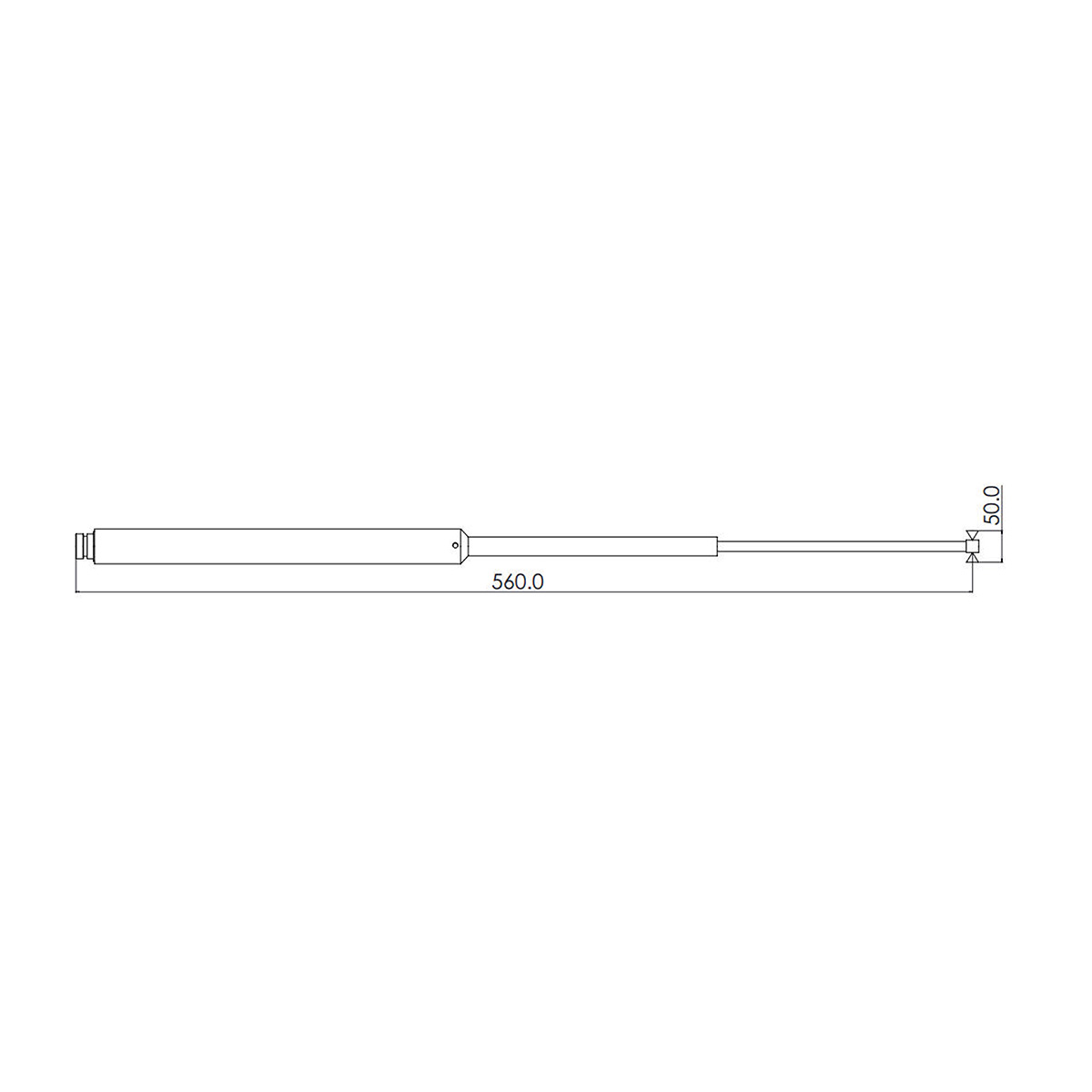

Length (mm): 50
Balun TypeTransform.Ratio: 1:1
All specifications are subject to change without notice. All values are typical, unless specified.
