FEATURES
Frequency: 30MHz-300MHz
VSWR: 2.0:1
Power Handling:1000W
Connection Type:N Female
Balun Type Transform Ratio: 4：1
Low Return Loss

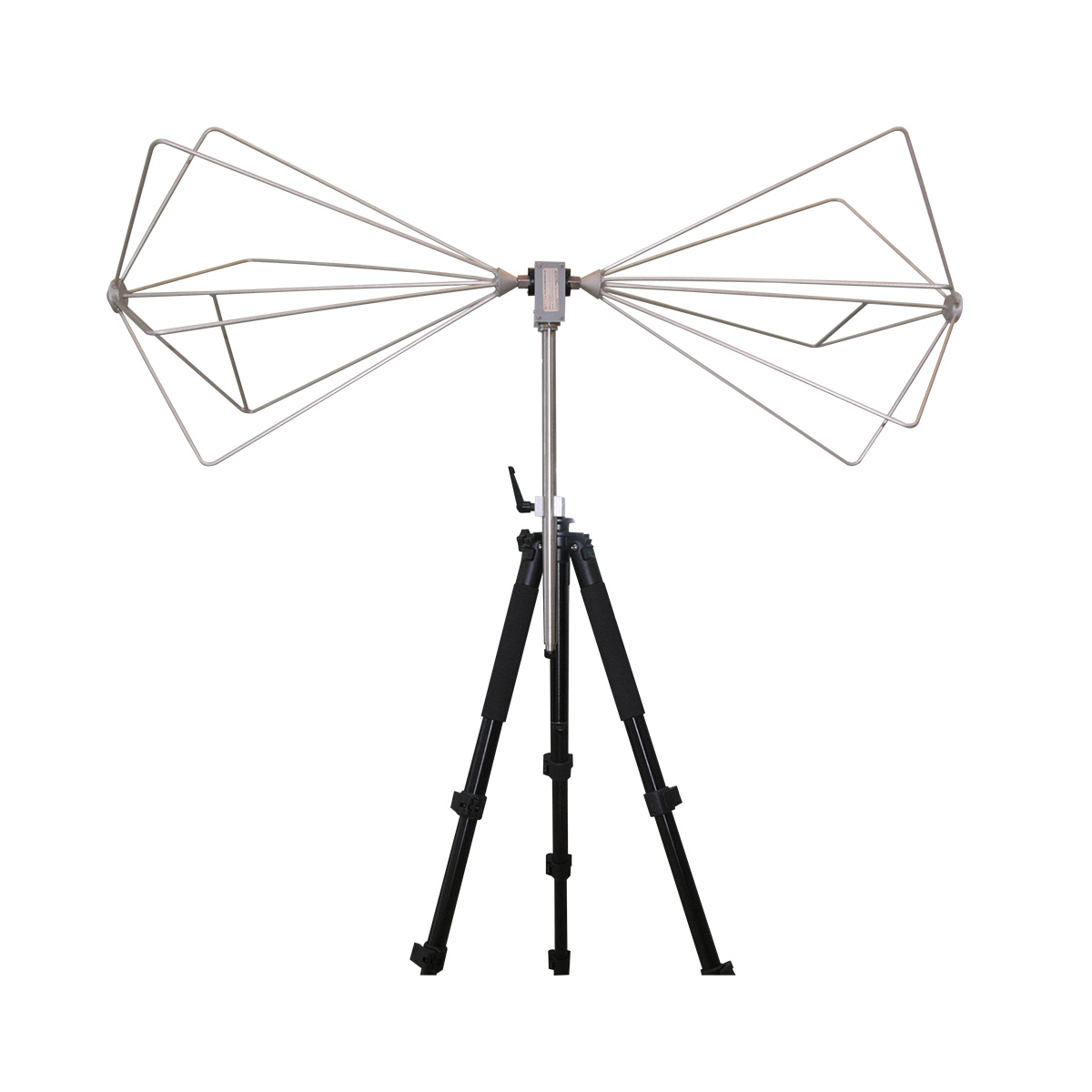

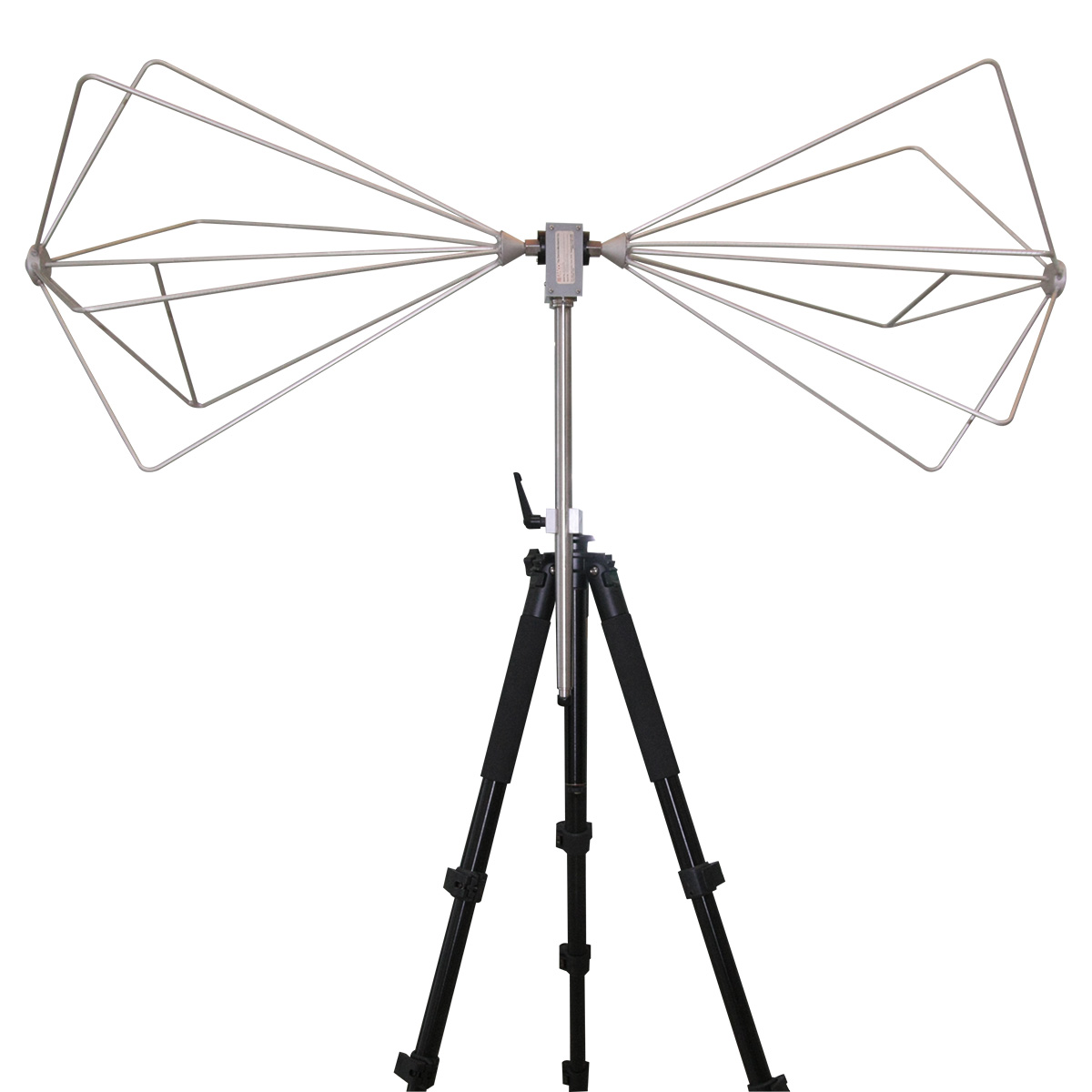

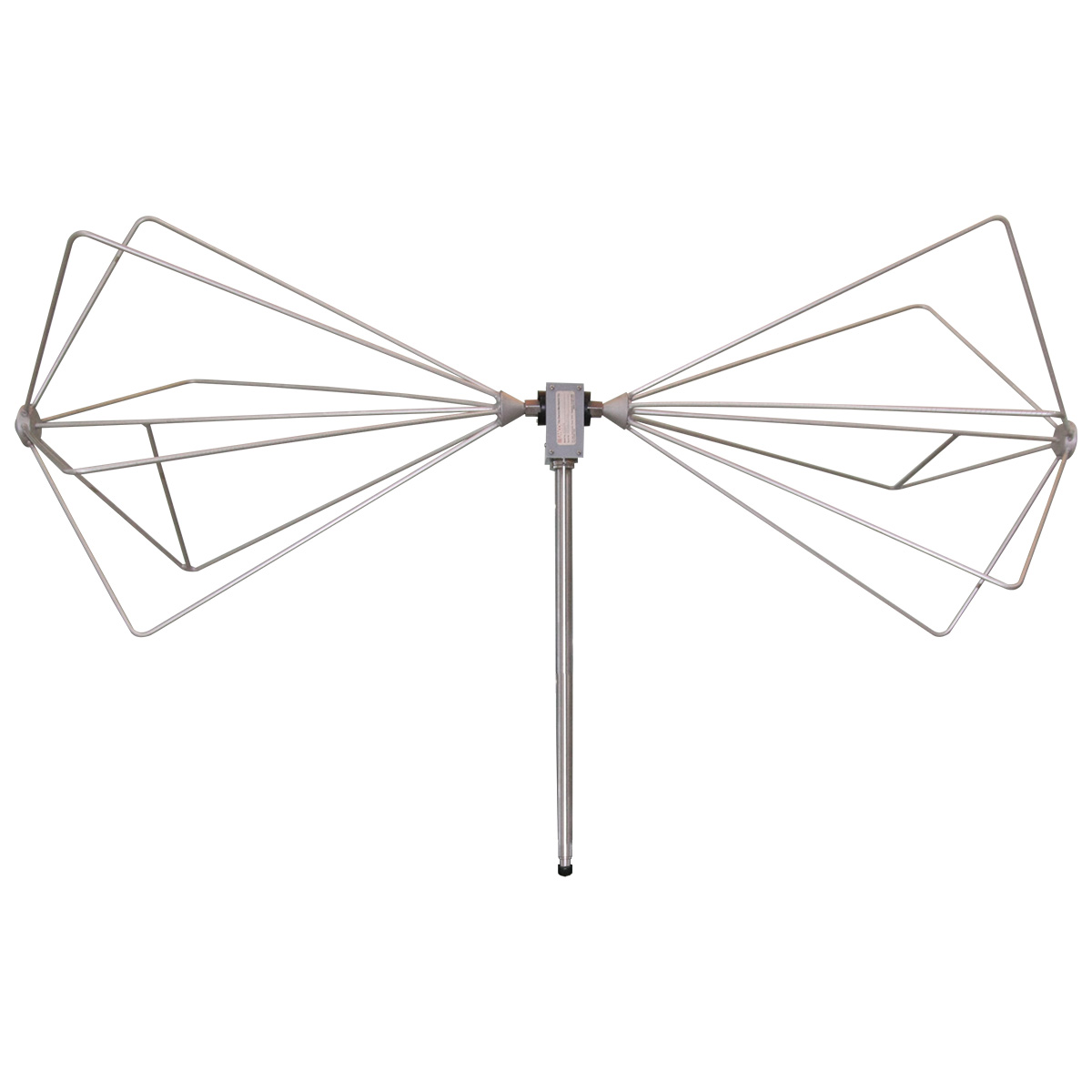

OBC-033-1KW-4 Biconical Antenna is suitable for a wide array of modern telecommunications systems and EMI testing
$5,100
Shipping & Delivery
Incoterm: FOB (Free On Board)
FOB Port: Shenzhen/Dongguan, China
Handling: We deliver the goods to the loading port and complete export customs clearance.
Buyer’s Responsibility: International freight, insurance, destination customs, and local delivery.
DESCRIPTION
The OBC-033-1KW-4 is a vertically polarized omnidirectional antenna with a frequency range of 30 MHz to 300 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.
With the above benefits, the OBC-033-1KW-4 is constructed for various demanding applications. Firstly, it is ideal for extended EMC testing, covering both low-frequency and mid-range VHF devices. This makes them suitable for a wide array of modern telecommunications systems and electronic equipment. In telecommunications and broadcasting, this model is used for testing not only FM radio and VHF TV channels but also two-way radios, walkie-talkies, and emergency broadcast systems that operate above 200 MHz, ensuring compliance with broader VHF communication standards. For wideband military communication, the antenna supports both short-range and longer-range VHF communication systems, such as aviation radios and ground communication systems, offering more versatile testing for military applications. Additionally, it is also vital for expanded industrial applications, testing industrial systems and wireless communication networks operating at higher VHF frequencies, up to 300 MHz, ensuring compliance and functionality for industrial electronics. Lastly, The OBC-033-1KW-4 supports a wider band of swept frequency measurements, essential for site surveys, field monitoring, and other testing applications.
FEATURES
Low Return Loss
Linear gain with frequency
EMC and EMI testing
Radio Link Testing
APPLICATIONS
Broadband RX-Antenna for Emission Testing
TX-Antenna for Immunity testing
Specially designed at low frequencies
ELECTRICAL SPECIFICATIONS
Frequency Range: (30-300)MHz
Nominal lmpedance: 50 Ω
Polarization: Linear
Connector: N type female
Power Handling: 1 KW
VSWR: 2.0:1
Impedance: 50 Ohms
Pattern Type: Omnidirectional

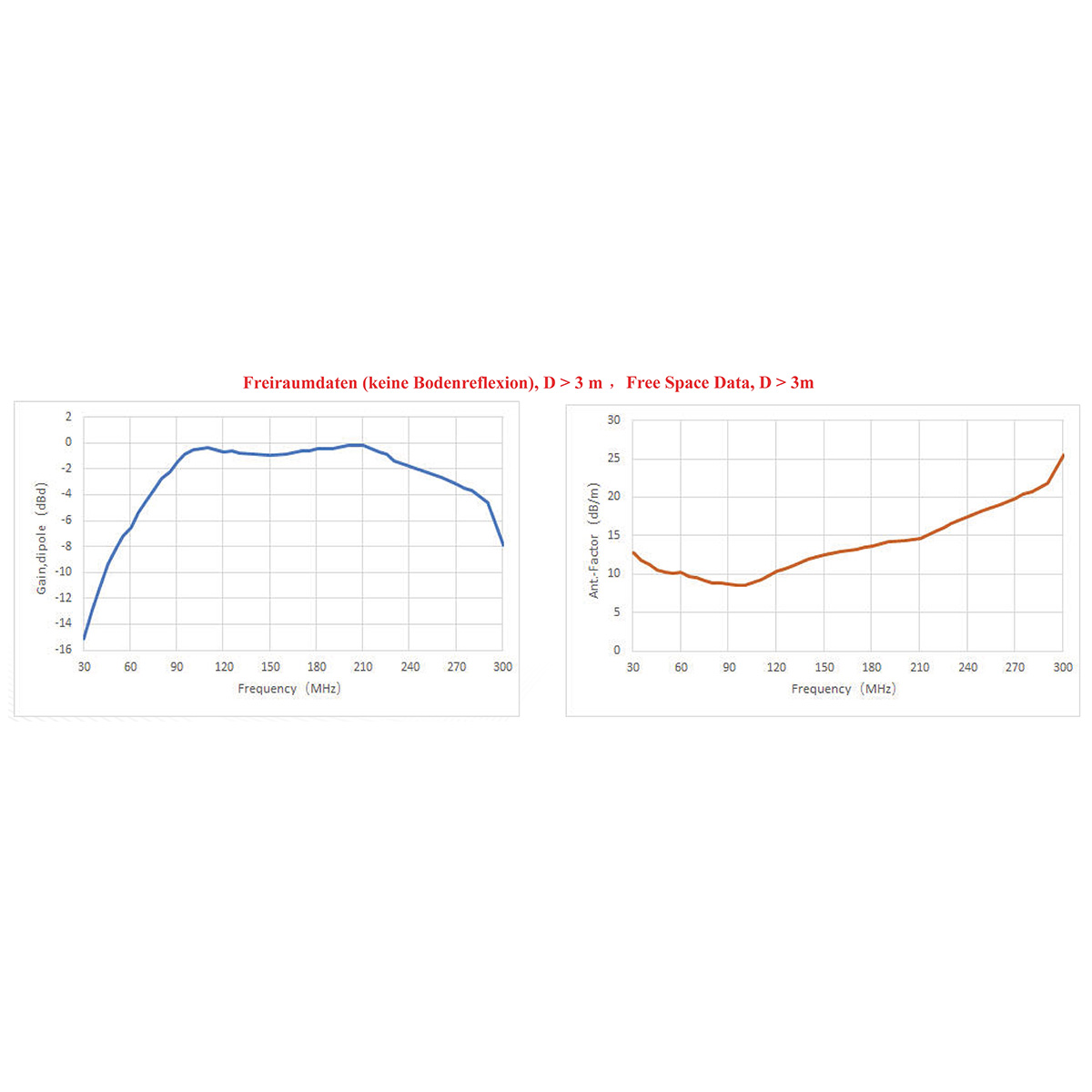

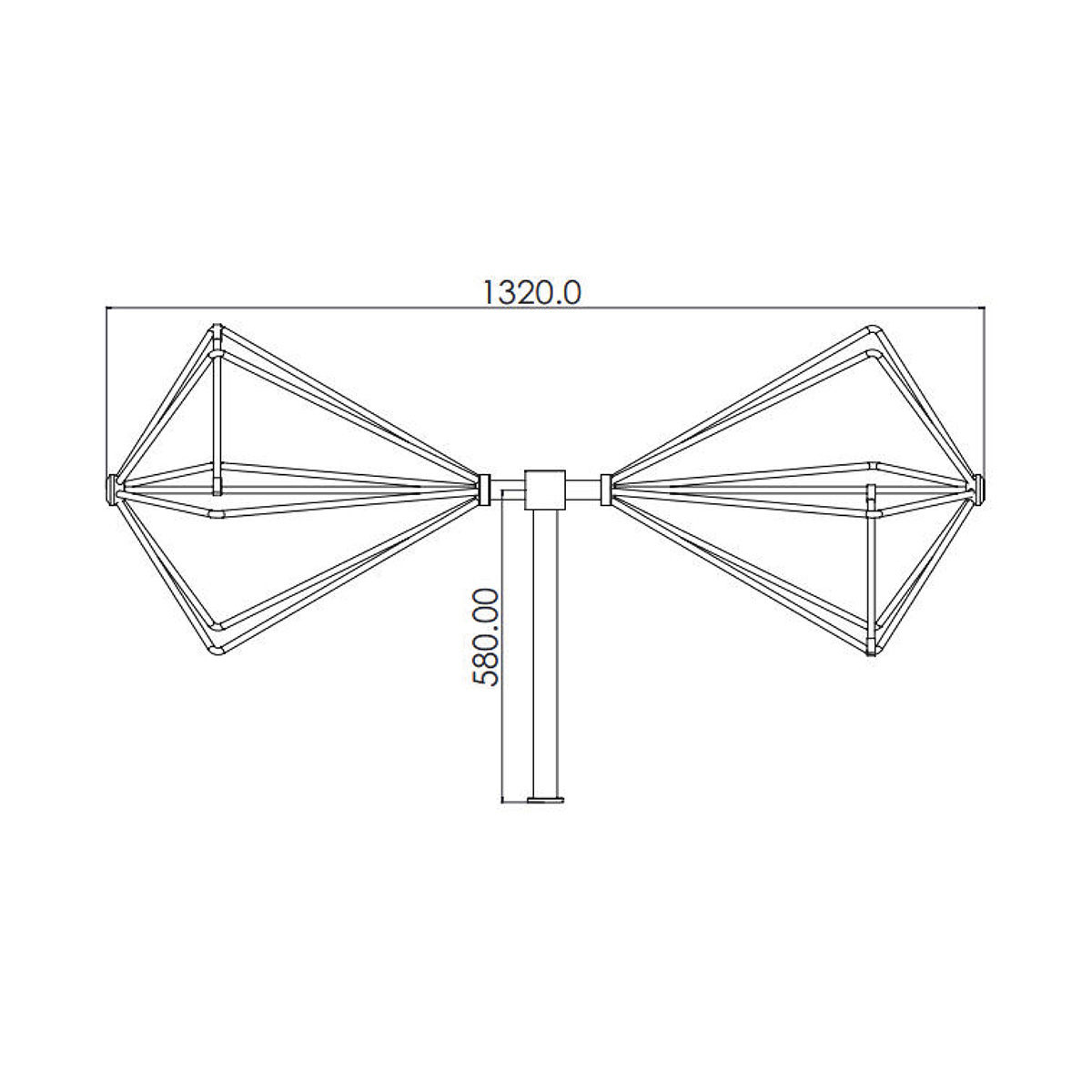

Length (mm): 1320
Balun Type’Transform.Ratio: 4:1
All specifications are subject to change without notice. All values are typical, unless specified.
